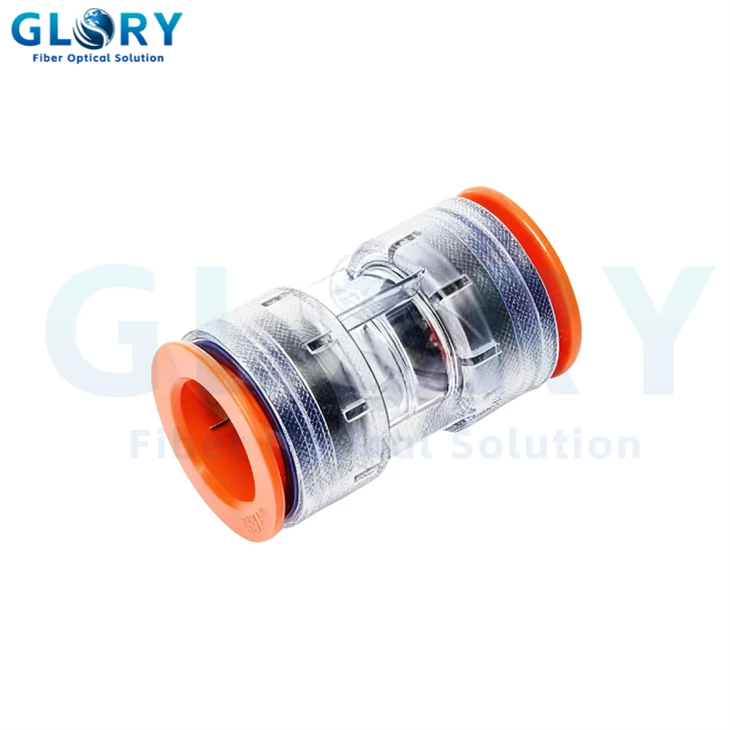

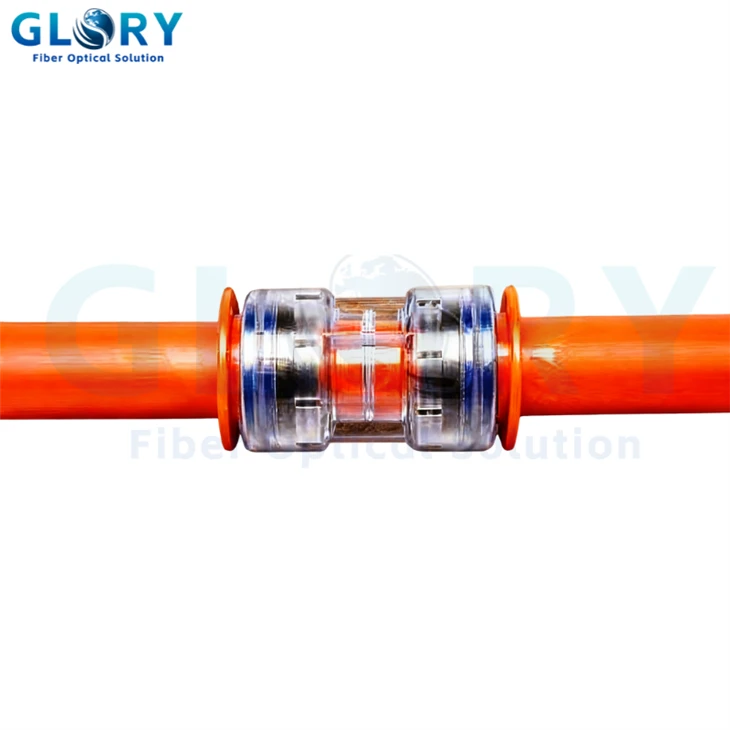

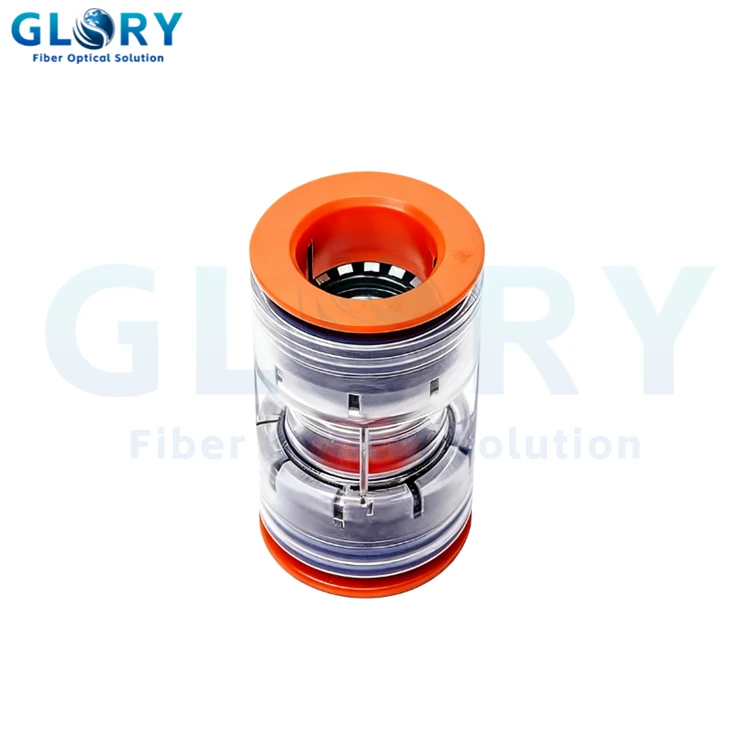

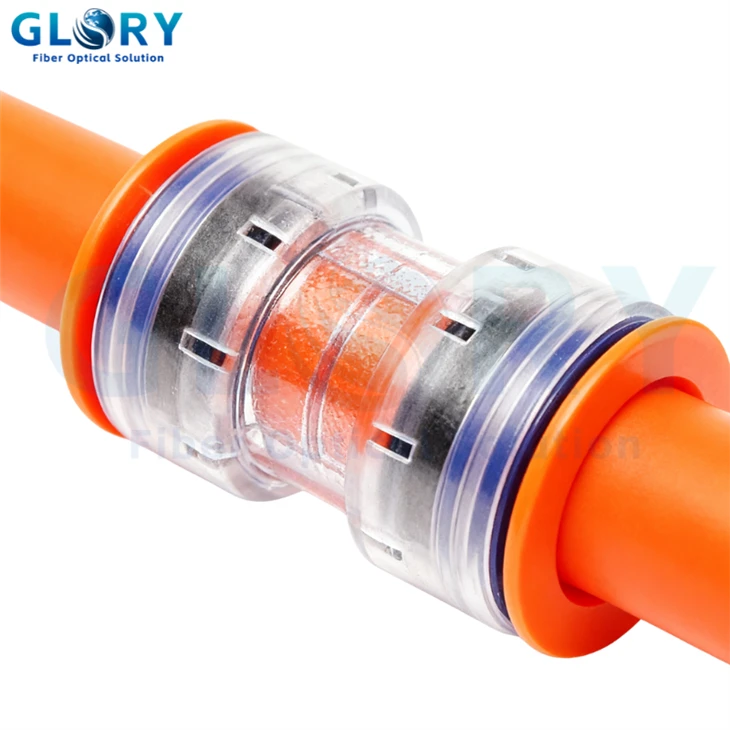

Micro Duct Coupler
Model:Micro Duct Coupler
Excellent stay ability.
Soft material cushions cable ends.
Resistant to acids, alkalis and salts.
For use on ducts of 5mm up to 20mm.
Flexible, easily adaptable, does not crack.
- Product Introduction
Product Overview
The 27mm Micro Duct Coupler is designed to provide seamless and robust connections in fiber optic infrastructure, greatly simplifying the installation and maintenance procedures of telecommunications networks. This coupler is made of high-density polyethylene (HDPE) and meets the established industry standards for mechanical integrity and environmental tolerance, making it highly suitable for various deployments in both aerial and underground environments.
Key Features
Tool-Less Push-In Installation
Designed for exceptional ease of use, significantly reducing installation time and labor costs
Crystal Clear Transparency
The transparent housing allows for visual inspection to confirm microduct and cable presence, preventing errors
Enhanced Safety (LSZH Material)
onstructed from eco-friendly, flame-retardant Low Smoke Zero Halogen material, complying with UL94 V-0 standards for superior fire safety in indoor environments
Secure Locking Mechanism
Integrated locking rings prevent accidental disconnection, guaranteeing a stable and reliable link
Wide Compatibility
Effortlessly connects microducts within the 5mm to 14mm diameter range
Rigorous Certification
Tested and certified in accordance with EN 50411-2-8:2009 for performance and reliability. Also complies with ROHS and REACH environmental standards
Industry application scenarios and solutions

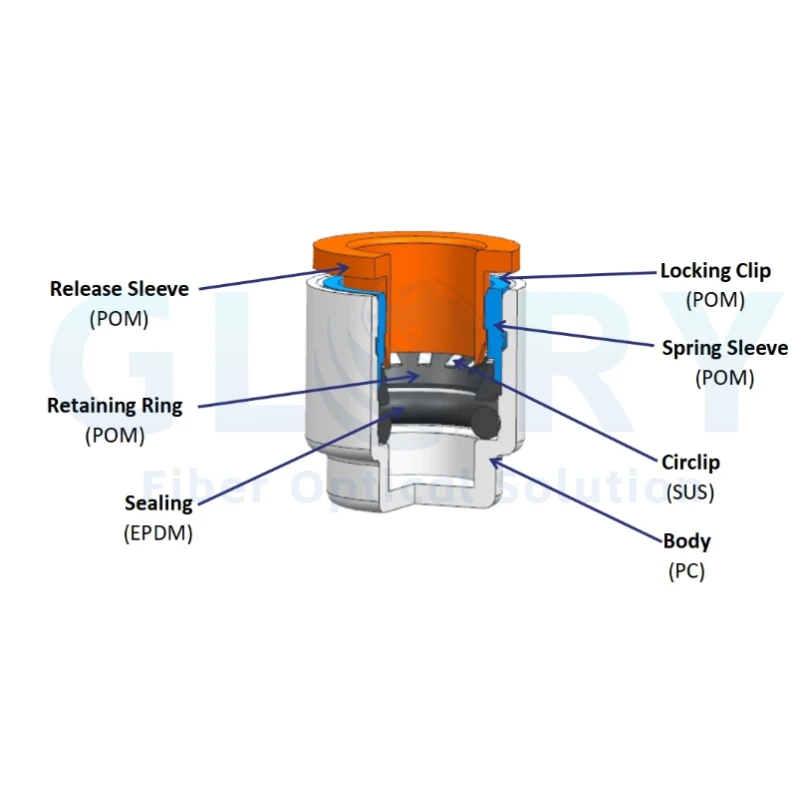

Structure
Product Specifications
|
Construction |
Description |
|
Material |
PVC |
|
Inner Diameter |
5,6,7,8,10,12,14,16,18,20mm,customized |
|
Colour |
Black, Red,customized |
This Micro Duct Coupler operates within a temperature range of -45°C to +50°C and is tested to endure mechanical stress, including impact resistance (15 joules). It supports air-assisted cable blowing systems and is certified under RoHS, REACH, and IEC standards. The product's reinforced structure enables direct burial (DB) applications, while locking rings prevent accidental disconnection. With a service life of 25 years, it ensures sustainable performance in FTTH and ODN networks.
