Optitap Waterproof Patch Cord



Optitap Waterproof Patch Cord 4.5x9.8mm Diameter Flat Drop Cable Assembly



The Optitap Waterproof Patch Cord features a ruggedized flat drop cable profile (4.5x9.8mm diameter) for easy routing in tight spaces and high-density cabinets. Designed for demanding outdoor environments, its key strength is superior waterproofing, protecting critical fiber connections. This robust assembly delivers reliable performance for FTTH (Fiber-to-the-Home) networks, telecommunications infrastructure, and industrial applications where environmental sealing is essential.



Offering both durability and flexibility, this waterproof patch cord assembly ensures signal integrity in exposed installations. The compact, flat cable minimizes bending radius issues and enables efficient cable management. Typically terminated with single-mode fiber and connector options like SC/UPC, it simplifies deployments in aerial, underground, or direct-buried scenarios. Ideal for extending service provider networks to customer premises with dependable, weatherproof connectivity.



Toneable Flat Drop Cable Specifications：



Tone Wire	AWG	24
	Dimension	0.5mm
	Material	Copper
Fiber Count		1~12Fibers
Colored Coating Fiber	Dimension	250 + 15μm
	Color	Standard color
Buffer Tube	Dimension	2.0±0.1mm
	Material	PBT and GEL
	Color	White
Strength member	Dimension	1.5±0.2mm
	Material	FRP
Outer Jacket	Diameter 1	4.5*8.0 (±0.3) mm (Without Toneable wire)
	Diameter 2	4.5*8.0*9.8 (±0.3) mm (With Tuneable wire)
	Material	PE
	Color	Black

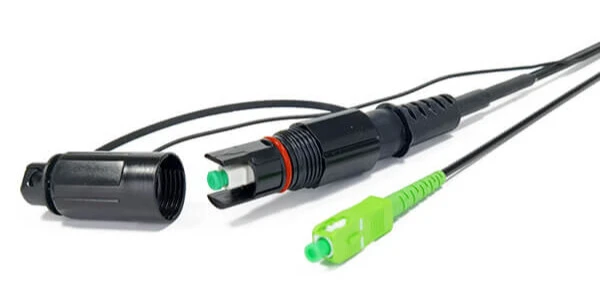

Toneable OptiTap SC/APC Flat Drop Cable Assembly Specifications:



Product Name	Tuneable OptiTap SCA to SC/APC Optitap Waterproof Patch Cord, 1FO SM G657.A2, Black PE Jacket;
Connector A	IP67 OptiTap SC/APC Waterproof connector
Connector B	Normal SC/APC Connector
Drop Cable	Flat Drop cable of 4.5*8.0*9.8mm with Tone wire
Fiber Type	1FO SM G657.A2
Jacket & Color	Black PE Jacket
Insertion Loss	SC/APC ≤0,3dB
Return Loss	SC/APC ≥60dB
Installation	Indoor / Outdoor
Application	Aerial, Direct Buried, Duct
Standard	Telcordia GR-20 and designed to GR-3120



Features of Optitap Waterproof Patch Cord:



• Uses a flat 4.5mm x 9.8mm cable for tight spaces like ducts, wall entries, or under carpets. Employs bend-insensitive fiber (G.657.A1/A2) for stable performance around corners.

• ​​Waterproof Optitap connectors. Their metal housing with threaded nut provides tool-less, push-pull locking. Built-in seals prevent moisture ingress. ​​• Ensures low insertion loss and high return loss, meeting standards for efficient transmission.

• Rugged outdoor-rated cable: weatherproof jacket for UV, abrasion protection, plus a strength member (FRP/steel) for tension and rodent resistance.

• Available in SM (G.652D) or MM (OM1-5) fiber. Typically uses SC/APC or SC/UPC with Optitap plugs. A quick-connect solution for FTTx drop applications.



FAQs:



Q: Is this waterproof patch cord compatible with standard Optitap ports?​​
​​A: Yes, absolutely.​​ The Optitap connector end is designed to plug directly into standard Optitap receptacles found on OLTs, distribution hubs, splitters, or wall-mounted terminals from major manufacturers (like CommScope, Corning, AFL, etc.), ensuring a secure, low-loss optical connection.



Q: What is the typical length available for these assemblies?​​
​​A:​​ These patch cords are available in various fixed lengths, commonly ranging from ​​1 meter (1m) up to 10 meters (10m)​​ or more. Specific lengths are often offered to suit common cabinet/cross-connect distances. Custom lengths are usually available upon request.
