12 Cores MTP MPO -LC  Singlemode 3.0mm Fiber Breakout Cable

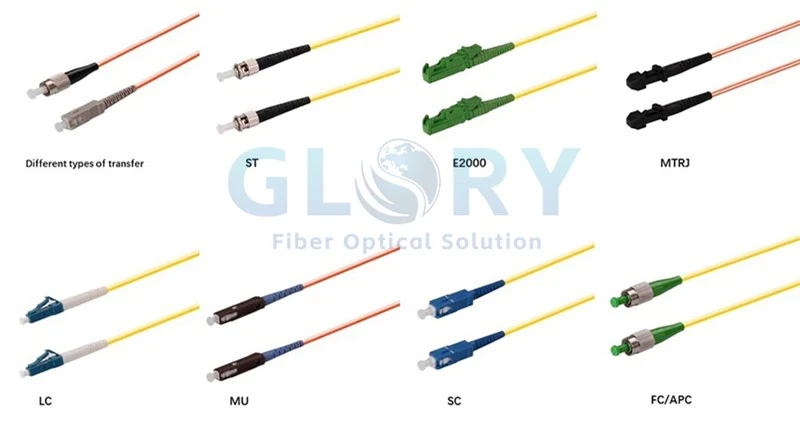

MTP/MPO Harness Cable​​, also called ​​MTP/MPO breakout cable​​ or ​​MTP/MPO fan-out cable​​, is a fiber optic cable terminated with MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors (typically MTP to LC) on the other end. The main cable is usually a 3.0mm LSZH round cable, with breakout cables measuring 2.0mm in diameter. Both female and male MPO/MTP connectors are available, with male connectors featuring alignment pins.  Our MPO/MTP fiber patch cables comply with ​​IEC-61754-7​​ and ​​TIA-604-5​​ standards and are available in both Standard and Elite types. For cable jackets, we offer 3.0mm round cables, flat-jacketed ribbon cables, or bare ribbon MTP cables.



MTP MPO Fiber Breakout Cable​​ are designed for high-density applications that demand high performance and rapid installation, meeting diverse fiber cabling requirements.



Specifications:



Type	Single Mode		Single Mode		Multi Mode
	(APC Polish)		(UPC Polish)		(PC Polish)
Fiber Count	8,12,24 etc.		8,12,24 etc.		8,12,24 etc.
Fiber Type	G652D, G657A1 etc.		G652D, G657A1 etc.		OM1, OM2,OM3 etc.
Maximum Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
	Low Loss		Low Loss		Low Loss
	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.60dB
Return Loss	≥60 dB		≥60 dB		NA
Durability	≥500 times		≥500 times		≥500 times
Operating Temperature	-40℃ ~ +80℃		-40℃ ~ +80℃		-40℃ ~ +80℃
Test Wavelength	1310nm		1310nm		1310nm

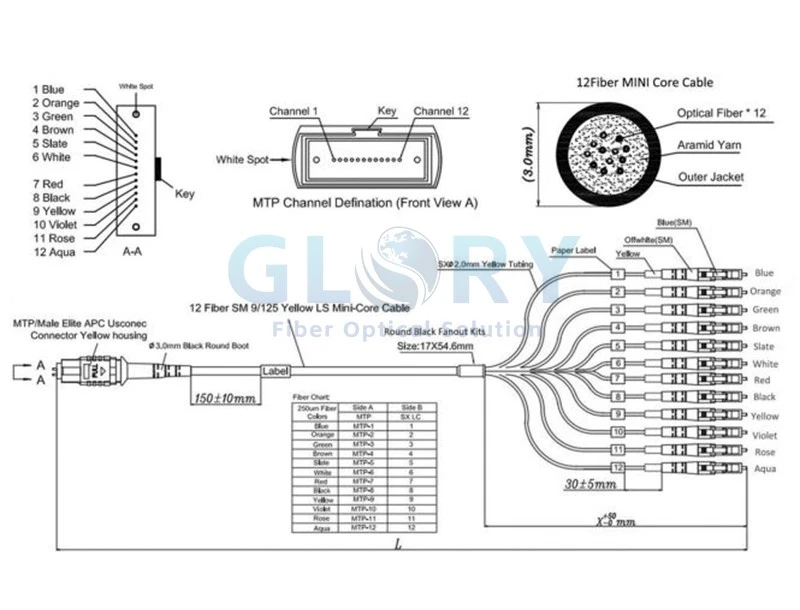

Below 12Core MTP/APC-LC Breakout 3.0mm Patch Cables spec as reference. MTP Connector is Male Elite APC Usconec Connector Yellow housing, Cable is 12 fiber Singlemode Mini Core cable, Round Fan-out Kits, Breakout 2.0mm. Inside fiber color from 1~12 is Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua.

Features:



• A single MTP/MPO connector on one end that breaks out into 4/6LC connectors

• Designed to save front panel space and streamline fiber management

• Support use in attaching directly to 40G transceivers

• Insertion loss less or equal to 0.75dB

• Return loss: MTP/MPO>=55dB, LC>=50dB

• Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard

• Operating temperature: -40℃~80℃



Applications:



Mtp Mpo Fiber Breakout Cable is the high dense degree of optical fiber pre-connect system, which is generally use in three areas.

•The Data Center application with high dense degree environment

•The optical fiber to the building

•The internal connector application in fiber equipment.



Purchase Guide:



1 Choose the type of connector you need.

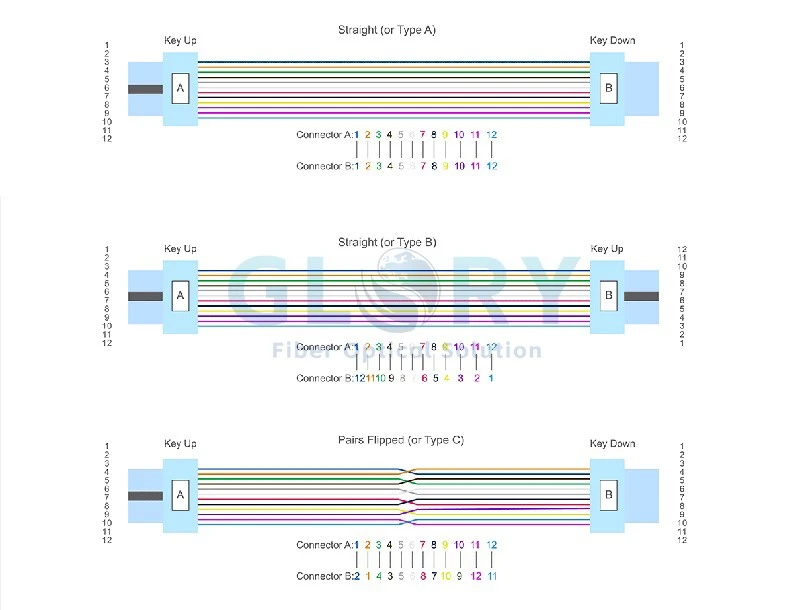

2 The three polarity methods Type A, Type B, and Type C are used to guarantee the right bi-directional allocation.

Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MTP LGX Cassette, you can choose any of the polarities as you need.

3 Cable color can be customized.
