MTP Fiber Optic Cable
Item: MTP Fiber Optic Cable

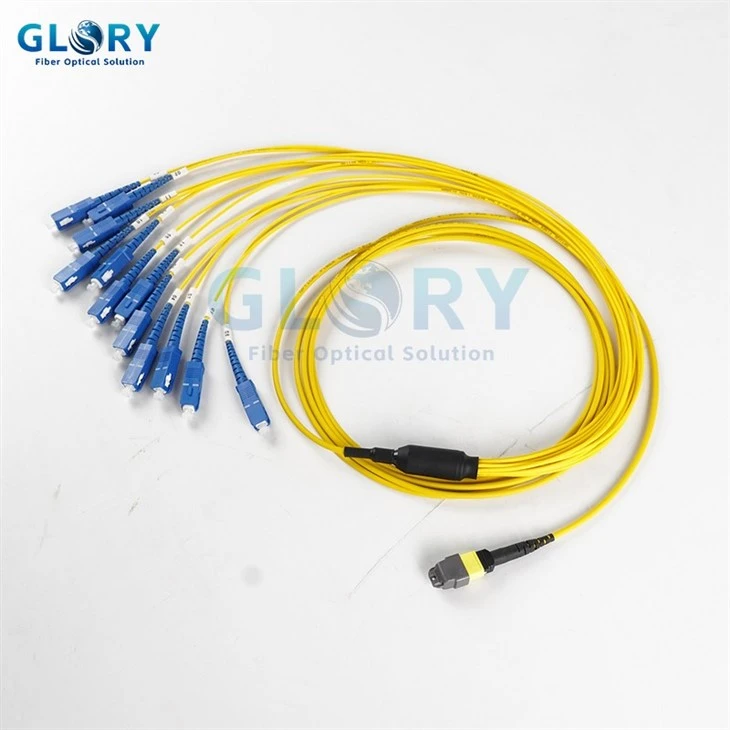

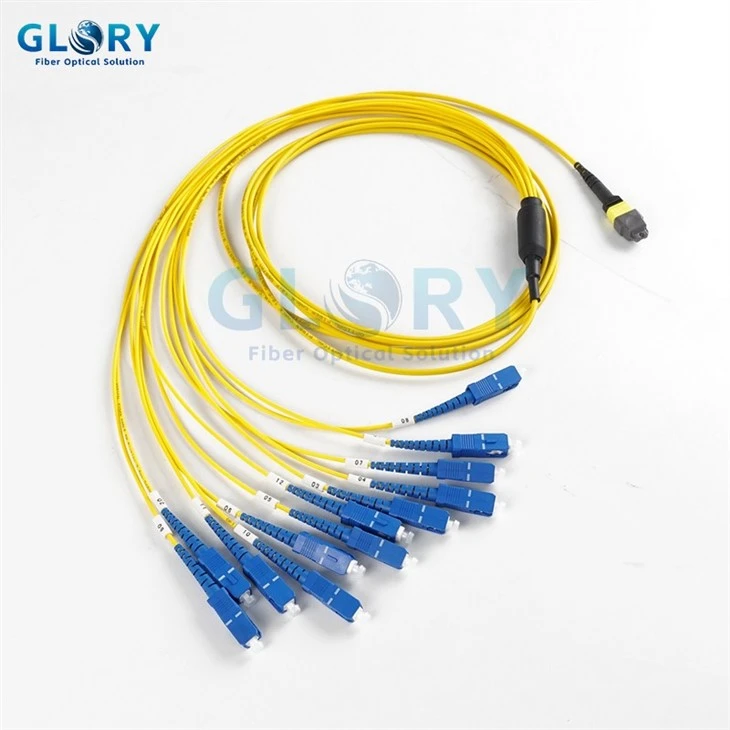

Model: MPO to SC/UPC 12 Fibers SM LSZH Elite Breakout Cable

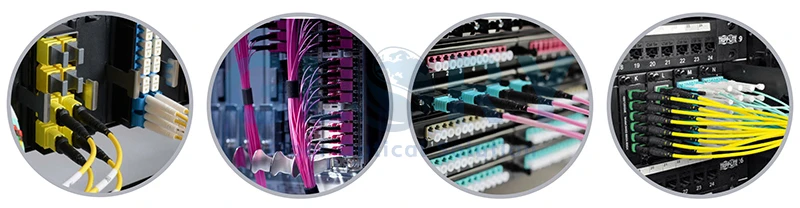

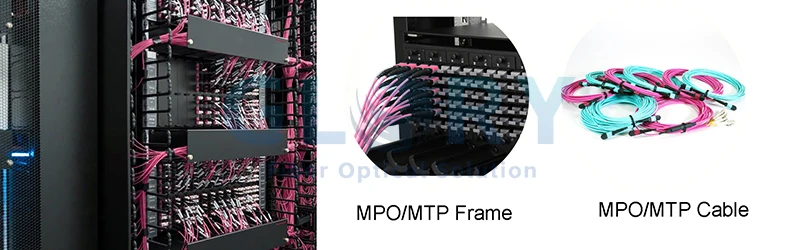

MPO/ MTP products are optimized for high-density wiring systems in data center, FTTH, and connection with splitters, modules like 40G/ 100G QSFP+, SFP+… It’s deals for space saving and reducing cable management troubles.
- Product Introduction
With development of 5G, connections between data centers, fiber sensing, and new technology of fiber, transferring networks of ultra-large capacity, ultra-high speed and ultra-long transferring distance will be essential factors for 5G. MPO/ MTP Fiber Optic Cable will be the main role.
The fiber trunks are made of MTP and MPO in 12 fibers connectors interface to ST, SC, FC, LC connectors. The fan out cable features in space and time-saving. With the pull eyes function, it can save more time on installation efficiently, and make it more professional. We provide complete solution of high density MTP and MPO multi-fiber connectors products for high-speed broadband and data networks. Different fan-out length and cable length available on request.

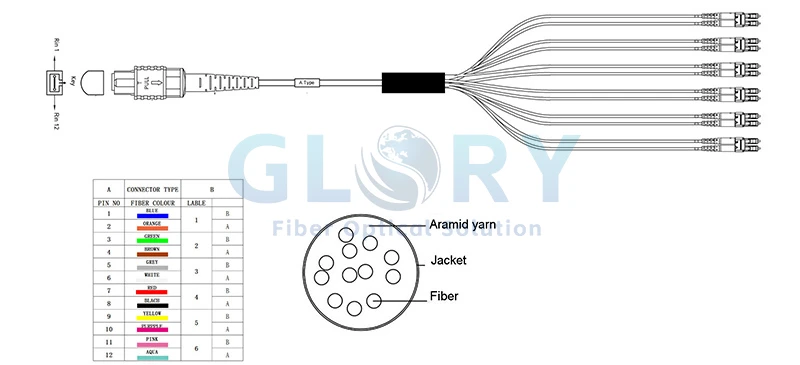

MTP/MPO Fiber Optic Cable breakouts are equipped with MTP or MPO connectors on one end and SC fan-out connections on the other, it contains a relatively narrow micron core, but carry higher bandwidth.
MPO MTP Fiber Optic Cable Features

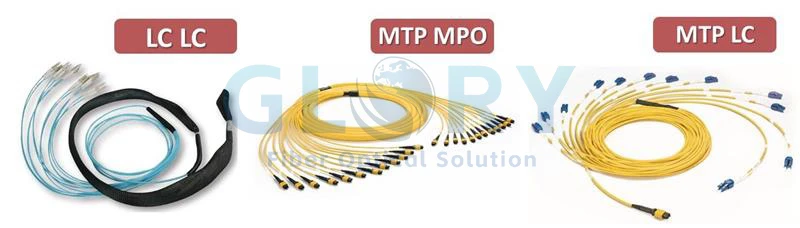

- Available in ST, SC, FC, LC, MTP and MPO in forms of simplex channeling.
- Support Method A, B, C and option for male and female MTP / MPO.
- 24-inch (60.96cm) fanout length at one end and by asymmetric cascade version.
- Further assemblies, fanout length, and cable length are available on request.
Specification
|
Connector A |
MPO |
Connector B |
SC |
|
Cable diameter |
3.0mm±2 |
Connector type |
MPO/Female |
|
Fiber count |
12 fibers |
Wavelength |
1310nm&1550nm |
|
Insertion loss |
≤0.35dB |
Return loss |
≥60dB |
|
Polarity |
A |
Mating time |
≥500 times |
|
Fiber type |
SM |
Cable jacket |
LSZH |
|
Storage temperature |
-40~85℃ |
Working temperature |
-40~85℃ |
