MPO 12 Breakout Cable

Model: 12 Fiber MPO-6LC Duplex OM3 Multi-mode Fiber Optic Harness Fan-out/Breakout Cable
• Connector: MPO-LC
• Fiber Type: MM

Send Inquiry

Product Introduction

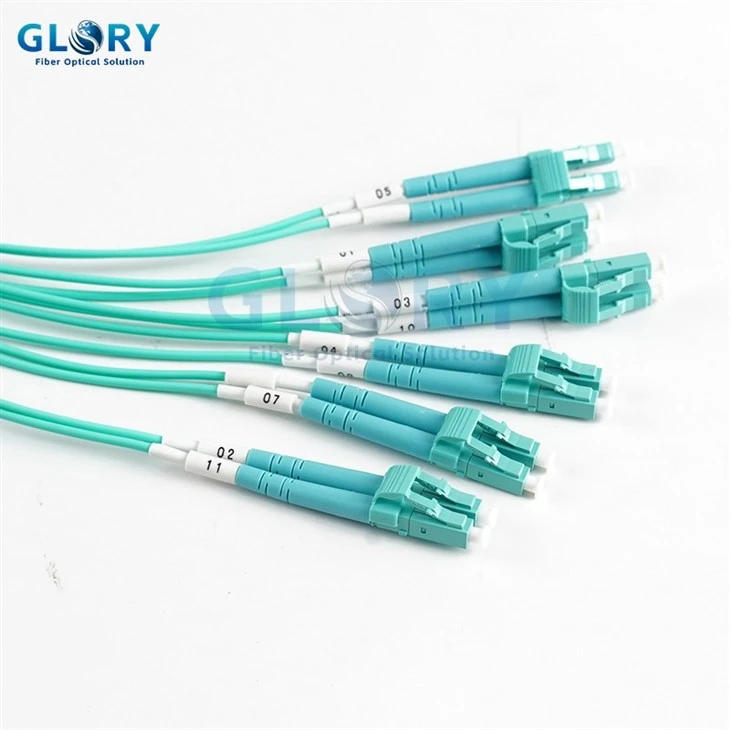

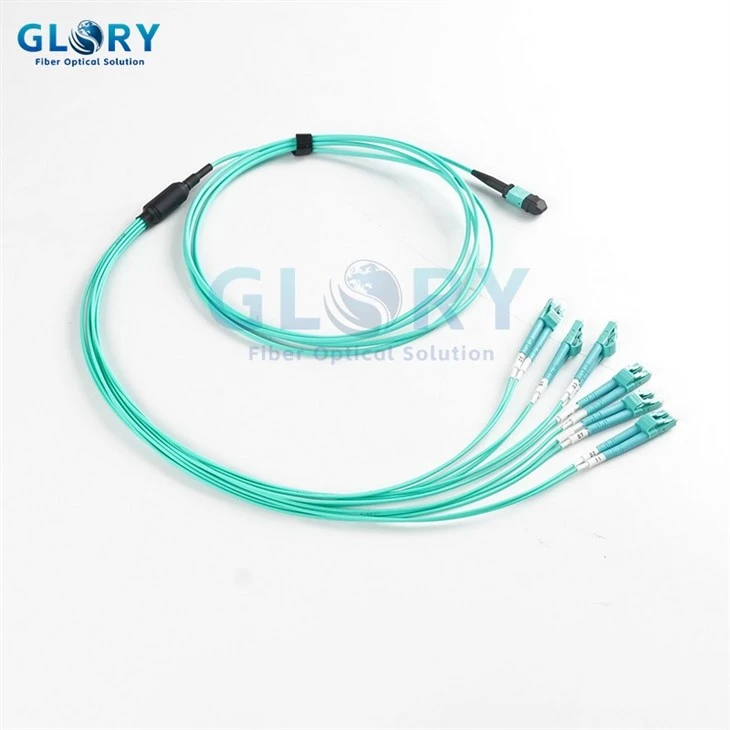

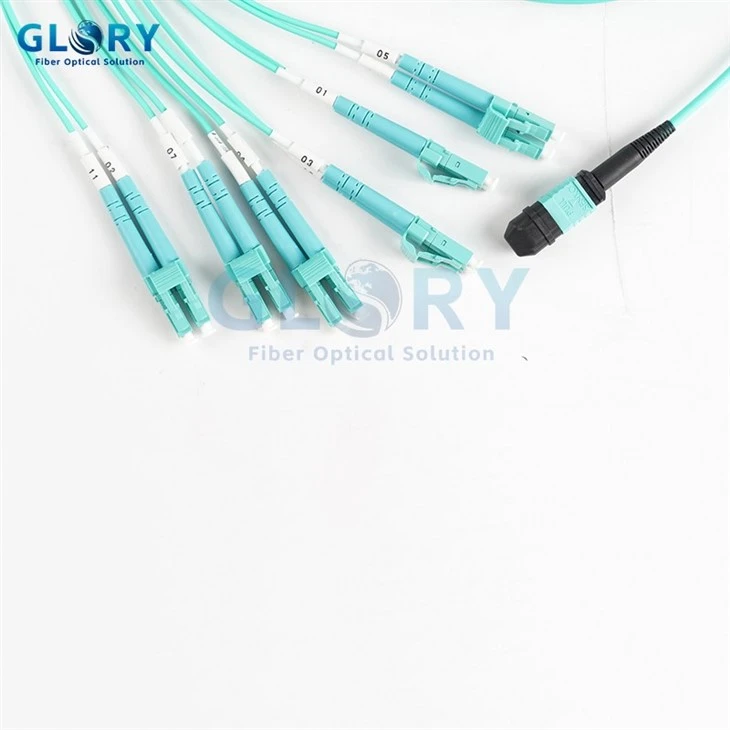

12 Fiber MPO-6LC Duplex OM3 Multi-mode Fiber Optic Fan-out Cable

MPO to LC 12 Breakout cables are ideal for high-density fiber networks. They're specifically designed for Fast Ethernet, Fiber Channel, data center, and Gigabit Ethernet applications. This 12-fiber harness cable is used for connecting six SFP+ modules to an MPO adapter panel or MPO trunk.

Please note: Glory Optical's MTP connectors are fully compliant with MPO standards, achieving higher performance levels than generic MPO connectors.

Specifications:

Connector A	MPO (Female)	Connector B	LC UPC (6)
Fiber Mode	50/125μm OM3	Cable Diameter	3.0mm
Fiber Count	12	Wavelength	850nm
Breakout Length	0.5m	Fiber Type	Duplex
Cable Jacket	PVC	Insertion Loss	≤0.6dB
Jacket Color	Aqua	Return Loss	MTP≥20 dB, LC≥30dB
Operate Temperature	-40~75°C	Durability	≥500 times

Features of MPO 12 Breakout Cable:

• A single MPO connector on one end that breaks out into 4LC connectors

• Designed to save front panel space and streamline fiber management

• Support use in attaching directly to 40G transceivers

• Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard

Applications for MPO 12 Breakout Cable:

• Data Centers with High Density Requirement
• Fiber Channel Storage
• Parallel Processing Applications
• Telecommunications and Backbone Installations

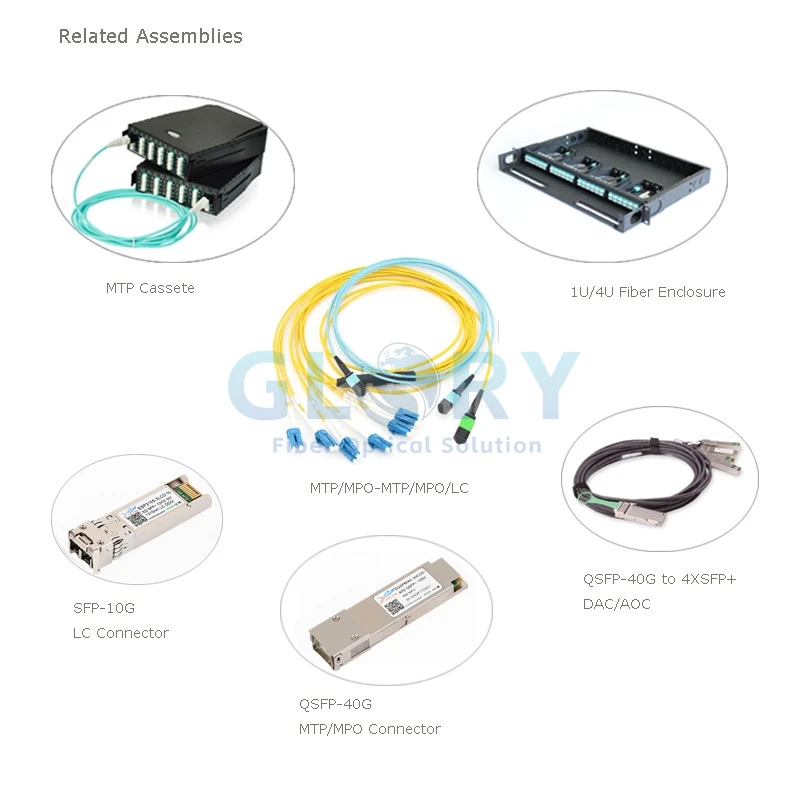

MPO 12 Breakout Cable application

FAQs:

Q: How to choose correctly the cable jacket: PVC, LSZH or OFNP?

A: Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks, campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
The features of PVC, LSZH and OFNP Jacket are as follows:
• PVC cable resistant to oxidation and degradation, it is commonly used for horizontal runs from the wiring center.
• LSZH cable has a special flam-retardant coating, it is between floors in a building.
• OFNP cable is space within the building created by building components, design for the movement of air. It is usually work for vertical runs between floors.

Q: How to choose the right fiber optic cable type on OM3 or OM4?

A: The difference of OM4 and OM3 fiber mode as the following:
• OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
• The effective modal bandwidth for OM4 is more than double that of OM3.
• For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
