Single Mode Fiber Patch Cord

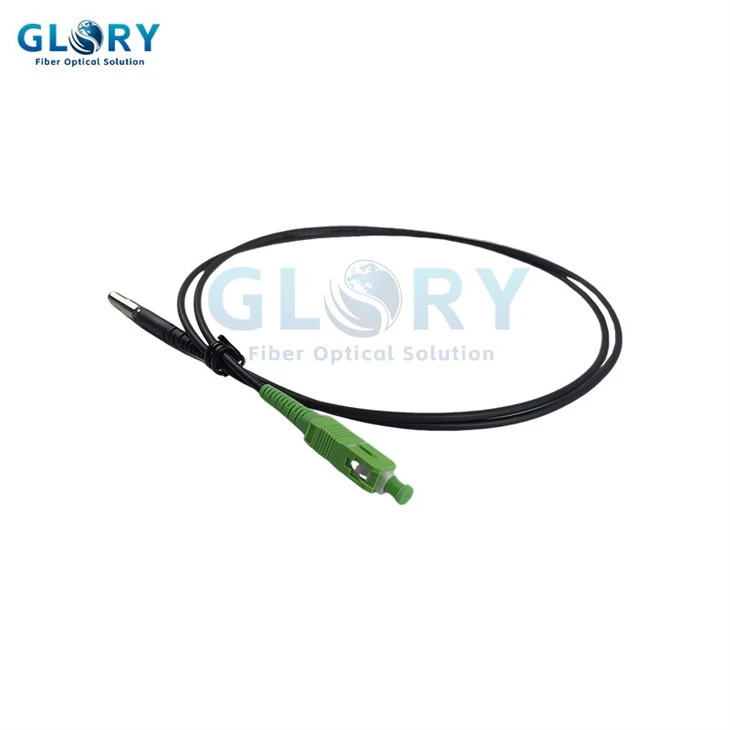

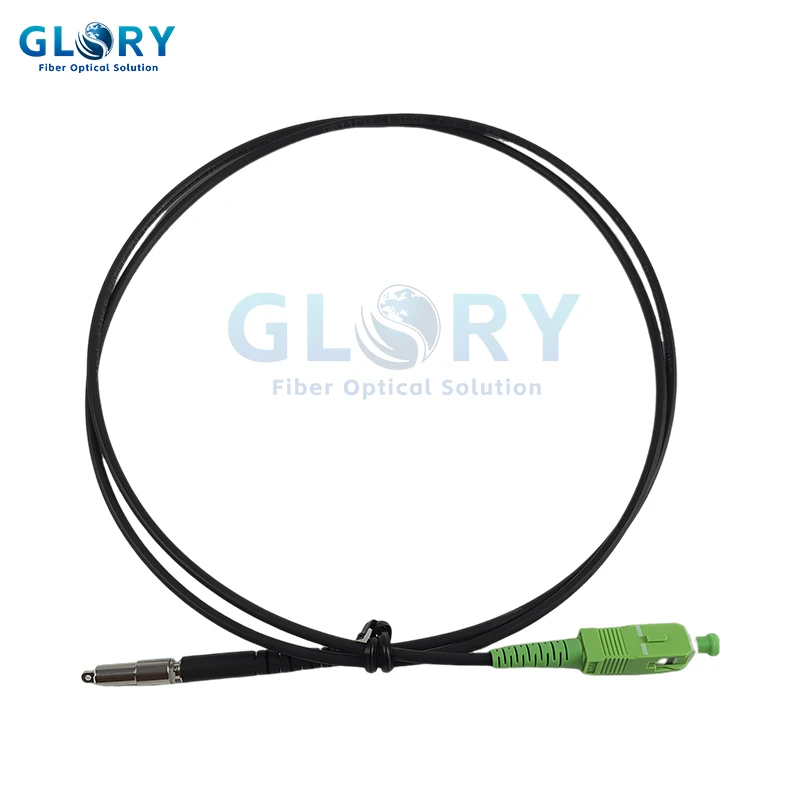

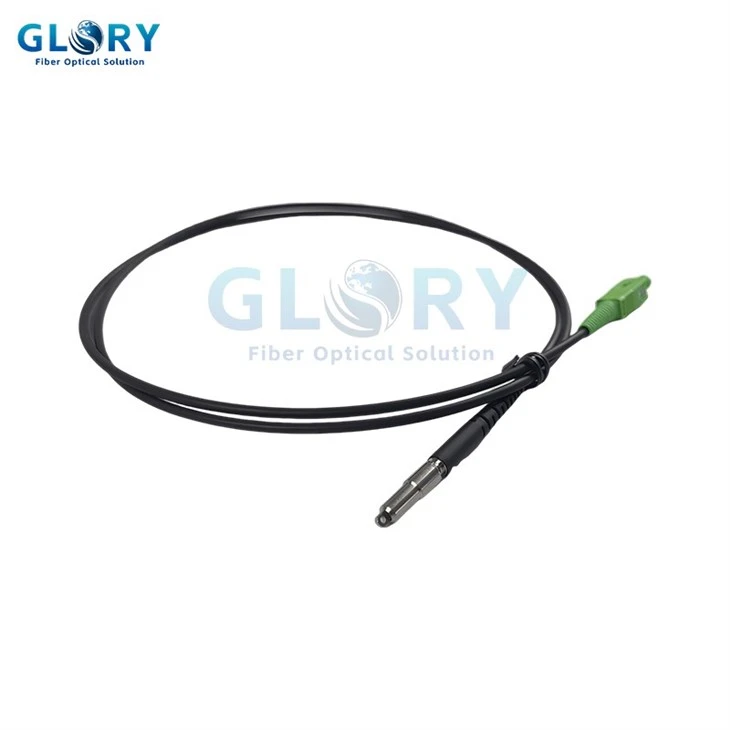

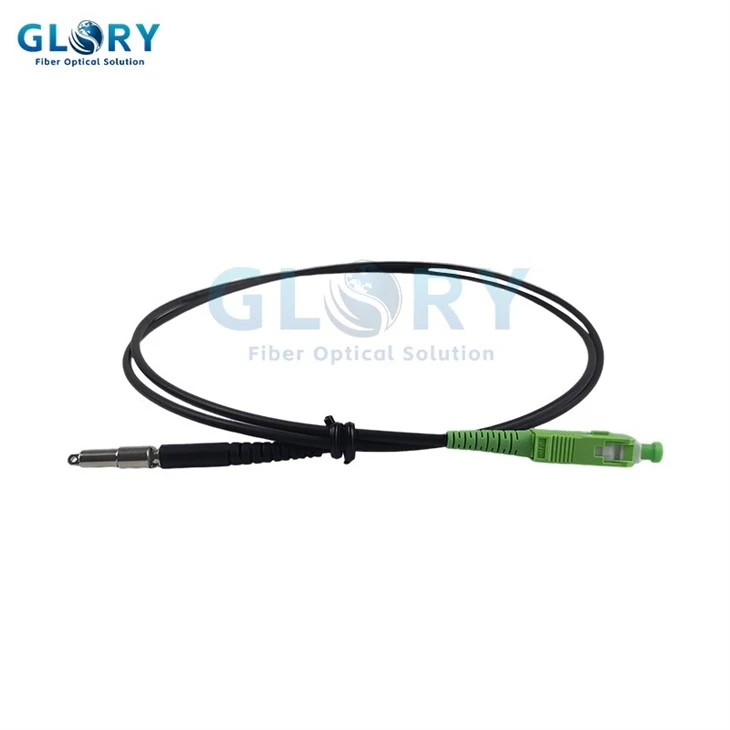

Model: MTC Pushable Single Mode Fiber Patch Cord SC/APC Field-Terminated Push-Pull Type
Push fiber directly to your desired distribution or drop point, reducing the cost of "last mile" broadband deployment efficiently.
- Product Introduction
Flexible MTC/SC Fiber Pullable Pushable Single Mode Fiber Patch Cord
Bullet-Pushable cable assemblies enable users to push or pull specially designed, hardened fiber cable assemblies through a series of ruggedized micro-ducts, delivering fiber to even the most challenging environments. Fiber can be buried using the simplest and least invasive trenching techniques, as well as run directly up a cell tower, while being fully protected from the harshest elements.

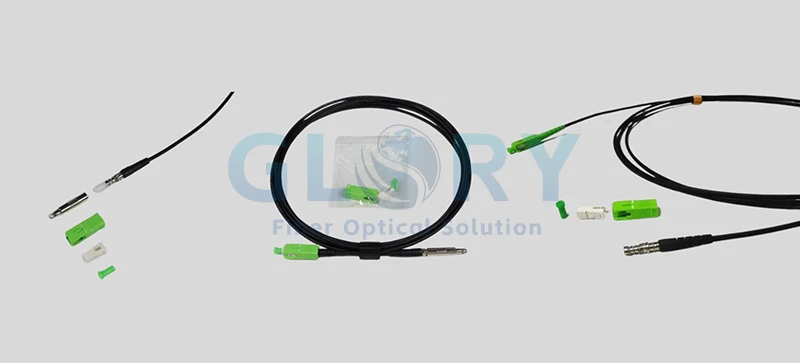

Flexible MTC/SC Pushable/Pullable Fiber Cable Assemblies are a type of Single Mode Fiber Patch Cord. They offer a flexible, pushable, pre-terminated fiber optic drop solution for fast and reliable FTTX deployments.
This bullet-pushable assembly can be successfully pushed through small holes and micro-ducts. Hand-push distances vary according to the number of bends and duct quality. The rugged round drop cable with its pushable, pre-terminated connector reduces the cost of fiber deployments, as well as the inherent skill level required and difficulty associated with handling and connecting customer drop cables.
Features:
• Terminations designed and tested to Telcordia GR-326
• Decreased deployment times and reduced installation costs by eliminating in-field splicing.
• Tool-less installation; wall protective sleeve can be easily removed and outer housing snaps into place.
• Guaranteed insertion loss and return loss.
• REACH & RoHS compliant.
Application of Flexible MTC/SC Pullable Pushable Single Mode Fiber Patch Cord :
• FTTH / FTTX – Indoor & outdoor drops
• Single and multi-dwelling units
• FTTP and campus networks
• Rural broadband
• DAS / FTTA
Specification:
|
Product Name |
Single Mode Fiber Patch Cord MTC Pushable Fiber Optic Patch Cord SC/APC Field shield fiber pathway Push-Pull Type |
|
Fiber Mode |
Single mode |
|
Fiber Count |
1 |
|
Polish or Ferrule Interface Type |
APC |
|
Connector A |
MTC SC APC |
|
Connector B |
SC APC |
|
Cable Lengths |
customized |
|
Jacket Materials |
Indoor/outdoor LSZH Material |
|
Outer Jacket Color |
Black or White |
|
Outer Jacket Diameter(mm) |
3.0mm or 2.0*5.0 Flat Drops |
|
Fiber Type |
G657A2 |
|
G657A2 |
0.9mm |
|
Inner cable Color |
Blue |
|
Storage Temperature |
-20°C to 60°C |
|
Installation Temperature |
-5°C to 50°C |
|
Operating Temperature |
-20°C to 60°C |
|
Crush(N/100mm) |
1000 |
|
Maximum Tensile Load (Long term) |
150N |
|
Minimum Tensile Load (Short term) |
400N |
Optical Performance Data:
|
Item |
Single Mode |
Multimode |
|||
|
UPC |
APC |
62.5/125 |
50/125 |
50/12510Gb |
|
|
Insert Loss(Single fiber) |
0.2dB Max.(0.15dB Typical) |
0.3dB Max.(0.25dB Typical) |
|||
|
Return Loss |
≥50 dB |
≥60 dB |
PC≥35dB |
||
|
Insert Loss/MTRJ Connector |
0.5dB Max.(0.45dB Typical) |
0.5dB Max. (0.45dB typ.) |
|||
|
Pull Strength |
≥98N |
≥98N |
|||
More pictures:
