Simplex Fiber Patch Cord

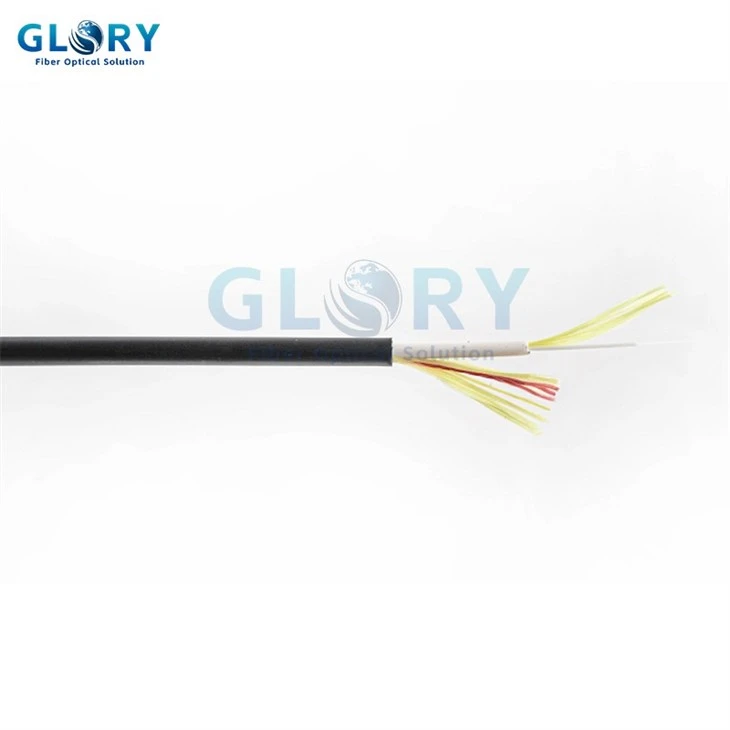

Model: FTTH Pre-terminated Exterior/Interior Connection Simplex Fiber Patch Cord SC/APC 4.8mm G657A2 LSZH
The connector is pre-terminated at the factory, so the link loss can be lower than that of traditional deployment methods. This enhances the stability and reliability of the optical link while reducing implementation time and cost.
- Product Introduction

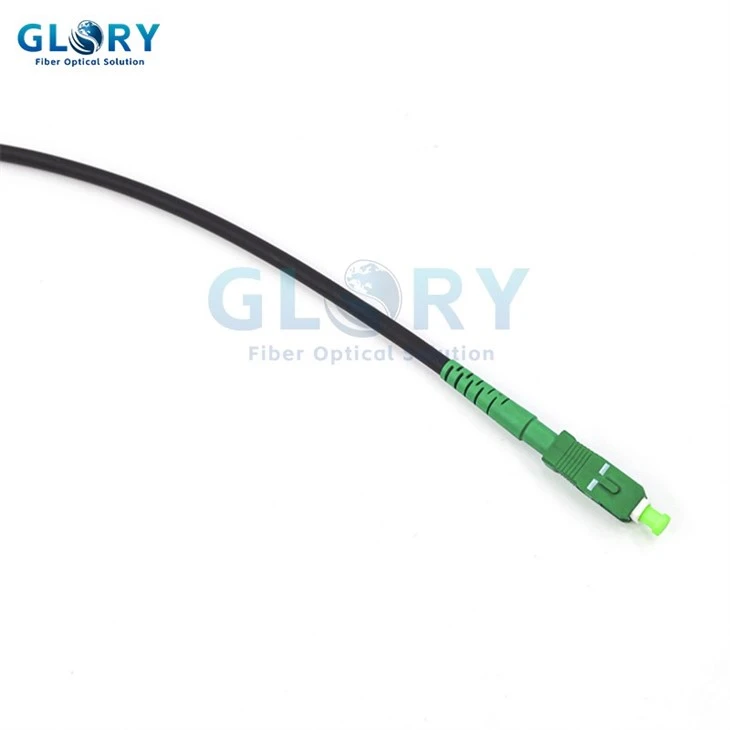

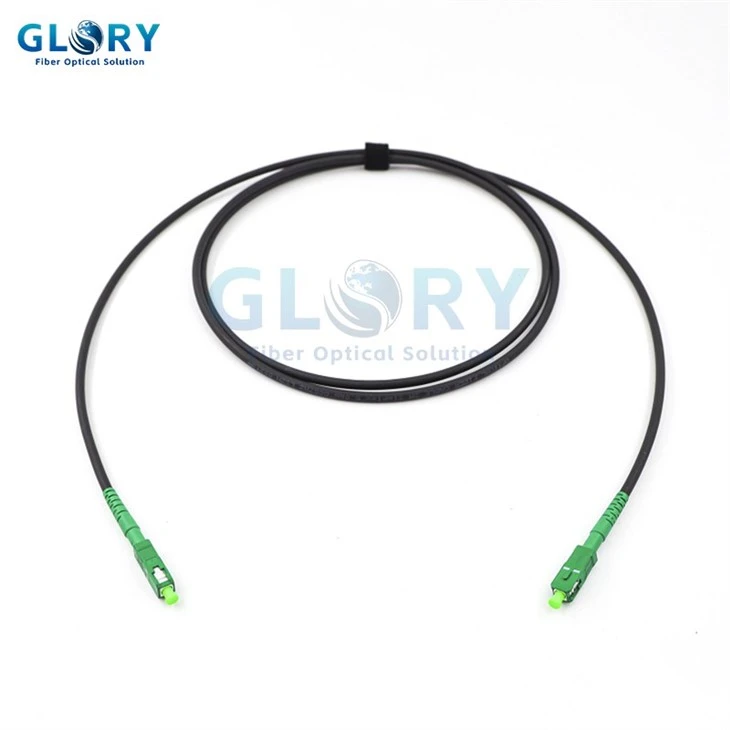

SC Simplex FTTH Fiber Patch Cord
Simplex Fiber Patch Cords are used to provide optical connections for fiber optic electronic devices. These patch cords offer a quick and easy method for routing fiber connections in data centers, head-ends, cellular hubs, and central offices. Simplex Fiber Patch Cords can be used in either interconnect or cross-connect paths, connecting incoming fibers to electronic equipment and enabling patching within fiber pathways. Patch cord assemblies include simplex, duplex, and multi-fiber configurations.
As today's networking environments become increasingly reliant on high-speed, high-density solutions, effective cable management has become a critical concern. The primary challenge lies in managing more cabling within increasingly limited space.
Specifications:
|
Item |
Parameters |
|
Side A |
SCAPC 4.8mm |
|
Side B |
SCAPC 4.8mm/None |
|
Insertion Loss (dB) |
Typical <0.15, Max<0.3 |
|
Return Loss (dB) |
>60 |
|
Pulling Force of Connector |
80N |
|
Flame Retardant Rating |
UL94 V-0 |
|
Operation Temperature |
-40~+70℃ |

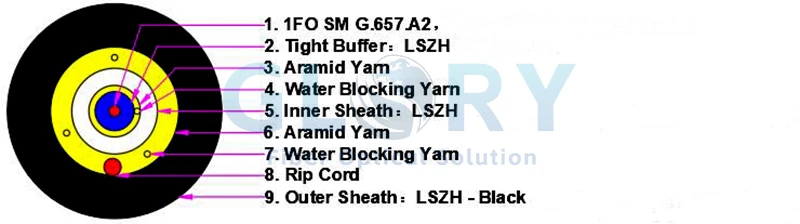

Fiber Optic Cable Cross-section
|
Item |
Contents |
Value |
|
Colored Fiber |
Optical fiber properties |
G657A2 |
|
Colored |
Blue |
|
|
Fiber no. |
1 |
|
|
Tight buffered fiber |
Material |
LSZH |
|
Color |
Blue |
|
|
Diameter(mm) |
0.90 ± 0.05 |
|
|
Inner cable |
Material |
LSZH |
|
Color |
White |
|
|
Strength Member |
Yellow Aramid Yarn |
|
|
Outer diameter(mm) |
3.0 ± 0.1 |
|
|
Thickness(mm) |
0.4±0.05 |
|
|
Strength member |
Material |
Yellow Aramid Yarns or Glass Yarns |
|
Ripcord |
Breaking force(N) |
≤130 |
|
Colored |
Red |
|
|
Outer jacket |
Material |
LSZH |
|
Color |
Black |
|
|
Outer diameter(mm) |
4.6± 0.1 |
|
|
Thickness(mm) |
0.6± 0.1 |
|
|
Cable weight(kg/km) |
30 ± 5 |
|
|
Environment requirements (Installation) |
0℃ to 40℃ |
|
|
Environment requirements (Operation) |
-10℃ to 60℃ |
|
Features for Simplex Fiber Patch Cord:
• Cost-effective
• Full-duplex capability in a single 3mm diameter cable
• Available in OM3, OM4, OS1/OS2 (ITU-T G.652D or G.657A1), or ITU-T G.657A2 cabled fiber types
• Available with LSZH, Plenum, and Riser-rated cables
• Saves 50% of space in cabinets and cableways
• Maintains network polarity
• Clean and scratch-free end-face
• Proportional geometric testing is applied during standard production
• 100% interferometer checks are available for special requirements
Applications:
• Fiber CATV
Simplex fiber patch cords are essential in Fiber CATV (Community Antenna Television) systems for transmitting high-bandwidth RF signals over long distances. They connect headend equipment to optical nodes, ensuring minimal signal loss and interference for reliable video, audio, and data delivery. Their single-fiber design simplifies installations in hybrid fiber-coaxial networks, supporting high-definition content and broadband services with consistent performance.
• Fiber Cabling System
In structured fiber cabling systems, simplex patch cords provide point-to-point connectivity between panels, switches, and devices. They enable efficient cross-connections in data centers or enterprise networks, optimizing space with their slim design. These cords are ideal for short-distance links, maintaining signal integrity in high-density environments. Their durable construction ensures reliability in both indoor and outdoor installations.
• LAN (Local Area Network)
Simplex fiber patch cords enhance LANs by enabling high-speed interconnections between switches, routers, and servers. They support Gigabit Ethernet and higher protocols, minimizing latency and data loss in office or campus networks. Their single-mode or multimode variants cater to varying distance requirements, while compact connectors like LC or SC simplify rack management. This ensures scalable, future-proof network infrastructure.
• FTTH (Fiber-to-the-Home)
For FTTH deployments, simplex patch cords connect optical distribution frames (ODFs) to customer premises equipment, delivering ultra-high-speed internet and IPTV services. Their flexibility and low attenuation suit tight residential installations, while ruggedized options withstand environmental stress. These fiber patch cords enable seamless last-mile connectivity, ensuring end-users experience reliable broadband access with minimal signal degradation.
