Lc To Lc Fiber Patch Cable

Item: LC To LC Fiber Patch Cable
Model: Armored LC/UPC-LC/UPC G657A1 SM simplex 3.0mm LSZH 1m
• PVC/LSZH Flame-retardant Jacket with Tight-buffered Coating on Each Optical Fiber
• Available with LC, SC, FC, ST Connectors
• Stainless Steel Tube Provides Additional Crush and Rodent Protection
• Optical Testing Guarantees Insertion Loss and Returns Loss
• Support Both Fusion and Mechanical Splicing for Fiber Cabling System

Send Inquiry

Product Introduction

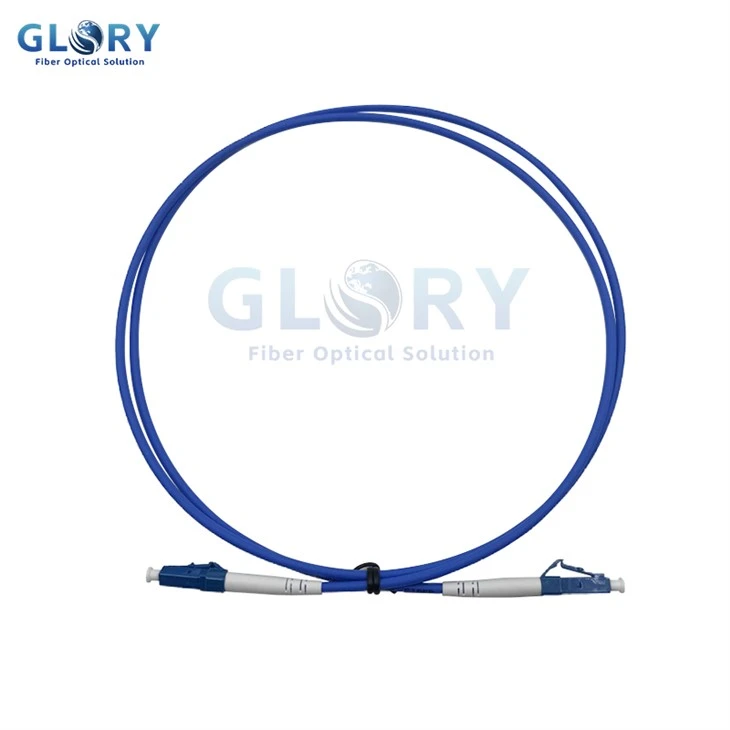

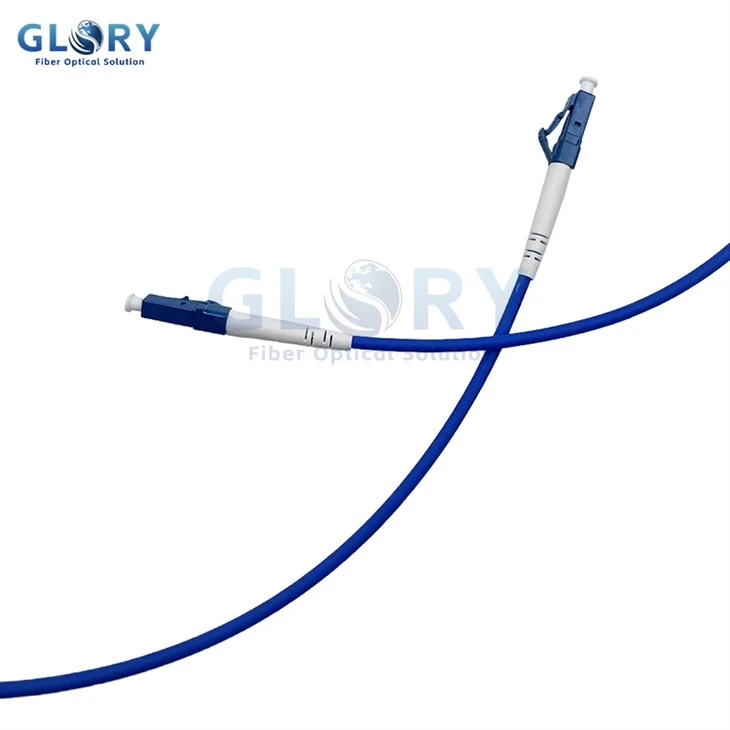

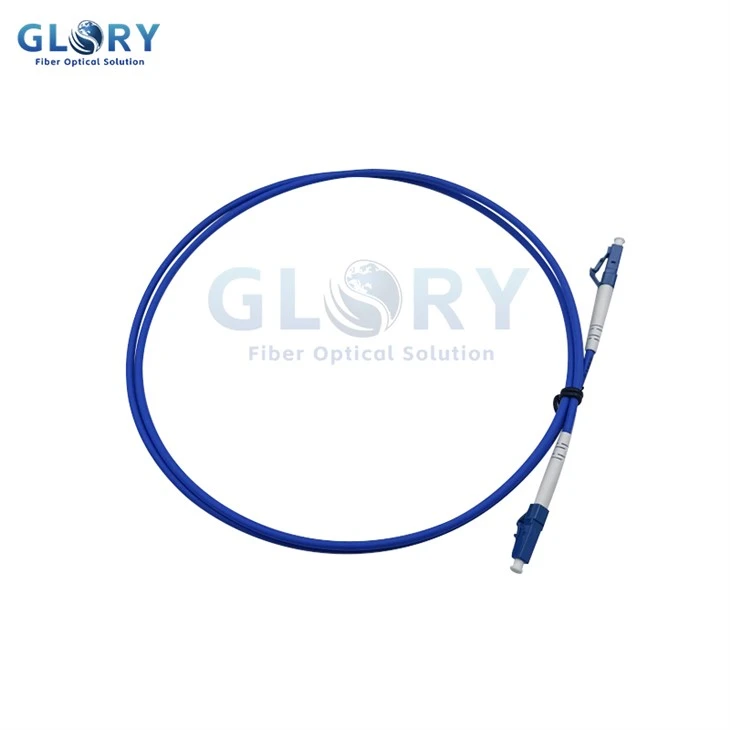

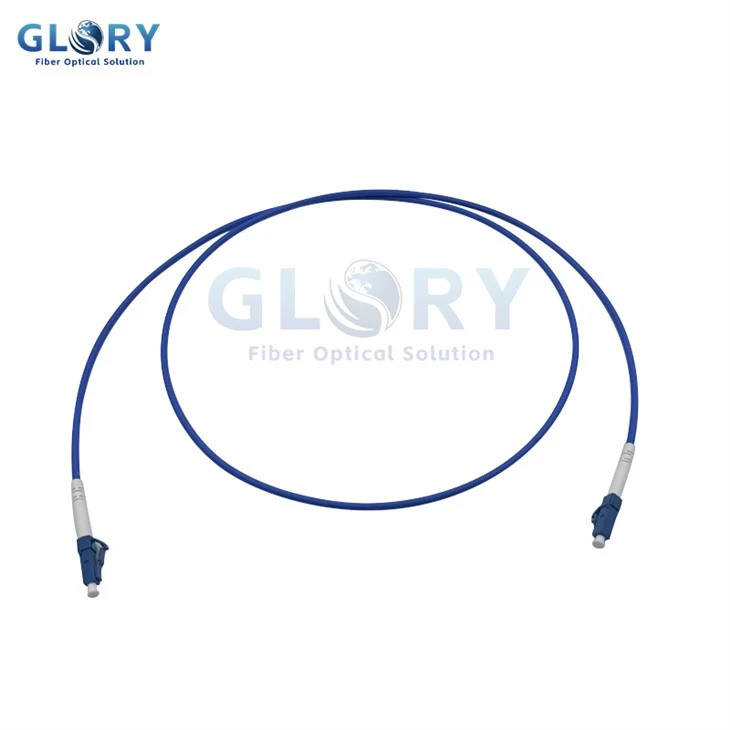

Armored LC to LC SM SX 3.0mm G657A1 Fiber Patch Cable LSZH jacket is a high-quality fiber optic cable that is designed to provide reliable and efficient connectivity in various applications. This cable is made of premium quality materials that ensure Its durability and longevity make it an excellent option for both indoor and outdoor use.

Armored LC to LC SM SX Fiber Patch Cable are with stainless steel tube inside the outer jacket to protect the central unit of the cable, so they will not get damaged even they are stepped by an adult and bit by rodents. Various cable lengths, jacket materials and connectors are available. Armored LC to LC Fiber Patch Cable can be laid in all kinds of harsh environments. It has stainless steel tube to protect optical fibers and provides better security for the whole system.

Specifications:

Item	Armored Fiber Patch Cable
Fiber Count	SX DX 4C 6C 8C 12C 24C…
Connector	LC /SC /FC /ST, APC/ UPC
Outer Jacket Material	PVC (OFNR)
Cable Diameter	3.0mm/ 5.0mm/ 6.0mm…
Jacket Color	Blue
Insertion Loss	≤0.3dB
Cable Length	1~150m or Customized
Return Loss	SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life	500cycles
Working temperature	-40°C~+85°C
Storage temperature	-40°C~+85°C

Features for LC To LC Fiber Patch Cable:

• Flexible stainless steel tube to protect optical fibers from damage

• Good performance of torsion, tensile strength, pressure, and anti-rodent

• Various connectors are available complying with international standards, such as FC/SC/ST/LC, etc.

Application for LC To LC Fiber Patch Cable:

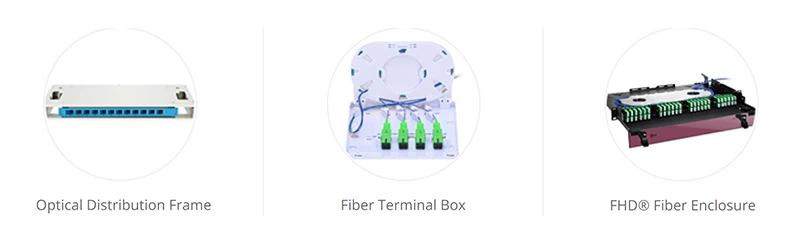

• A Variety of Applications for Different equipment

Widely used in CATV, FTTH/FTTX, CCTV deployment, telecommunication networks, premise installations, data processing networks, LAN/WAN network, and more.

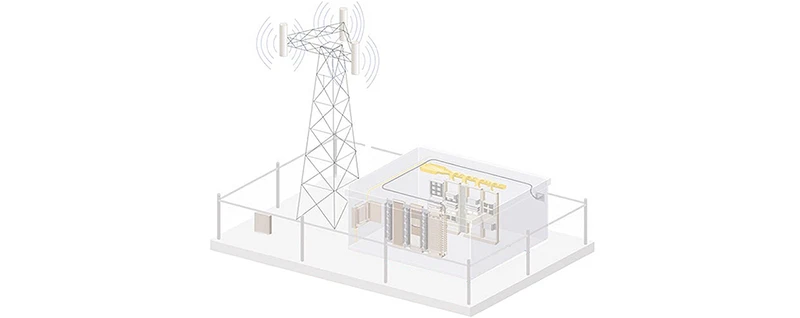

CATV application
