Outdoor Fiber Splice Enclosure

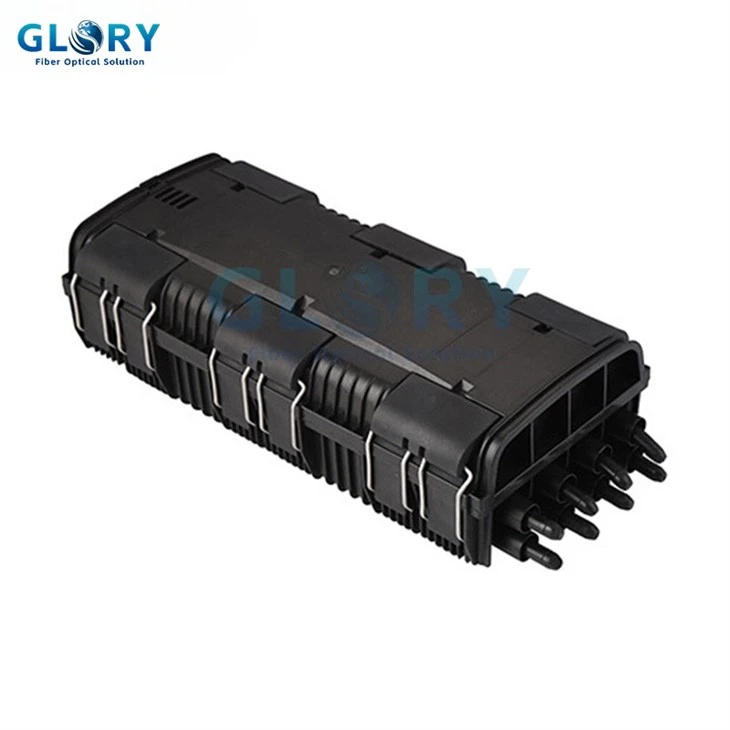

Model: GL-J011 Inline Type Outdoor Fiber Optic Splice Enclosure
• Max capacity: 48/96 fibers
• Cable port: 2 in 8 out
• IP68 waterproof
• ROHS certificate
- Product Introduction
Outdoor IP68 Inline Fiber Splice Enclosure
One primary Outdoor Fiber Splice Enclosure for 48 user access ports, serving as a protective fiber optic closure outdoor box for connecting and distributing signals between two or more cables. Its main function is to splice and connect a maximum of 48-core inlet distribution cables to indoor cables in outdoor environments. This fiber enclosure box is widely used in EPON, GPON communication systems, cable TV, and optical cable network systems. It features a sturdy structure, excellent sealing performance, and convenient maintenance for internal fiber optic splices and storage – all within a single enclosure.
Specifications:
|
Model No. |
GL-J011 |
Color |
Black |
|
Capacity |
48 cores |
Protection Level |
IP68 |
|
Material |
PC, PC+ABS, PP |
Inlet/outlet |
2+8 |
|
Dimension(MM) |
350x210x65 |
Sealing Method for Inlets |
Screw mechanical |
|
Inlet cable port |
13-20mm |
Outlet cable port |
13-20mm |
Feature of Outdoor Fiber Splice Enclosure：
• The fiber optic closure outdoor box is made of high-quality engineering plastic with good strength.
• With a good waterproof design, it can be applied in underground and aerial installations.

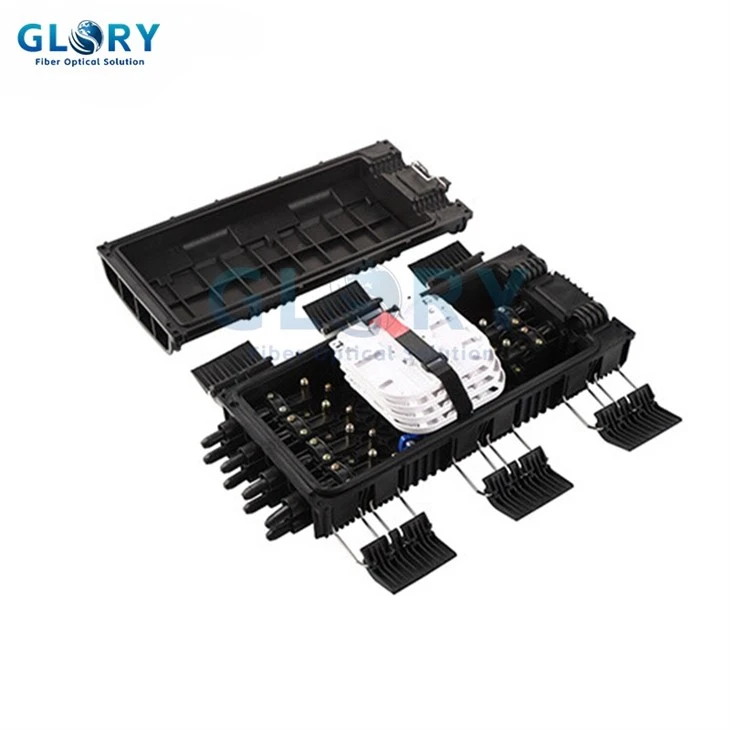

• The optical junction box is equipped with 4 splice trays.
• Its excellent fiber routing design ensures a good bend radius for the fiber and provides enough fiber storage space.

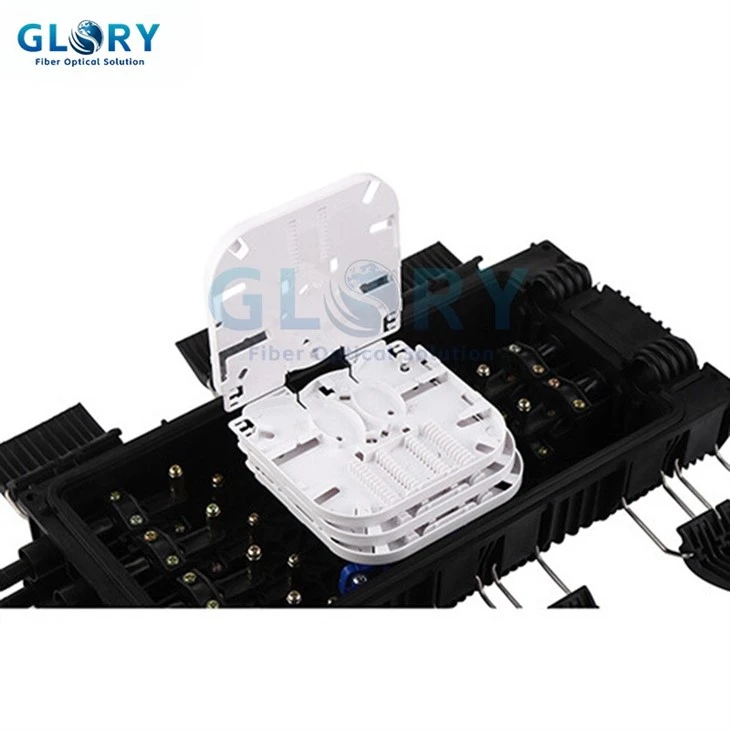

• Each fiber splice tray has 12 slots, each accommodating two splices.

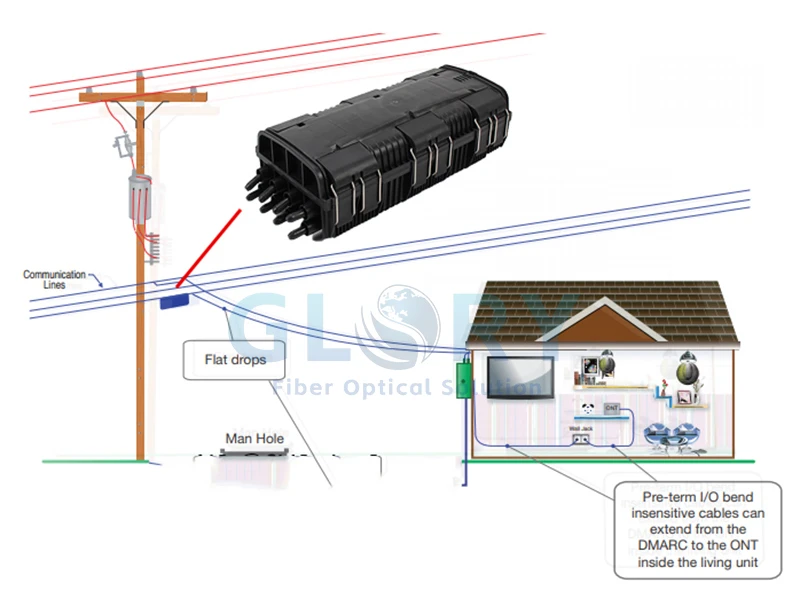

Applications:
• FTTH access network.
• Telecommunication Networks
• CATV Networks
• Data communications Networks
• Local Area Networks Joint Point
