Fibre Optic Enclosures
Model: Inline Fibre Optic Enclosures GL-J006
The max capacity of this fiber enclosure is 144 cores, with 4 inlet and 4 outlet cable ports, IP68. The material is PP/PC plastic.
- Product Introduction

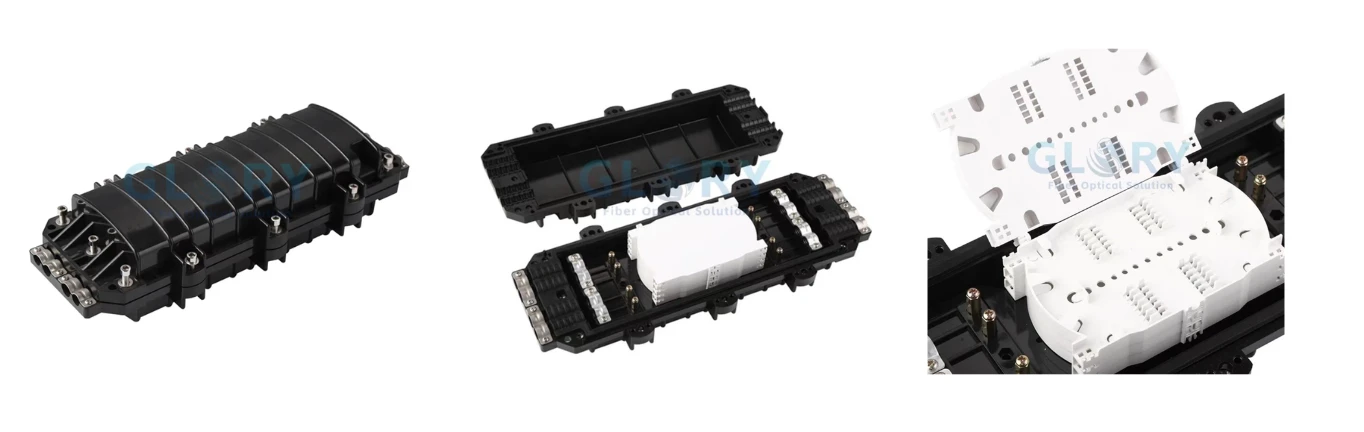

144 Cores Inline Fibre Optic Enclosures

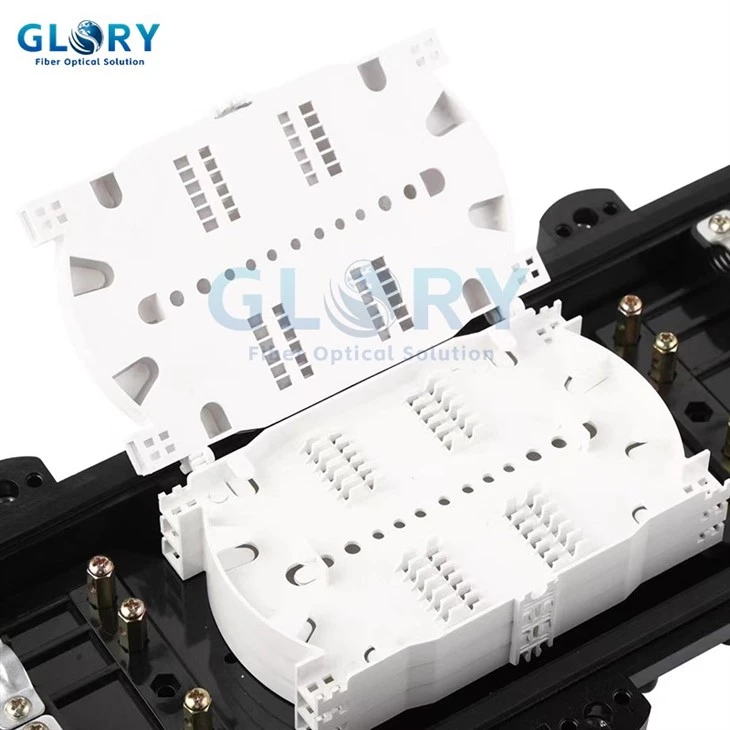

The Fibre Optic Enclosures use high-quality elastomer rubber sealing material, molded in one piece to ensure a seamless joint surface. This guarantees excellent sealing performance and allows for repeated opening and reuse, addressing installation challenges. The enclosures can be disassembled and assembled quickly and conveniently, and withstand long-term exposure to extreme natural temperature fluctuations while maintaining reliable sealing. Featuring a spacious design, the fiber splice closure incorporates a stackable splice tray configuration that offers flexible deployment and simplifies installation. The optical fiber bending radius is designed to fully meet international standards, and designated storage space for coiling excess fiber is provided inside the enclosure to ensure optical fibers experience no attenuation changes within the splice closure.
Specifications:
|
Item Name |
Fibre Optic Enclosures GL-J006 |
|
Size (mm) |
460(L)×190(W)×115(H) |
|
Color |
Black |
|
Material |
PC/PP |
|
Cable ports |
4 inlet and 4 outlet |
|
Protection Grade |
IP68 |
|
Fiber Splice Capacity |
144 Fibers |
|
Capacity of single tray |
24 Fibers |
|
Max Qty. tray assembly |
6 pcs |
|
Application |
Aerial/Manhole/Wall mounting |
Features:
• The fibre optic enclosure is made of high-quality engineering plastics.
• It adopts secondary compression cable technology to ensure no additional attenuation of the optical fibre occurs in the fibre splice joint closure.
• It supports multiple reuse and capacity expansion functions.
• The closure is fixed and sealed with multiple stainless steel screws, ensuring reliability and excellent performance.
Applications:
• network systems
• CATV cable television,
• Fiber optic cable network systems
