Fiber Optic Enclosure Box
Model: GL-8208-B Fiber Optic Enclosure
The Fiber Enclosure Box is a multifunctional device designed for splicing fiber optic cables and sealing without screws.
- Product Introduction
96 Cores Hinged Type Fiber Optic Enclosure Box

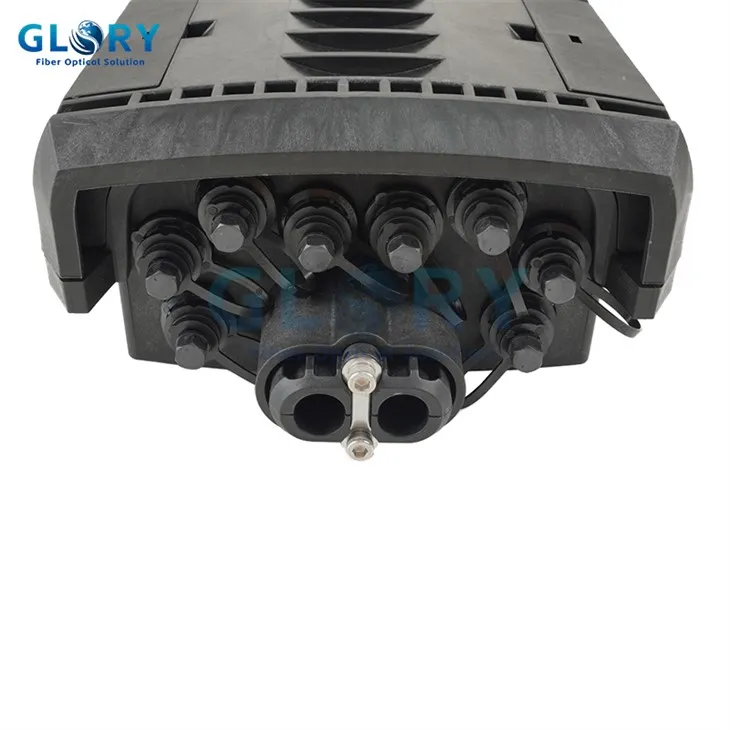

The GL-8208-B Fiber Optic Enclosure Box is an 8-port terminal box equipped with hardened SC adapters for connecting end-users in FTTH network systems. It features a screwless sealing design, compact size, and flip-over cover to ensure ease of operation and full functionality. With mechanical sealing technology, it achieves an IP68 protection rating. Its mechanical compression sealing provides an economical, easy-to-use cable sealing solution and features a robust UV-stabilized glass-filled polypropylene housing. Explore our range of reliable fiber optic splice closures for network deployment, prioritizing reliability, ease of installation, and flexibility.
Specification:
|
Model No |
Fiber Optic Enclosure Box GL-8208-B |
|
Dimensions |
380(L)×245(W)×130(H) mm |
|
Weight (kg) |
3.0 - 4.0 |
|
Material |
PP+GF |
|
Sealing Type |
Mechanical Seal |
|
Protection Grade |
IP68 |
|
Adaptor |
8 pcs optitap hardened adaptor |
|
Fiber Splice Capacity |
96 |
|
Tray Capacity |
24 |
|
Tray Count |
4 |
|
Application |
Wall /Pole/Aerial Mounting |
Structure Drawing:
Features：
• All trays of the Fiber Optic Enclosure Box are hinged at one side, which is convenient for the operation of each fiber trays.
• No screw flip over structure, support plug and play and fast open service for new subscribers.
• Capacity: max capacity is 96F, each cassette support 24f. Mini type splitter can be installed.
Splice tray specification:
|
|
Model |
Tray capacity |
Size (mm) |
Splitter |
Single fiber splices |
Ribbon fiber splices |
|
38# |
24F |
112 x 68 x 8 |
1:8 micro PLC |
Yes |
No |
Installation :
Fiber Optic Enclosure Box are aerial, pole, wall or below grade mountable for flexible placements
FAQ:
1 How to connect Hardened SC/APC Drop Cable in the Fibre Enclosure Box?
First, fix pre-connected cable, unscrew dust cap for connector and remove the ceramic pin dust cap.
secure the pre-connectorized connector to the box adapter (tighten clockwise).
