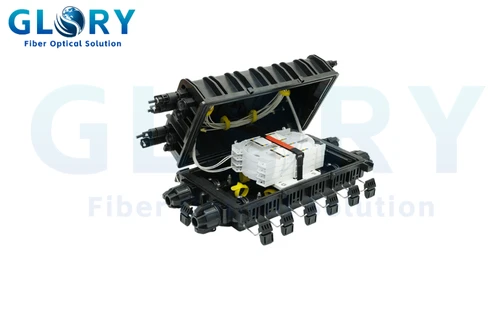

Inline Fiber Optic Enclosure
Model: GL-6809 Inline Fiber Optic Enclosure
size:512×213.5×151mm
Inner Carton size:625×245×175 mm (1 PCS)
Outer carton size:645×520×380 mm (6 PCS)
- Product Introduction

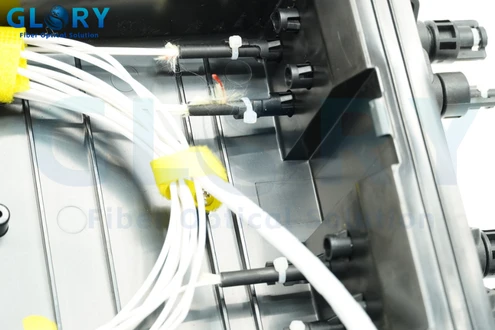

GL-6809 Fiber Optic Splice Closure
Versatile Optical Cable Connection Solution for Harsh Environments
Product Overview
The GL-6809 Inline Fiber Optic Enclosure is a multifunctional solution for fiber optic connectors, branching and protection. Its modular structure supports multiple connection methods, including direct connection, bridging and branching. It has high compatibility and is suitable for overhead, wall-mounted, pipeline, manhole and direct buried installation, meeting the high reliability requirements of the network in various situations.
Key Features
All-Environment Adaptability
High-Density Capacity Design

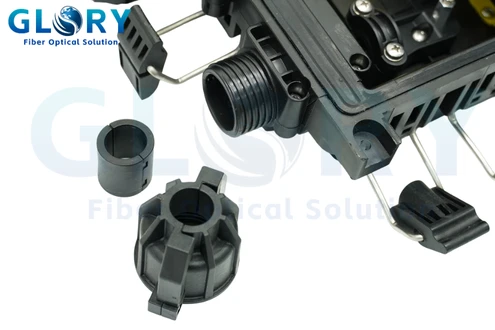

Flexible Port Configuration: Provides 2 main cable entries (φ9-11mm) and 16 branch cable ports (φ4-6mm), supporting multiple cable parallel access.
144-Core Large Capacity: Built-in 3 stackable fusion trays (24/48 cores per tray) with snap-on design for easy fiber storage and bend radius control (≥40mm).
Easy Installation & Maintenance
304 Stainless Steel Fasteners: Anti-corrosion screws and washers allow repeated disassembly.
Tool-Free Operation: Quick-lock cover design enables opening/closing without special tools, improving maintenance efficiency by 50%.
Standardized Accessories: Includes sealing tape, waterproof glue tubes, insulation tape, and supports optional valves, grounding wires, etc
Technical Specifications
| Parameter | Value |
|---|---|
| Model | GL09-6809 |
| Dimensions (L×W×H) | 512×213.5×151 mm |
| Weight | 3.5-4.0 kg |
| Protection Rating | IP68 |
| Fusion Capacity | 144 cores (maximum) |
| Cable Compatibility | Main cable φ9-11mm; Branch φ4-6mm |
| Installation Methods | Aerial/Wall-mounted/Pipeline/Manhole/Direct burial |
Typical Application Scenarios
5G Base Station Cable Splicing
Waterproof sealing for multi-branch fiber cables in manholes, supporting rapid deployment of fronthaul links between RU/DU units.
FTTH Optical Distribution Points
Wall-mounted installation in corridors, branching trunk cables to end-users, compatible with 1:32 splitter integration.
Industrial Zone Direct-Buried Networks
Chemical corrosion-resistant design suitable for oil fields and factory area underground trunk cable splicing.

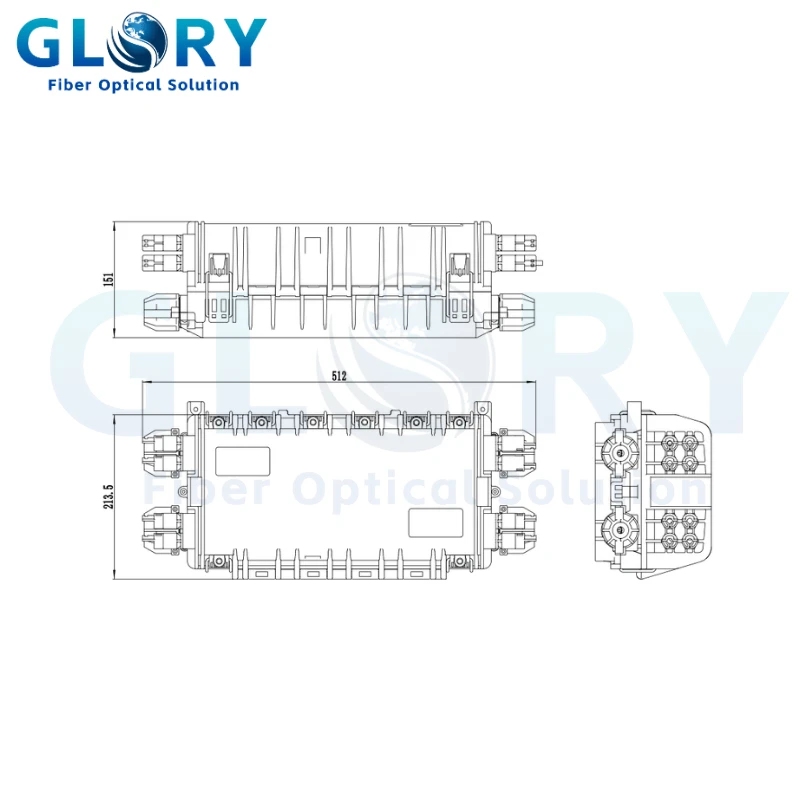

Structure Drawing
