GEL Splice Closure

Model: GL-8701 GEL Fiber Splice Closure
IP68, Gel Sealing Structure Enclosure

  • Product Introduction



IP68 GEL Fiber Splice Closure



A GEL Fiber Splice Closure is a protective enclosure for fiber optic cables. It houses and safeguards spliced fiber connections against environmental hazards like moisture, dust, and physical damage. Its key feature is a special moisture-blocking gel encapsulation that seals entry ports, ensuring long-term reliability and signal integrity in outdoor or underground installations.

The GL-8701 GEL Fiber Splice Closure can serve as a termination point in the FTTX network, connecting drop cables to feeder cables. This closure is designed to accommodate up to 8 users and facilitates splicing, splitting, storage, and management within an adequate space.

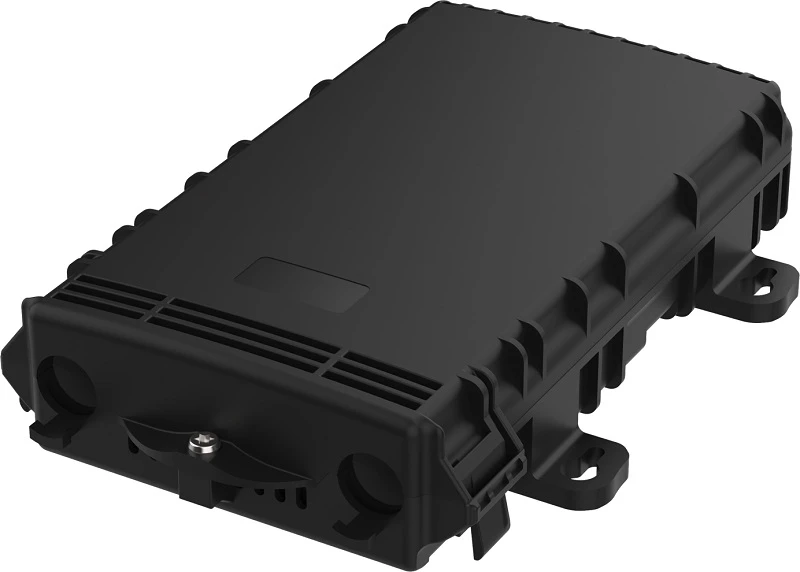

gel splice closure


Specifications:



Model

GL-8701 GEL Fiber Splice Closure

Dimension (H × W × D)

230 × 155× 50 (±2mm)

Splicing capacity

Max. 24F

Adapter configuration

Max. 8 pcs SC/APC adapters

Splitter configuration

Max. 2 splitters, 1:4 or 1:8 mini-PLC splitter

Sealing mode

Gel sealing

Cable diameter

2 ports, Φ7~14mm

Protection Grade

IP68

IK grade

IK10

Working temperature

Installation Method

-55~+65℃

Wall/Pole Mounting

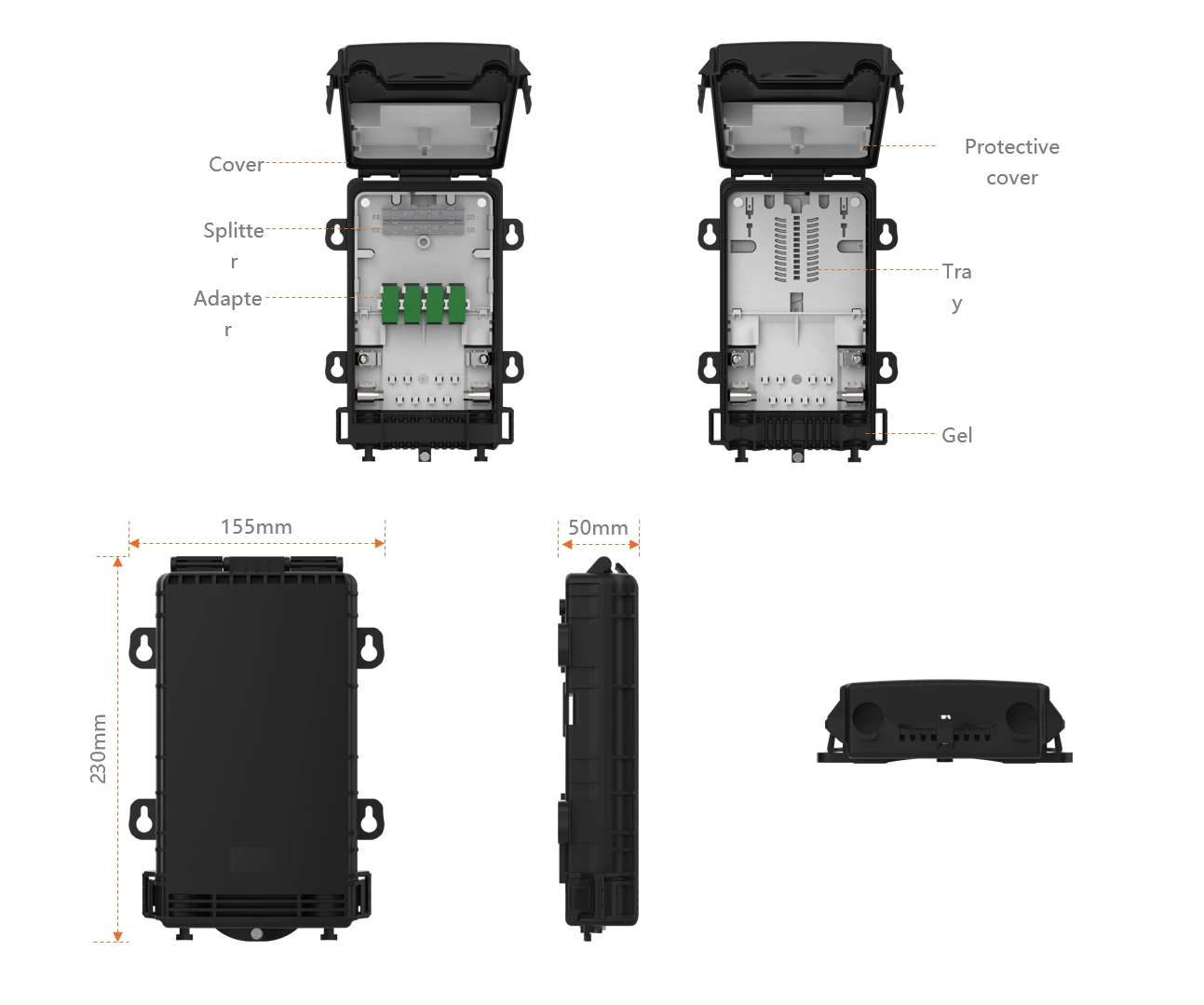

Gel splice closure size

Features:



• Beautiful and compact model, easy to install​​

​​• Neat fiber management and good protection​​

​​• Suitable for both indoor and outdoor applications; supports wall mounting and pole mounting​​

​​• Excellent sealing performance; waterproof and dustproof, meeting the IP68 ingress protection rating​​

​​• High-strength material with good environmental adaptability, providing IK10 impact resistance​​

​​• A 1:8 or 1:4 mini-PLC splitter can be configured inside, supporting up to 8 SC/APC adapters

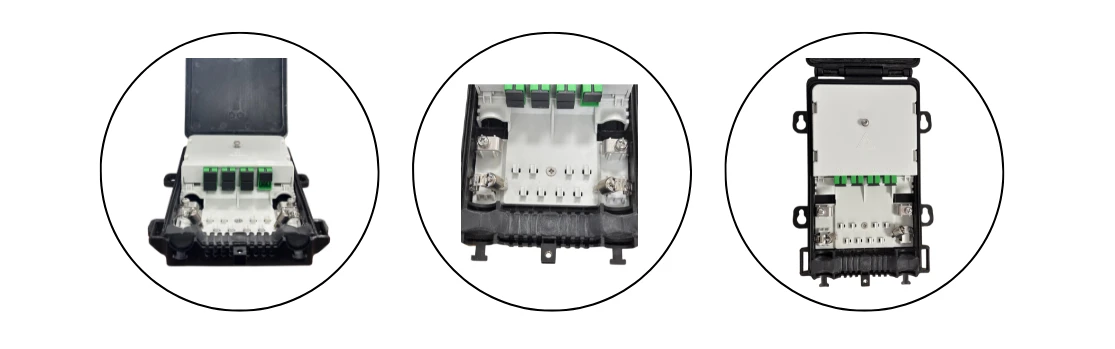

fiber closure internal structure

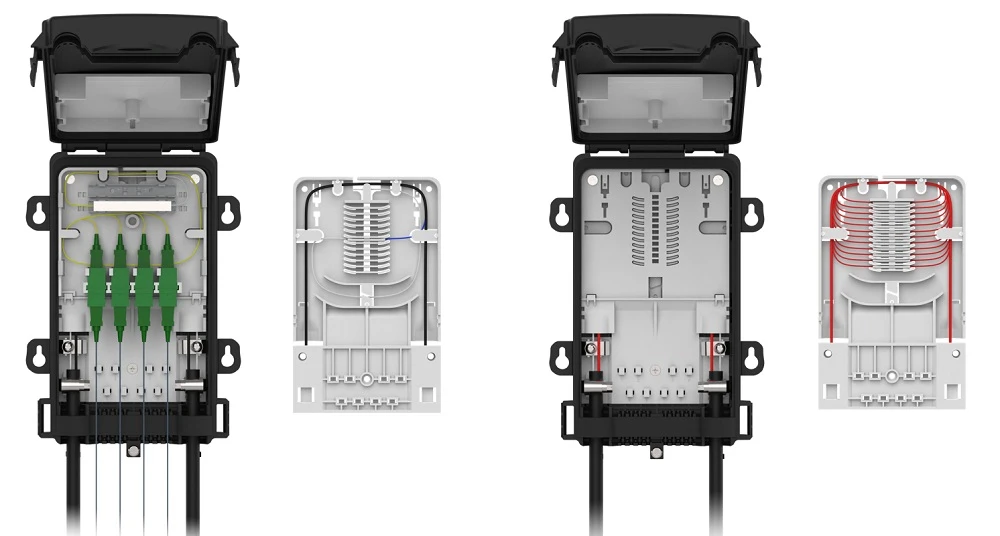

Cable route:

cable rout



                        With mini-PLC splitter                                                                                                  Direct splice



Installation:



• Wall Mounting: Drill 4 holes on the wall, the diameter of the hole is 6mm and the depth of the hole is at least 30mm. Put plastic expansion sleeves inside the holes.

• Pole Mounting: Pass the hoops through the pole securing holes at the back plate.

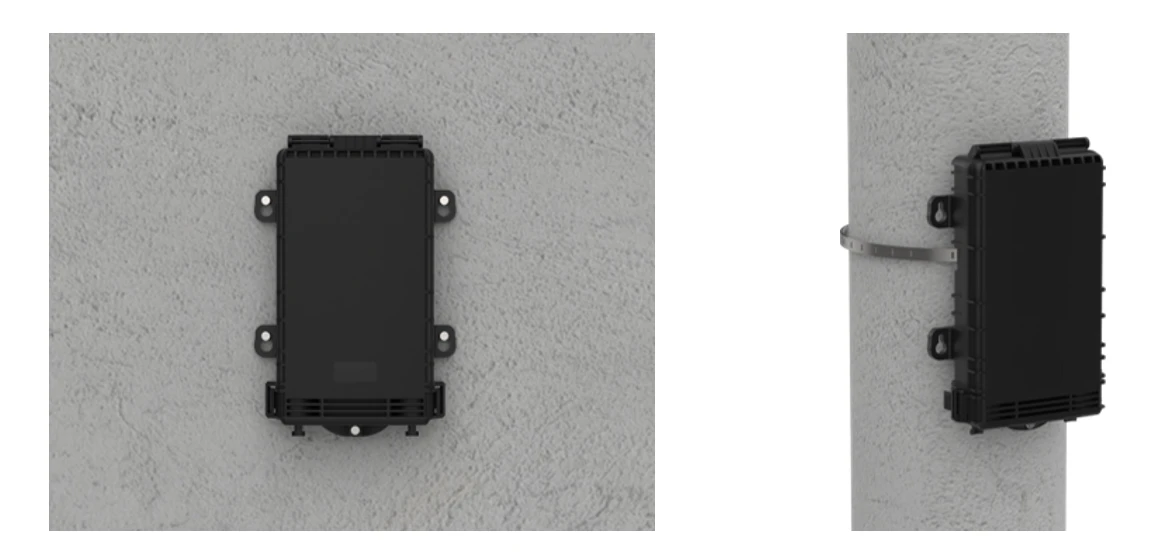

GEL SPLICE CLOSURE MOUNTING

                                                               Wall Mounting                                                                                                           Pole Mounting
