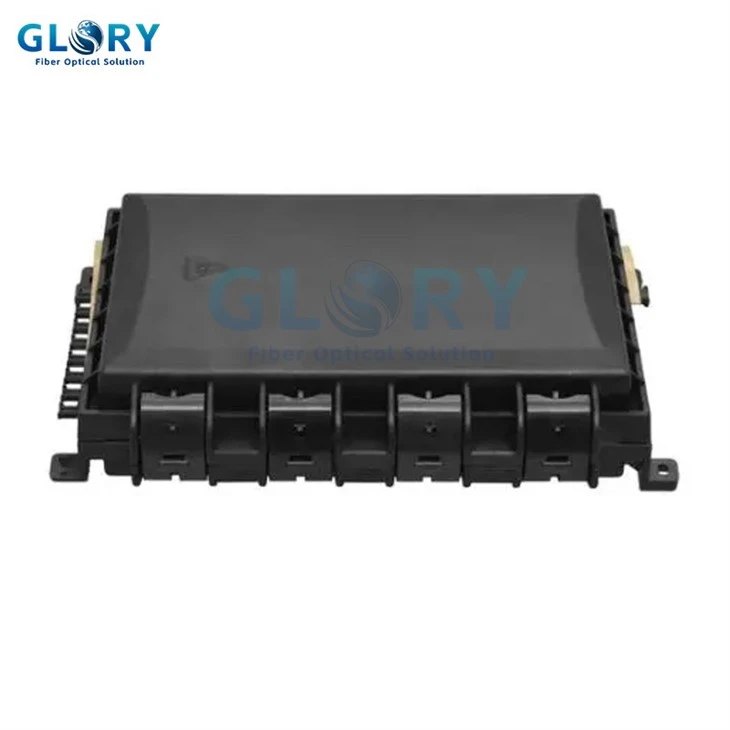

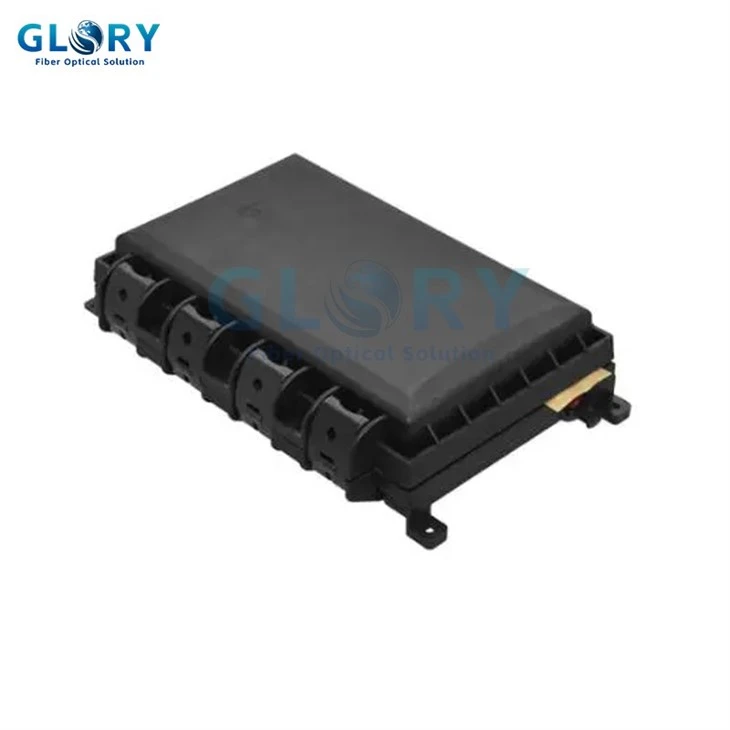

Fiber Optic Splitter Splice Closure
Model: GL-H60JF2(8) Fiber Optic Splice Closure

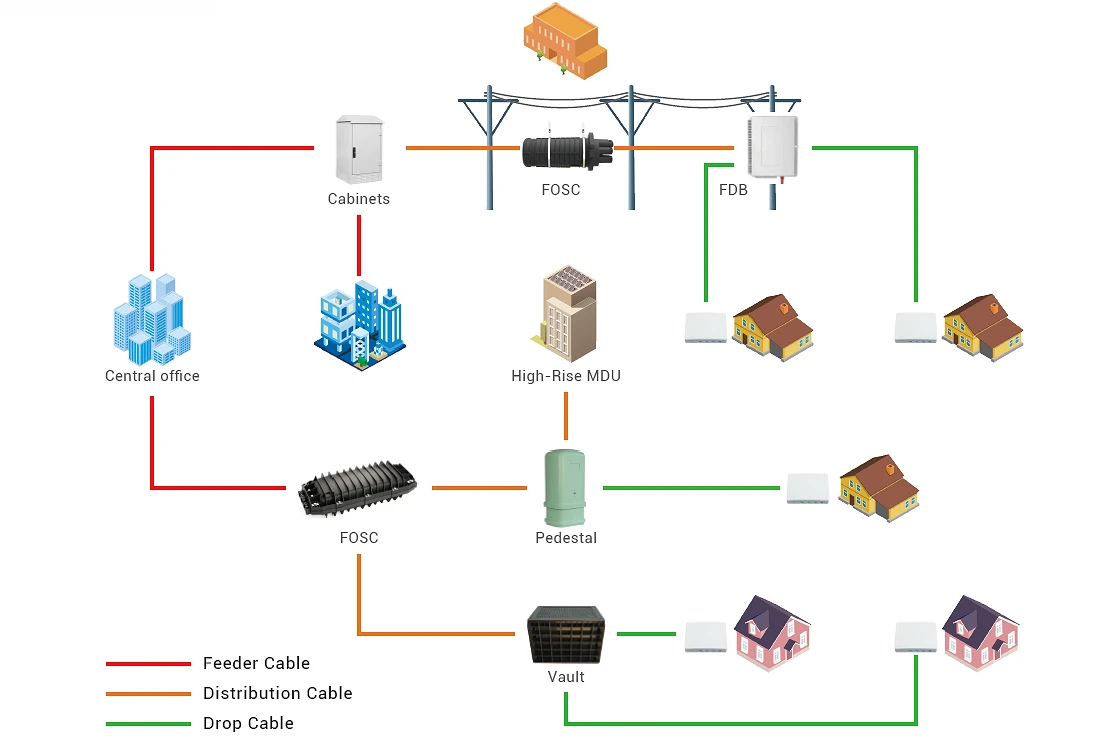

The Fiber Optic Splitter Splice Closure GL-H60JF2(8) holds up to 8 subscribers. It is used as a termination point for feeder cables to connect with drop cables in FTTx network systems. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one protective enclosure.
- Product Introduction
Fiber Optic Splitter Splice Closure
The Fiber Optic Splitter Splice Closure not only performs butt-joint and branching functions but also enables optical cable splitting and wiring. It is suitable for installing main optical cables and drop cables of different diameters.
The 8-port Fiber Access Terminal Box (GL-H60JF2(8)) is designed for stand-mounted aerial FTTH drop locations, where distribution cables are spliced to drop cables. This fiber splice closure is also suitable for wiring connections in optical communication equipment. It facilitates optical distribution functions by enabling the introduction of signals through adapters and jumpers, and is suitable for the protective connection of fiber optic cables and pigtails.

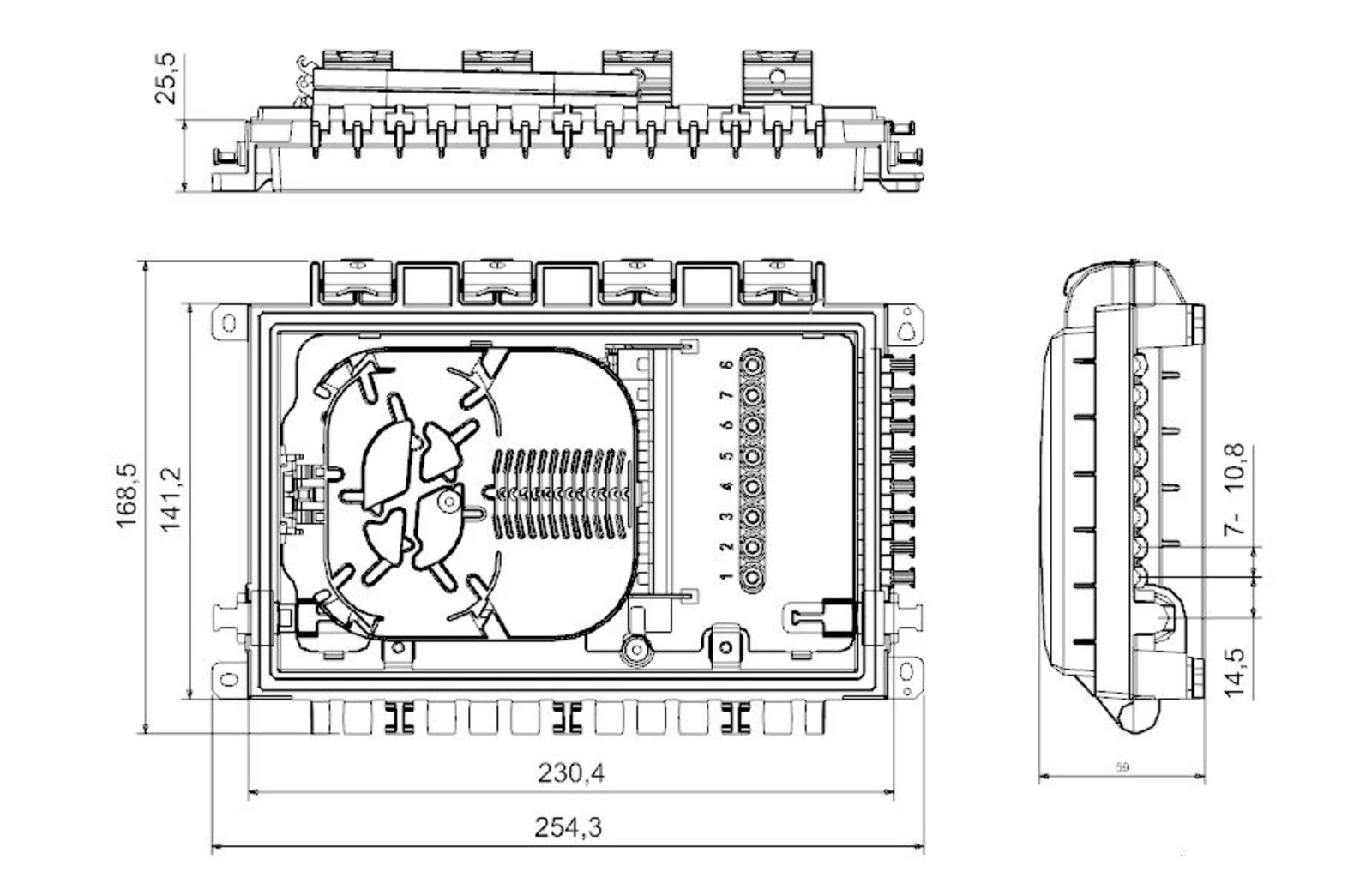

Exterior Structure Diagram:
Specifications:
|
ITEM |
PARAMETER |
|
|
Suitable fiber type |
Exist cable (8 ports on one side) |
Dia. 2~5mm |
|
Entrance cable (2 ports on up and down side) |
Dia. 5~11mm |
|
|
Capacity |
Splice function |
24 cores (2 trays) |
|
Splitter |
1 set 1:8 SC/LC/FC splitter |
|
|
Material |
PC+ABS |
|
|
Size ( AxBxC ) |
254.3x168.5x59mm |
|
|
Connecting Adapter |
SC/LC/FC |
|
|
Operating temperature |
-40~+85C |
|
|
Color |
Blac |
|
Features of Fiber Optic Splitter Splice Closure:

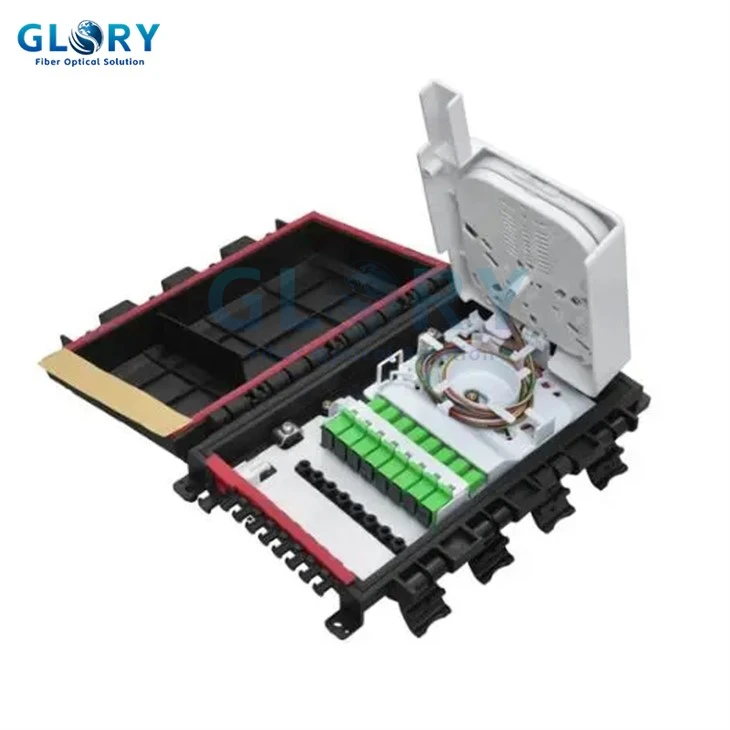

• Integrated with splice cassette and cable management rods.
• Maintains fibers at a controlled bend radius.
• Easy to maintain and extend the capacity.
• Suitable for fusion splice or mechanical splice. Ensures fiber bend radius exceeds 40mm.
• 1 * 8 Splitter can be installed as an option.
• 8 ports cable entrance for drop cable.
• The curved diameter meets international standard.
• Laying adapters suitable for FTTH, ensuring easy operation.
Applications:
• The Fiber Optic Splitter Splice Closure is suitable for fiber bundles
• Mounting options: Aerial, underground, wall-mounting, handhole-mounting, pole-mounting, and duct-mounting
• It is especially suited for FTTH fiber distribution
