Fiber Splice Case

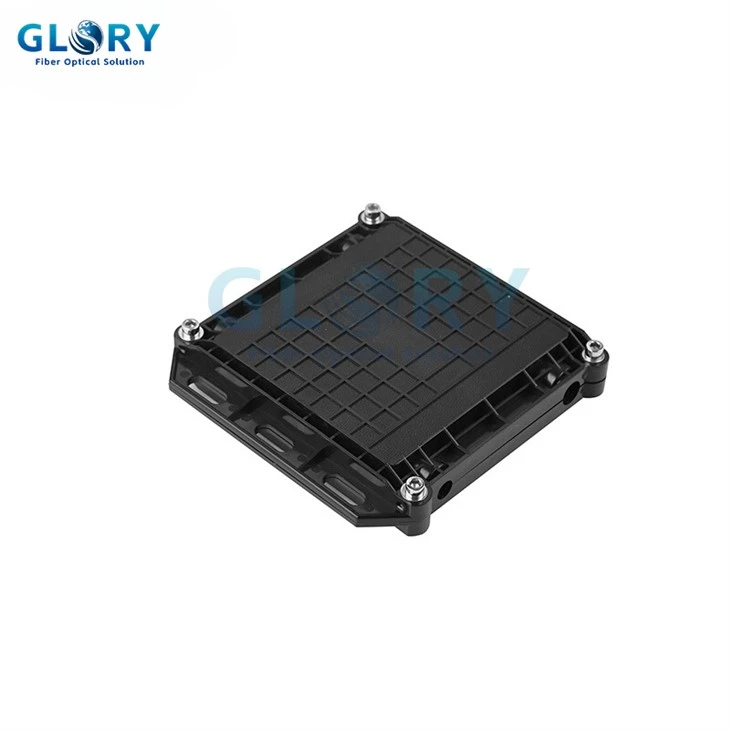

Item: Fiber Splice Case 2 In 2 Out 24 Cores Mini Type Inline Fiber Optic Splice Closure Aerial Application Fiber Optic Enclosure Model GL-S01
- Product Introduction
This Fiber Splice Case is a fiber optic box with 2 inlet and 2 outlets on two sides, it fits for indoor and outdoor application. Its flat shape allows for mounting in small area without compromising functionality. The joint closure is used for straight-through and branch (one in two, one in three) splice of the fiber optic cables, also suitable for the connection of all plastic city telephone cables. This small Fiber Splice Case is available to apply in aerial, wall-mounting installation. It is with good performance due the strong materials.
The Fiber Splice Case are widely used in network systems, CATV cable television, fiber optic cable network systems, etc. This fiber optic splice closure is used for the protection of various optical cable straight-through connections and branch connections, and can be buried, overhead, wall-mounted and duct-mounted. The whole set of Fiber Splice Case plastic parts are made of scientifically formulated high-strength PC synthetic engineering plastics, which are injection molded by numerical control equipment, which can effectively prevent material aging caused by cold, heat, oxygen and ultraviolet rays in nature, and has excellent mechanical strength. The sturdy Fiber Splice Case shell and main structural parts can play a flame-retardant, waterproof, and shock-proof role, and at the same time protect the tension, flattening, impact, bending, twisting, and axial compression of the optical cable's connection, and it can be used in the natural environment of -40℃ -- +75℃ for a long time.
Specification:
|
Model |
Fiber Splice Case GL-S01 |
|
Dimension |
220x220x45mm |
|
Capacity |
24 fibers |
|
Cable entry ports |
4 pieces |
|
Diameter of Cable |
Φ7mm～Φ14 mm |
|
Protection level |
IP68 |
|
Application |
Aerial, Direct buried, underground, pipeline, hand-holes, duct mounting, wall mounting. |
Technical parameter:
• optical fiber winding radius： ≥40mm
• extra loss of fiber tray： ≤0.01dB
• fiber length left in tray： ≥1.6m
• working temperature： – 40℃ ～ + 65℃
• lateral pressure-resistance： ≥2000N / 10cm
• shock-resistance： ≥20N.m
Feature of Fiber Splice Case：
• Aging and corrosion resistance
• Small size and light, reasonable design for cable protection
• The body and cable entry port are sealed with silicone rubber ensures a good air tightness and water resistance.
• Easy to install and re-open without special tool
• Pull-down type splice tray makes fiber installation easily.
Application:
• Network systems
• CATV cable television
• Fiber optic cable network systems
