Fiber Joint Enclosure
Model: Inline Fiber Joint Enclosure GL-H6-288
• Cable port: 3 inputs and 3 outlets
• Max capacity: 288 fibers, 24pcs splice trays, 12 fibers/each splice tray
The large-sized 288-fiber Fiber-Joint Enclosure is a multi-purpose optical fiber cable connection product designed to connect and split optical fibers.
- Product Introduction
288 Fibers Inline Fiber Joint Enclosure
The GL-H6-288 Inline Fiber Joint Enclosure utilizes modified polypropylene, which features excellent impact resistance, weather resistance, corrosion resistance, UV resistance, water resistance, and fire-retardant properties. Cables installed within are protected from vibration, impact, stretching, twisting, and other stresses. Additionally, the fiber joint enclosure prevents aging of cables and related accessories caused by natural factors such as heat, cold, light, oxygen, and microorganisms. This fiber joint enclosure is suitable for both direct and branched cable connections with various cable structures, and it can be used in aerial, wall-mounted, or direct burial installations.
Specifications:
|
Model |
GL-H6-288 Inline Fiber Joint Enclosure |
||
|
Dimensions (L*W*H, mm) |
657×255×160 |
Weight (kg) |
7-8 |
|
Material |
PP |
Inlets/ Outlets |
3/ 3 |
|
Max. Capacity |
288F |
Protection Grade |
IP68 |
|
Splice Tray Capacity |
12F |
Sealing Type |
Mechanical Sealing |
|
Cable Diameter (mm) |
φ10～φ25 |
Installation |
Aerial/ Wall Mounted/ Direct Burial |
Features：
• Cable ports: 6 cable ports in total. The middle two ports accommodate cable diameters of Ø16–25mm, while the remaining four accommodate Ø10–20mm.
• Sealing performance: Mechanical sealing mechanism with a protection rating of up to IP68.
• Splicing capacity of Fiber Joint Enclosure: The splice tray supports 12 fibers (12f), with a maximum capacity of up to 288 fibers (288f).
• Weather resistance: Strong durability, capable of withstanding extreme high/low temperatures and chemical corrosion tests.
• Material: Tightening screws and gaskets are made of 304 stainless steel to enhance corrosion resistance.
• Installation options: Suitable for aerial, pipeline, manhole, and underground mounting.

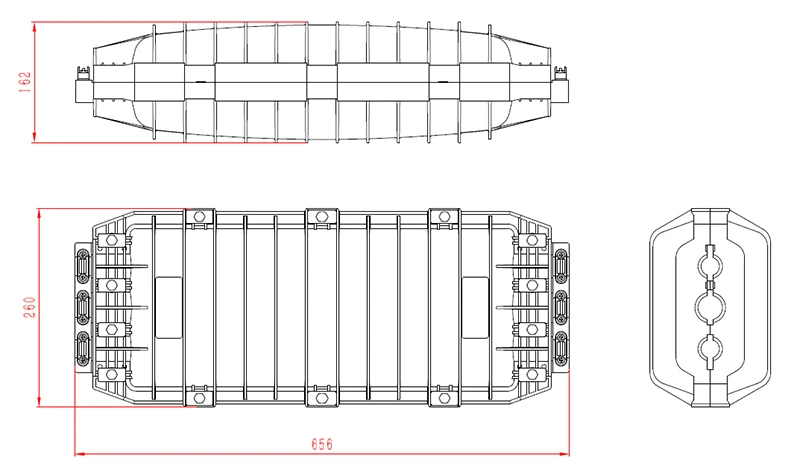

Structure drawing of The Fiber Joint Enclosure:

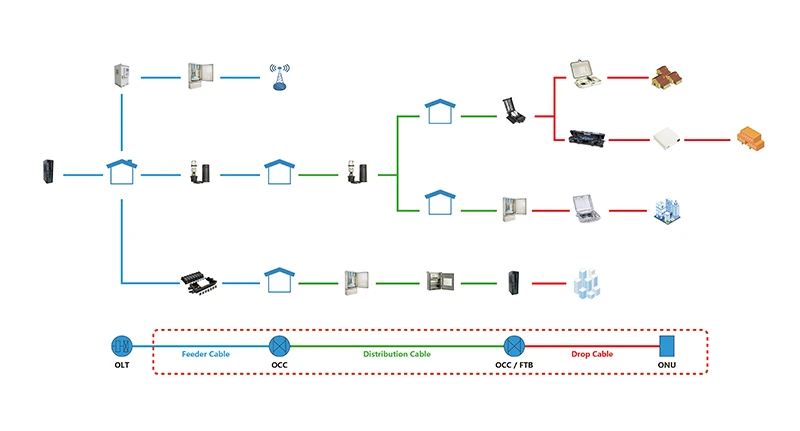

Applications:
FTTH optic distribution network
