Small Fiber Enclosure
Item: Small Fiber Enclosure Aerial Outdoor IP68 Optical Fiber Splice Enclosure NAP CTO Box
Full Mechanical sealing, clip type lock，the max capacity is 36 fibers.
- Product Introduction

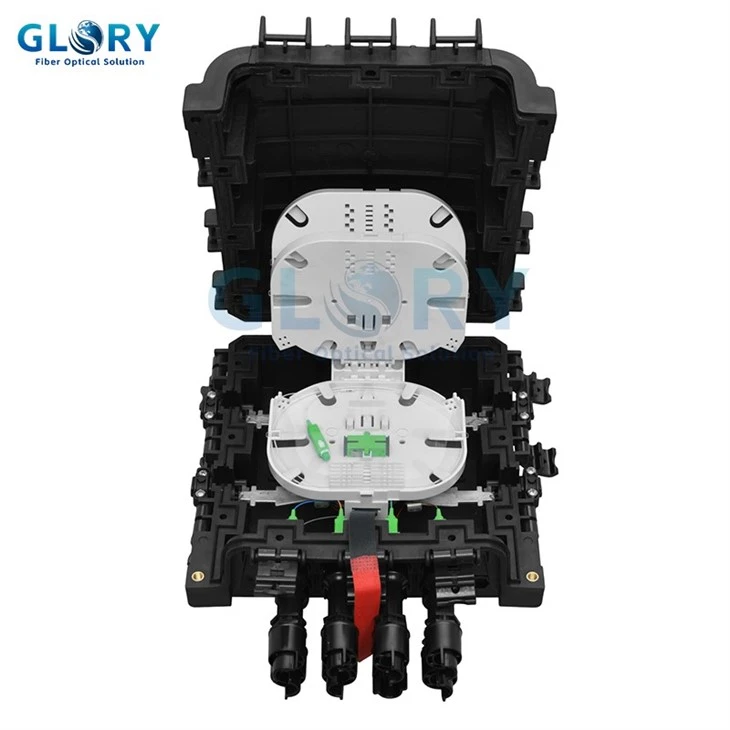

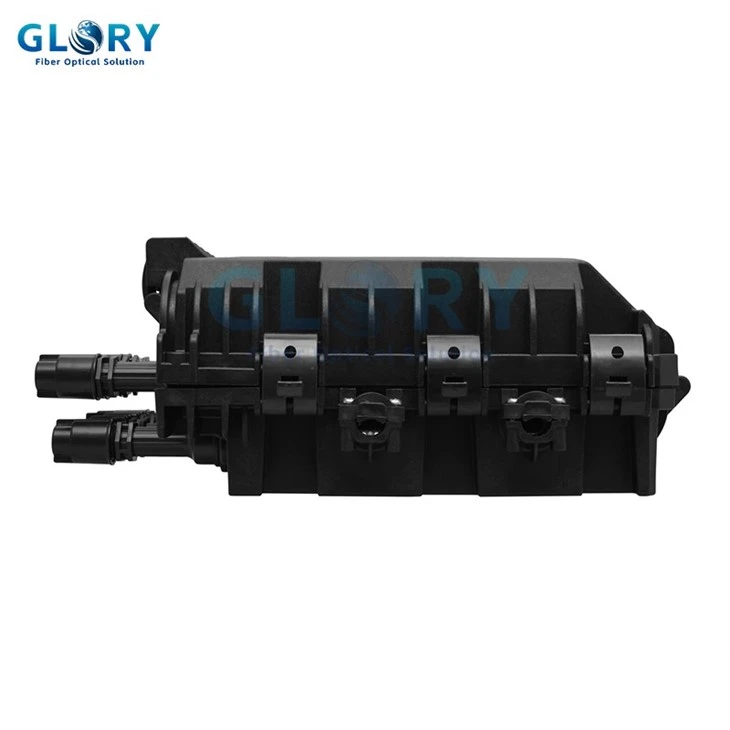

Small Fiber Enclosure NAP CTO Box
The Small Fiber Enclosure is widely used to connect and branch outdoor optical fibers in aerial, buried, and pipeline applications. It features a fully mechanical sealing and reopenable design, with optional valves and ground feed-through lugs. Its simple inner structure and easy installation make it the best choice for network construction.
The Small Fiber Enclosure NAP CTO Box is part of the optical fiber fusion splice system. It is widely used in fiber connections to provide sealing, protection, installation of fiber connectors, and storage. The fiber optic splice closure casing is made of high-quality engineering plastics that exhibit excellent resistance against erosion from acids, alkalis, salts, aging, and harsh environmental conditions. With a smooth appearance and reliable mechanical structure, it is designed to withstand extreme climates and demanding working environments. Its protection rating reaches IP68. The Fiber Enclosure has a compact size, high capacity, and is convenient to maintain and operate.
Specification:
|
Size (mm) |
319x248x125 |
Max Capacity |
36 Fibers |
|
Max tray quantity |
3 pcs |
Each tray capacity |
12 fibers |
|
Sealing method |
Full Mechanical sealing way, clip type lock |
Application |
Pole/ wall mounting |
|
Bending Radius |
> 40mm |
Durability |
25 years |
|
Available Splitter |
2pcs 1:4/2:4, or 1 pcs 1:8/2:8 |
||
|

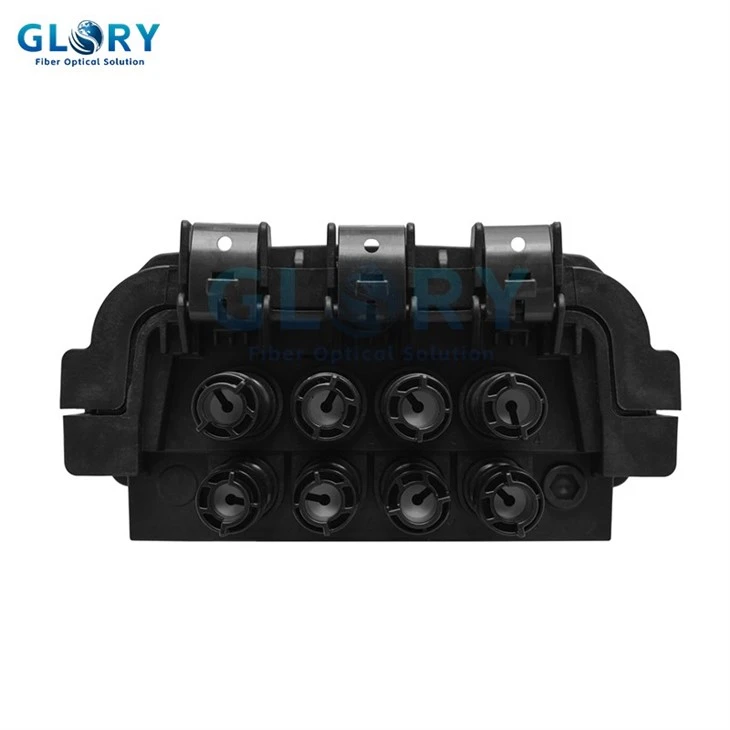

Entry port & cable dia. |
2 inlet & 2 outlet for φ8-φ12mm cable. 8 pcs SC adapter ports for 8 figure drop Cable 2x3 mm |
||
|
Raw material |
Closure body: P.P +GF Tray: ABS |
||

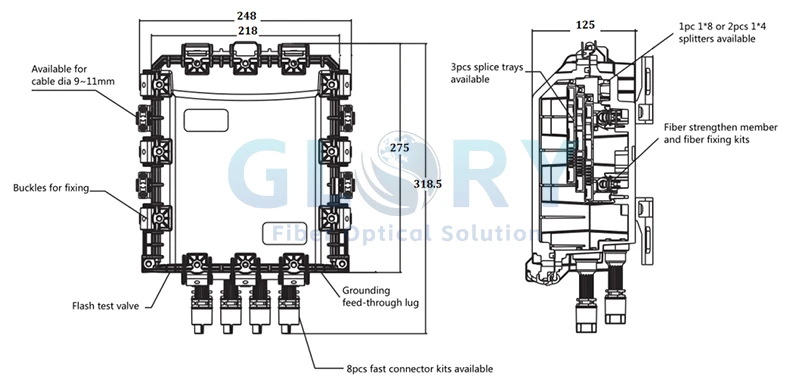

Exterior Structure Diagram:
Features:
• Long lifetime: Approximately 25 years.
• High protection rating: IP68, dust-proof and waterproof.
• Easy installation: Ready for pole mounting; installation kits included.
• Easy maintenance: The internal splice tray can be removed to access the wiring.
• Unique design: Allows cables and pigtails to follow separate paths without interfering with each other.
• Reusable enclosure: The compact small NAP CTO box fiber enclosure can be opened and reused without replacing the sealing material.
Applications:
• CATV environment
• Telecommunications
• Passive fiber optic systems
• Customer premises environments
• Carrier Networks and fiber optic networks
• Data communications networks
• Local area networks
