Adss Optical Fiber Cable

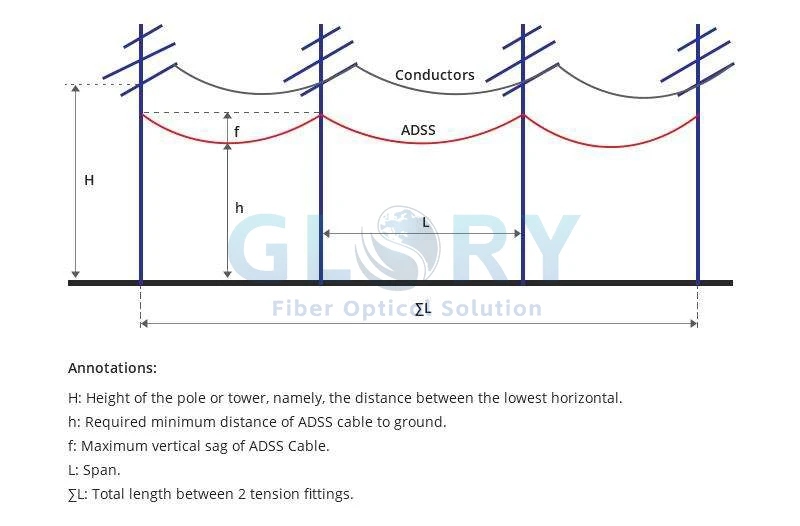

The ""All Dielectric Self-Supporting (ADSS)"" Optical Fiber Cable are designed for aerial self-supporting applications at short, medium and long span distances. ADSS cables offer a rapid and economical means for deploying optical fiber cables along existing aerial rights-of-way. They are being deployed by cable television operators, telephone companies, municipalities and emerging network operators, in addition to electric power utilities.

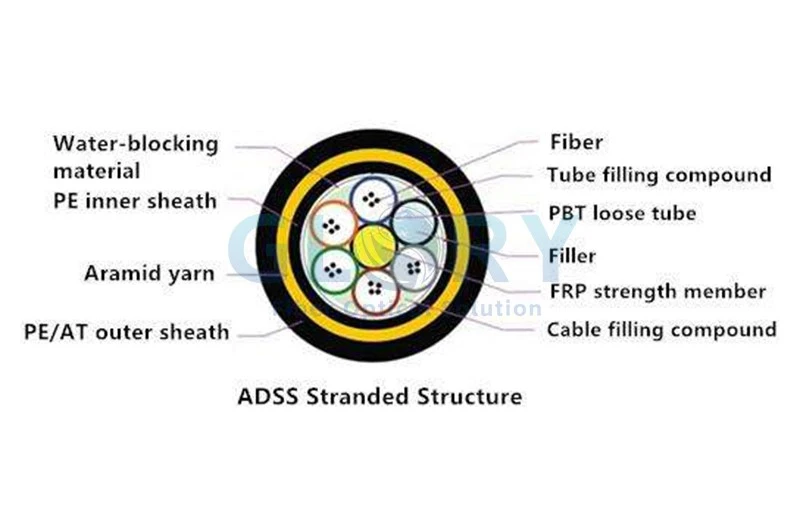

The ADSS Fiber Cable consists of a number of tubes/elements according to the specified number of fibers. The elements are usually fiber-containing tubes; however fillers may be used to preserve the cable geometry. Two to twelve color-coded fibers are loosely laid in each tube which is filled with a water-blocking gel. The tubes are stranded around a dielectric central strength member and bound in a jacket. A water-swelling tape is helically wrapped around the cable core. Aramid yarn strength members are helically laid to supply peripheral strengthening of the cable. The outer jacket is tightly bound over the aramid yarn layer. For long span applications a double jacket design can be considered. A ripcord is located under each jacket layer to facilitate its removal. For up to 30 fiber cables, the ""ADSB"" design is applicable, for 32-144 fibers the ""ADSC"" design is applicable. Dry cable designs, ballistic protection and other cable designs are available upon request.



•Long distance telecom, LAN in high voltage area or access to telecom network;
•For power transmission system, much thunder areas and high electro-magnetic interference.



•Small cable Dia, light weight, 1,500m span, low attached load on tower.
•Tension strength is over 90KN.
•Non-metal structure, good insulation, anti-thunder.
•Fine production technology, even force for aramid fiber, with superior stress flexibility.
•Anti gun fire.
•Anti electro-corrosion.
•Adapt for bad climate.
•May construct without power cut, a power line failure doesn't influence cable's normal transfer.
•loose cover GYTA cable core, non-metallic core reinforced.
•Tension units are elastic modulus aramid fiber.
•Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E) ≤25KV/m.





ADSS With Grade A Sheath (Parts)
Structure drawing	Order Type Model	ADSS-PE 24 M15.5/ A	ADSS-PE48 M17.7 / C	ADSS-PE72 M21.2 / D
	Fiber count	24fiber	48fiber	72fiber
	Size of tube	φ2.1mm	φ2.6mm	φ3.0mm
	Cable diameter	φ13.4mm	φ14.9mm	φ16.4mm
	Cable weight	139kg/km	172kg/km	209kg/km
	RTS	38.8kN	44.3kN	56.6kN
	Linear expansion coefficient	2.2×10-6/℃	2.0×10-6/℃	1.8×10-6/℃
	Young's modulus	16.5kN/mm2	17.5kN/mm2	18.6kN/mm2



ADSS With Grade B Sheath (Parts)
Structure drawing	Order Type Model	ADSS-AT 24 M14 / A	ADSS-AT48M15.2 / C	ADSS-AT72 M21.2 / D
	Fiber count	24fiber	48fiber	72fiber
	Size of tube	φ2.1mm	φ2.6mm	φ3.0mm
	Cable diameter	φ13.2mm	φ14.3mm	φ16.3mm
	Cable weight	146kg/km	169kg/km	220kg/km
	RTS	35kN	37.9kN	52.9kN
	Linear expansion coefficient	4.5×10-6/℃	4.8×10-6/℃	3.6×10-6/℃
	Young's modulus	15.5kN/mm2	14.9kN/mm2	17.9kN/mm2

ADSS With Grade B Sheath (Parts)
Structure drawing	Order Type Model	ADSS-AT144 M12.3 / D
	Fiber count	144fiber
	Size of tube	φ3.0mm
	Cable diameter	φ20.7mm
	Cable weight	344kg/km
	RTS	30.8kN
	Linear expansion coefficient	3.5×10-6/℃
	Young's modulus	6.22kN/mm2





Q: What are the benefits of an ADSS fiber cable?

In most cases, ADSS cable will provide an efficient and optimal solution for aerial cabling or outside plant (OSP) deployments. However, the most remarkable advantages of optical fibre are:

•Its dependability and low fiber cable price.

•A fiber optic cable is strong enough to allow installation lengths of up to 700 meters between support towers.

•ADSS cable is lightweight and small in diameter to reduce the load on tower structures caused by cable weight, wind, and ice.

•To maintain low optical loss throughout the cable's life, the internal glass optical fibres are supported with no strain in the cable's design.

•The cable is jacketed to protect the fibers from moisture.

•The jacket also shields the polymer strength elements from the effects of UV light from the sun.

•Circuits up to 100 km long are possible without repeaters using single-mode fibre cables and light wavelengths of 1310 or 1550 nanometers.

•A single cable can transport up to 144 fibers.

Glory Optical Communication is one of the largest and best all dielectric self-supporting aerial cable ADSS cable manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized all dielectric self-supporting aerial ADSS Optical Fiber Cable in stock with our factory. Also, free sample is also available if necessary.
