Pre-connect Fiber Distribution Box
Item: Pre-connect Fiber Splitter Distribution Box
Model: GL- FSN-0416R
•IP65 rate
• Simple structure, easy to operate
• Impact-resistant, corrosion-resistant, safe and worry-free
The Pre-connected Fiber Distribution Box (FDB) with outdoor adapters is typically installed at user access points to connect distribution and drop cables. In FTTx networks, it collaborates with optical splitters to split fibers and manage signal distribution. Its functions include protecting fiber splicing points and organizing fiber routing paths. FDBs are often outdoor-type enclosures.
- Product Introduction
16 Ports Pre-connect Fiber Distribution Box
The Pre-Connect Fiber Distribution Box is a high-performance solution for FTTx networks, engineered to simplify fiber optic deployment in outdoor or harsh environments. Featuring a factory-preassembled design with SC waterproof connectors, this plug-and-play system eliminates on-site splicing, reducing installation time while ensuring compatibility with industry-standard equipment like Huawei. Its IP65-rated ABS/PC composite housing offers robust protection against water, dust, UV exposure, and extreme temperatures. The box supports 16 configurable ports with integrated PLC splitters, enabling high-density connectivity for seamless fiber splicing, splitting, and storage. Designed for flexibility, it supports pole, wall, or aerial mounting. Ideal for FTTH/FTTx, 5G infrastructure, and smart city projects, it reduces labor and maintenance costs by 40% and complies with CE, RoHS, and ISO certifications.
The GL-FSN-0416R Pre-Connect Fiber Splitter Distribution Box features FastConnect technology, enabling faster and simpler deployment of FTTH networks. It facilitates fiber splicing, termination, and splitting between distribution optical cables and drop cables while protecting optical fibers. The box includes an input port for the distribution cable and supports up to 16 FastConnect drop cable outputs. It is compatible with two 1:8 splitters (2 pcs).
Specifications:
|
Item Name |
Pre-Connect Fiber Distribution Box GL-FSN-0416R |
|
Size |
319x214x133 mm |
|
IP Rate |
IP65 |
|
Material |
PC+ABS (Gray) |
|
Input cable diameter(mm) |
Uncut 8-14mm |
|
Branch hole cable diameter(mm) |
16mm |
|
Max capacity |
48 Fibers |
|
Waterproof Adapter |
16 pcs |
|
Splitter type |
2 pcs x8 Mini type splitter |
|
Working temperature |
-40℃～+85℃ |
|
Mounting Method |
Wall/pole/aerial mounting |
|
Working temperature |
-40℃~+85℃ |
|
Relative humidity |
≤85% (+30℃) |
|
Atmospheric pressure |
70KPa~106Kpa |
|
Main technical data |
Insertion loss: ≤0.15dB UPC return loss: ≥50dB APC return loss: ≥60dB |
Size pictures:

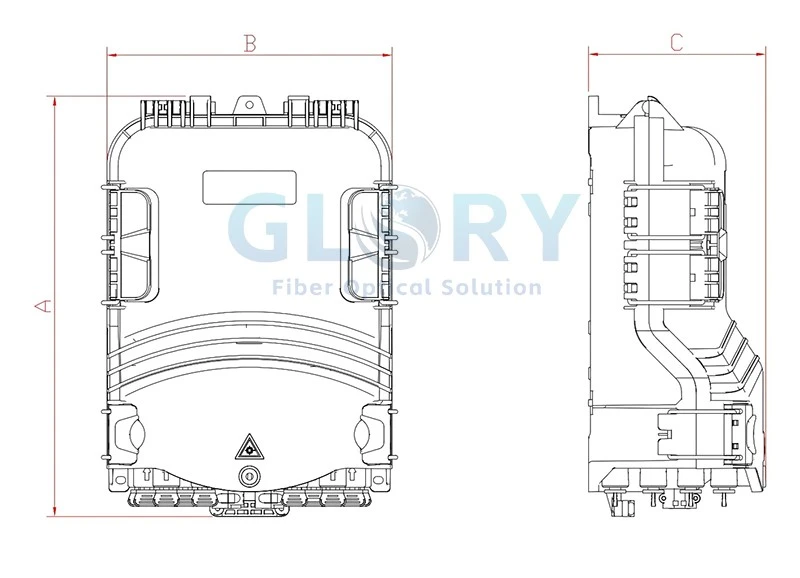

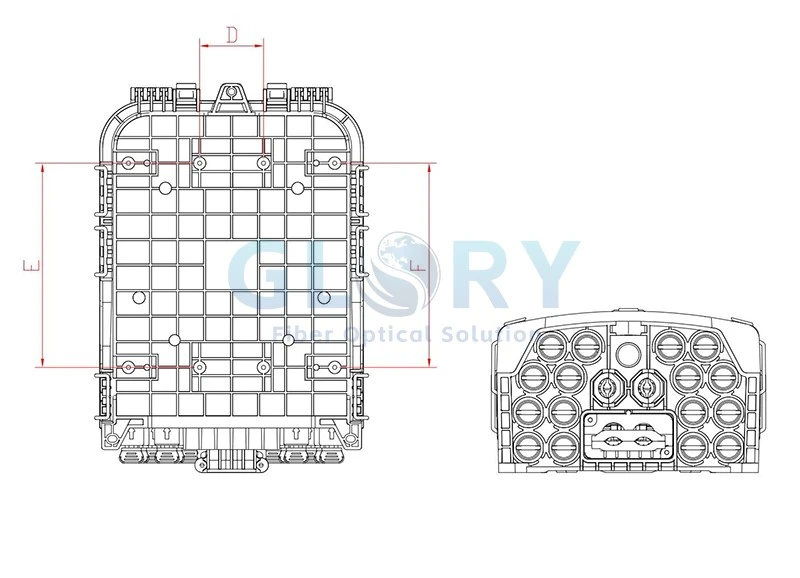

Box size A x B x C (mm): 319.3x214x133 Installation Size D x E x F(mm): 52 x 166 x 166
Features:
• Robust Protection: IP65-rated waterproof/dustproof enclosure with durable PC+ABS material ensures outdoor resilience.
• Pre-connect Design: Plug-and-play setup via pre-terminated cables and modular trays for quick, tool-free installation.
• High Capacity: 16 output ports support splitters (2 pcs 1×8 PLC) and store up to 1m excess fiber.
• Versatile Mounting: Wall/pole/rack installation with cable glands and waterproof routing for indoor/outdoor use.
• Optimal Performance: Low insertion loss (≤0.2dB) and wide temperature tolerance (-40°C to +85°C).
• Enhanced Security: Lockable design and tool-free trays safeguard against tampering and simplify maintenance.
Applications in Telecommunication and CATV Networks:
The 16-Port Pre-connect Fiber Distribution Box IP65 plays a vital role in telecommunication and CATV networks by serving as a robust, high-density fiber management and distribution node for outdoor environments. Designed with IP65-rated protection, it ensures reliable performance in harsh conditions, including resistance to water, dust, and extreme temperatures.

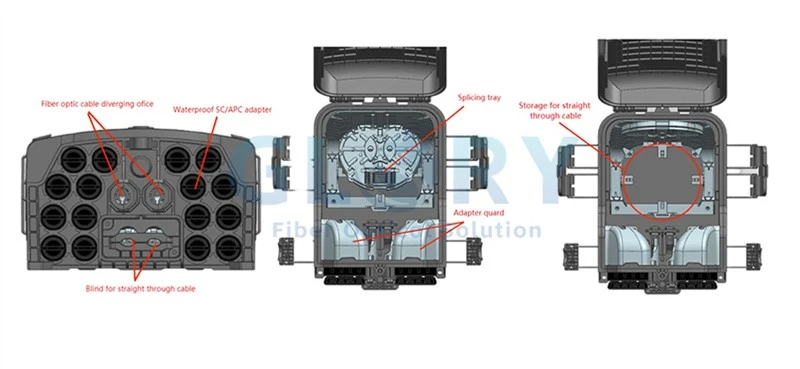

In telecommunication networks, the Fiber Distribution Box acts as a critical junction for connecting feeder cables from central offices to subscriber drop cables, enabling efficient signal distribution through integrated PLC splitters (1×8 or 1×16) and pre-terminated adapters (SC/APC, LC). Its double-layer design separates splicing/splitter modules (upper tray) from fiber storage (lower tray), simplifying maintenance while maintaining bend radius control (>40mm) to minimize signal loss.
For CATV networks, it supports optical signal splitting and distribution for cable TV services, ensuring stable transmission of high-bit-rate data and video signals. Additionally, security features such as anti-theft locks and organized cable management ensure long-term reliability and compliance with network scalability demands.

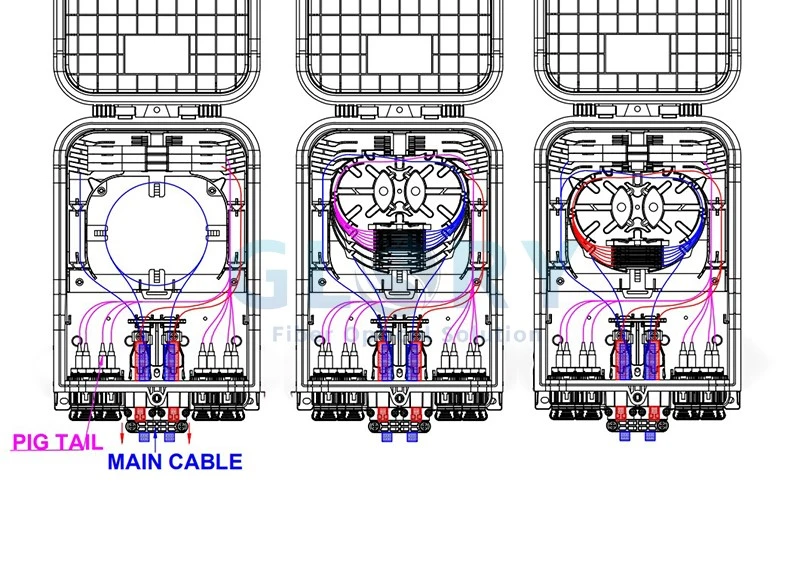

Internal Cable Path:
Mounting Method:
• Wall-mounted installation

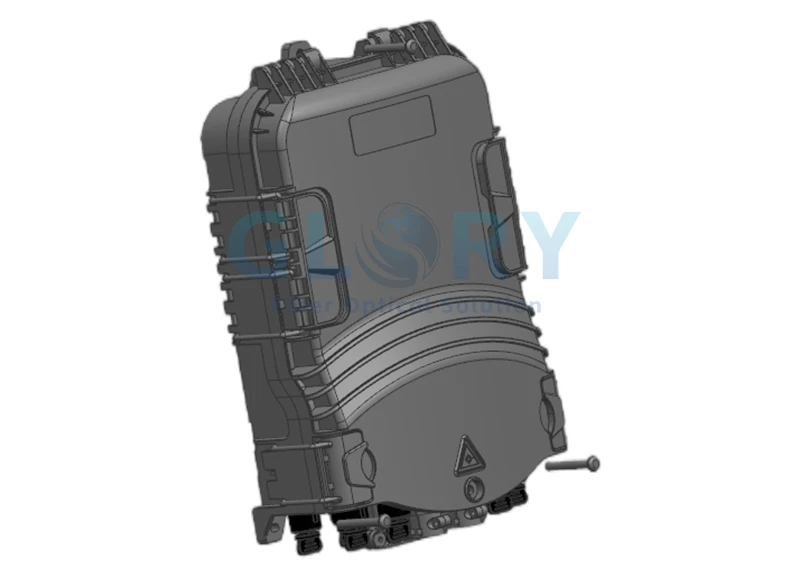

Drill 3 holes in the wall according to the installation size,use the expansion bolt Φ7.5x40,set the Fiber Splitter Distribution Box to match up the holes and use bolt to fix.
• Pole-fixingg

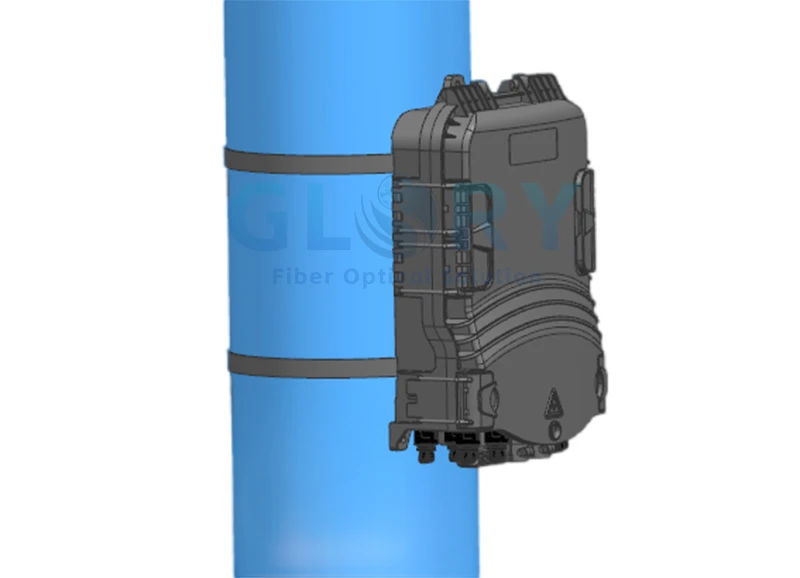

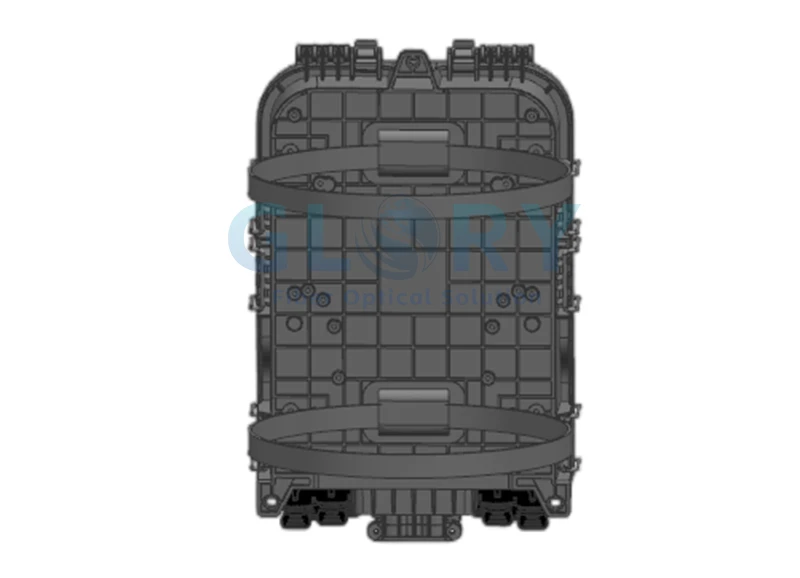

Fix two pieces of the hoop to the telecom pole

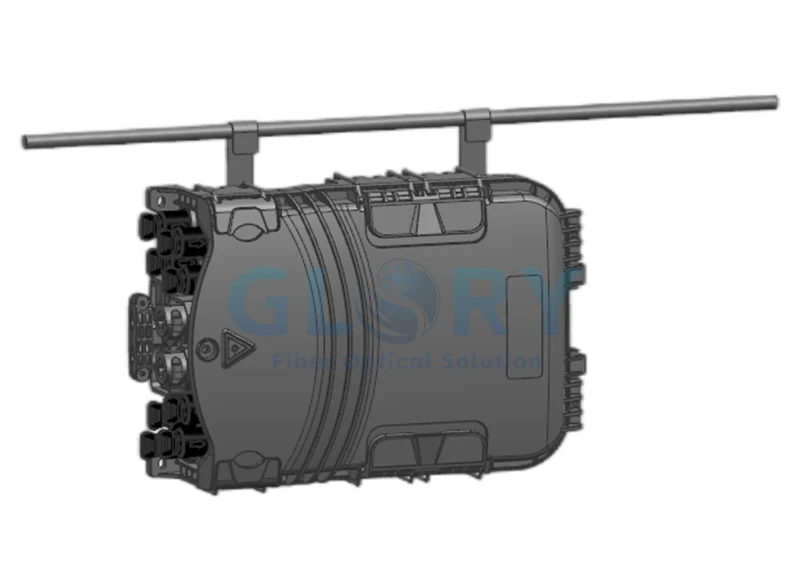

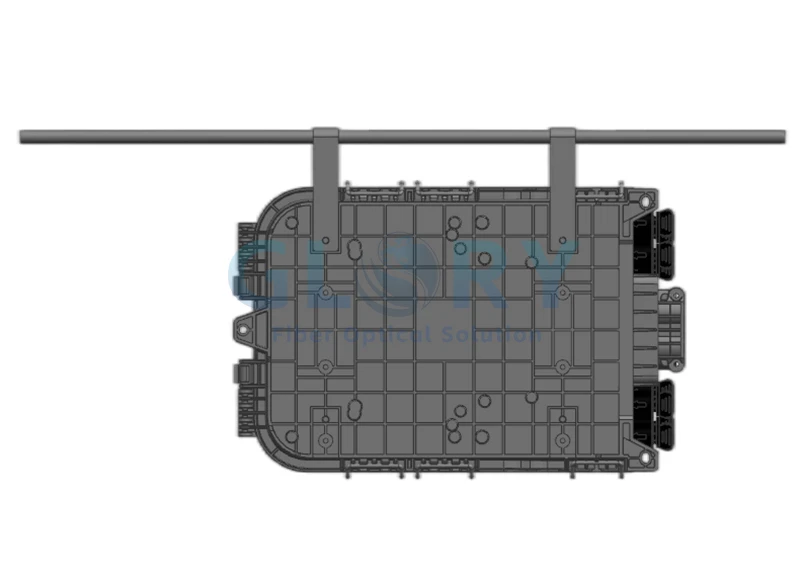

• Aerial installation
Install the two hooks on the fiber optic cable, install the bottom plate on the box body, and then bolt it to prevent the shell from falling off.
