4 Core Single Mode Fiber Optic Cable

Item: 4 Core Single Mode Fiber Optic Cable Outdoor Aerial G652D Armored Fiber Cable 24 core
Product Description:
Products: 4 Core Single Mode Fiber Optic Cable
Fiber Type: Single Mode, Multimode
Fiber Count: 4 To 288 Core G652D
Strength Member: Central Steel Wire or Fiber glass Reinforced Plastic (FRP)
Out sheath: MDPE/HDPE
Application: Outdoor Duct and Direct Burial
Material of Jacket: Black Polyethylene (PE)
Warranty: 10 Years

  • Product Introduction

A 4 core single mode fiber optic cable is a type of optical fiber cable that contains four individual fiber strands or cores within a single cable jacket. Each core within the cable is capable of transmitting data independently, allowing for multiple data streams to be transmitted simultaneously. This 4 core single mode fiber optic cable is often used in telecommunications and networking applications to provide high-speed and reliable data transmission. The cores within the cable are typically color-coded for easy identification and are surrounded by protective layers to ensure durability and minimize signal loss.

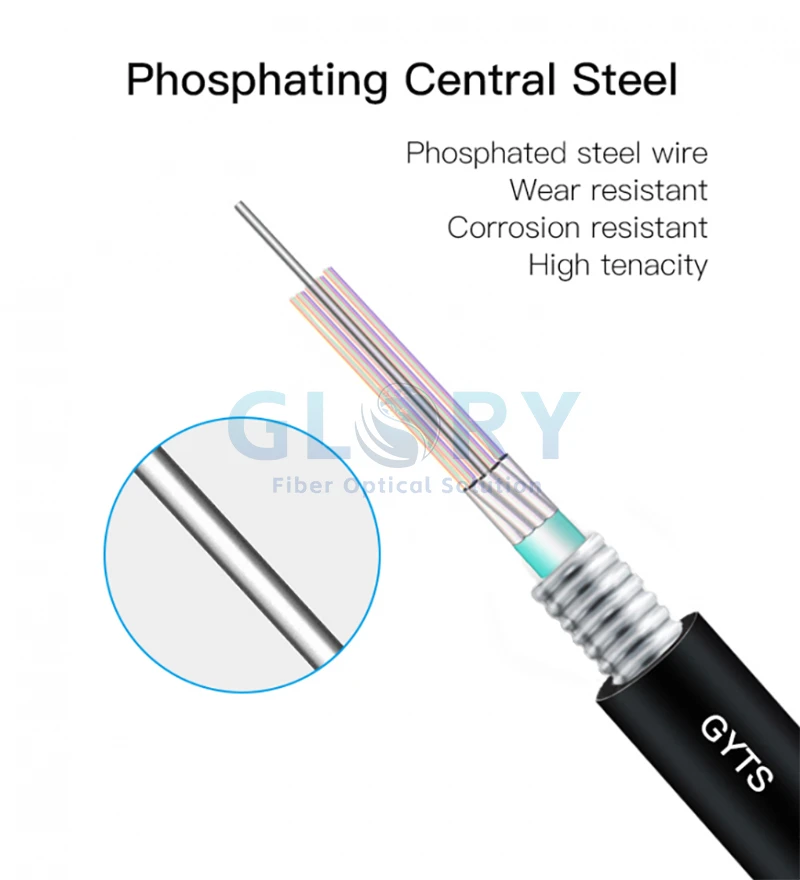

4 Core Single Mode Fiber Optic Cable structure



Optical Characteristics:



Fiber Type

G.652D

G.655

50/125^m

62.5/125^m

Attenuation (+20X)

@850nm





≤3.0 dB/km

≤3.3 dB/km

@1300nm





≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

<0.40dB/km





@1550nm

≤0.22 dB/km

<0.23dB/km





Bandwidth

@850nm





≥500 MHz·km

≥200 MHz·km

@1300nm





≥1000 MHz·km

≥500 MHz·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength

≤1260nm

<1450 nm







Features of 4 Core Single Mode Fiber Optic Cable:



• Good mechanical and temperature performance
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Crush resistance and flexibility



Application of 4 Core Single Mode Fiber Optic Cable:



• Backbones and Access, installed in ducts, Underground conduits.
