Om3 Multimode Fiber Cable

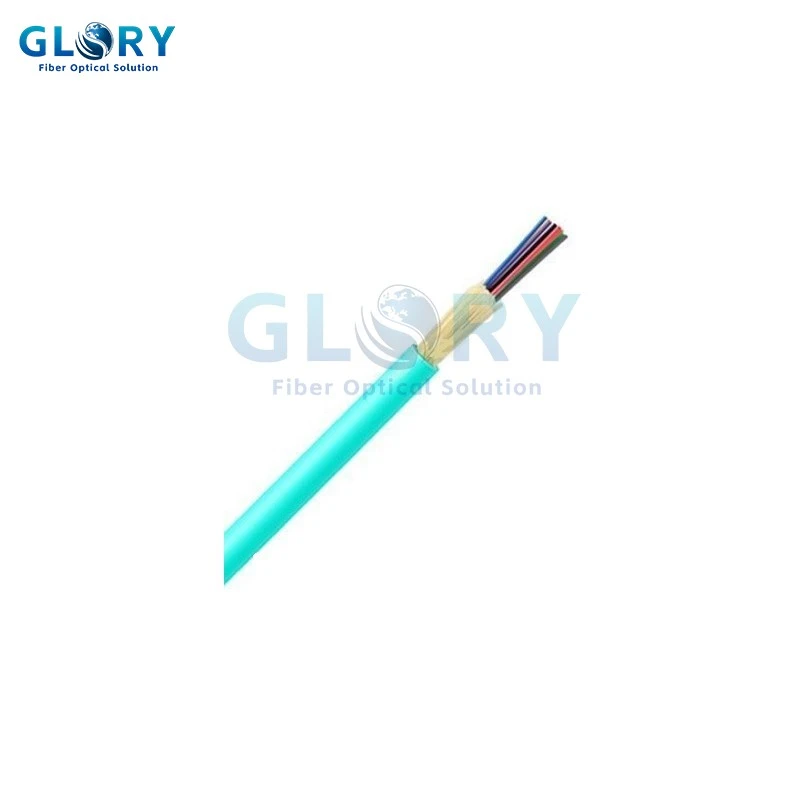

Item: OM3 Multimode Fiber Cable 6 Core Tight Buffered Fiber optic cable 50/125u Indoor
•Indoor OM3 6 Core Tight Buffered Fiber LSZH
•Optical Fiber Cable GJFJH type Aqua
•50/125um Multimode
•Aramid yarn
•OD: 4.5mm
- Product Introduction
Om3 Multimode Fiber Cable
OM3 Multimode Fiber Cable is primarily used for indoor cabling and connecting various indoor communication equipment, instruments, and devices. The cable structure consists of multiple 900μm (single-mode or multi-mode) flame-retardant, tightly buffered optical fibers as the transmission medium, with a layer of aramid yarn serving as the strength member. The outer layer is extruded with a flat protective buffer made of polyvinyl chloride (PVC) or low-smoke, non-halogen (LSZH) material, which is flame-retardant.
OM3 Multimode Fiber Cable is constructed by evenly wrapping strands of aramid yarn around 900μm or 600μm tight-buffered fibers to act as the strength member. The assembly is then encased in a PVC or LSZH jacket for protection.
Specifications:
|
Optical Characteristics |
||||||
|
Fiber Type |
Attenuation |
OFL |
Effective Mode Bandwidth |
10G Ethernet Link Length SX |
||
|
1310nm/1550nm |
850/1300nm |
850nm |
850nm |
|||
|
Typical Value |
Max. |
MHZ.km |
MHZ.km |
m |
||
|
SM 9/125 |
0.36/0.22 |
0.4/0.3 |
/ |
/ |
/ |
|
|
|
850nm/1300nm |
|
|
|
||
|
MM62.5/125 |
3.0/1.0 |
3.5/1.5 |
≥200/500 |
/ |
/ |
|
|
MM50/125 |
3.0/1.0 |
3.5/1.5 |
≥500/500 |
/ |
≥150 |
|
|
MM50/125 |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≥300 |
|
|
MM50/125 |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≥550 |
|
|
Minimum Bending Radius |
||||||
|
Fiber Type |
SM 9/125 |
MM62.5/125 |
MM50/125 |
MM50/125 |
MM50/125 |
|
|
Bending Radius |
16 |
30 |
30 |
30 |
30 |
|
|
Color of Jacket |
||||||
|
Fiber Type |
B1 |
A1b |
A1a |
A1a OM3 |
A1a OM4 |
|
|
Color |
Yellow |
Orange |
Orange |
Aqua |
Purple |
|
Features of OM3 Multimode Fiber Cable:
• Small diameter, lightweight, flame-retardant, and excellent strippability
• Low attenuation, high flexibility
• No transition connector box or pigtail required between tight-buffered fiber and cable, reducing installation costs by eliminating the need to clean waterproofing ointment.
• Compliance with standards: GJFJV cable meets YD/T1258.2-2009, ICEA-596, GR-409, and IEC794 standards.
• Storage/Operating Temperature Range: -20°C to +60°C
Application of OM3 Multimode Fiber Cable:
• General indoor applications
• Trunk cable between floors
• Data centers
