Optical Termination Box
Model: GL-FTB-16H Fiber Optical Termination Box
16-Port Fiber Terminal Box for Drop Cable and Splitter
- Product Introduction

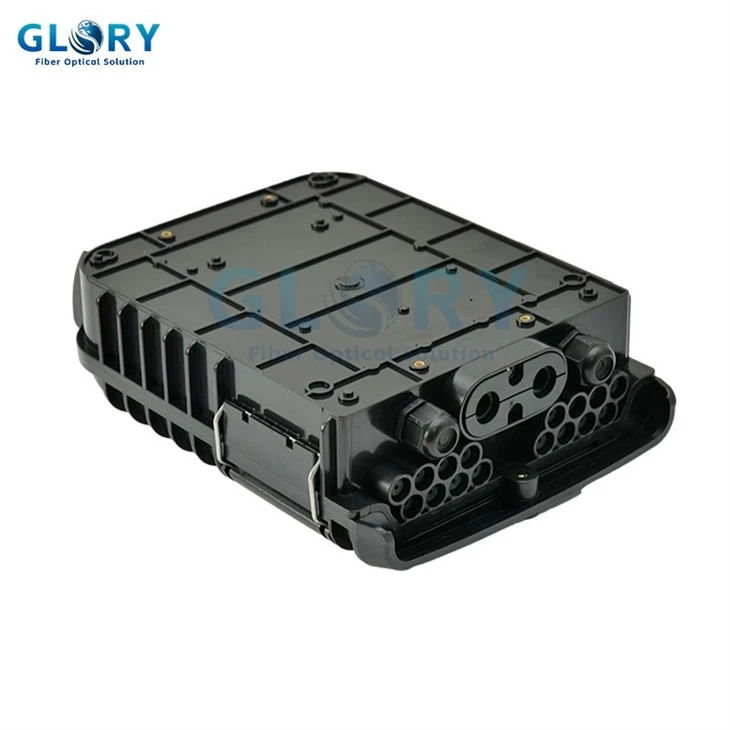

16 Ports Fiber Optical Termination Box
The Optical Termination Box serves as a termination point for the feeder cable to connect with the drop cable in FTTx communication network systems. Fiber splicing, splitting, and distribution can be performed in this box, while also providing robust protection and management for FTTx network deployment.
Specifications:
|
Model: |
Fiber Optical Termination Box GL-FTB-16H |
Network: |
FTTH FTTX |
|
Product Name: |
Fiber Optic Terminal Box |
Material: |
PC+ABS |
|
Waterproof: |
IP65 |
Working Temperature: |
-40℃~+85℃ |
|
Relative Humidity: |
≤85%(+30℃) |
Insertion Loss: |
≤0.15dB |
|
UPC Return Loss: |
≥50dB |
APC Return Loss: |
≥60dB |
|
Size(mm): |
290x210x82 |
Color: |
Black |
|
Input cable dia.： |
12~15mm |
Installation Method: |
Wall/pole |
Features

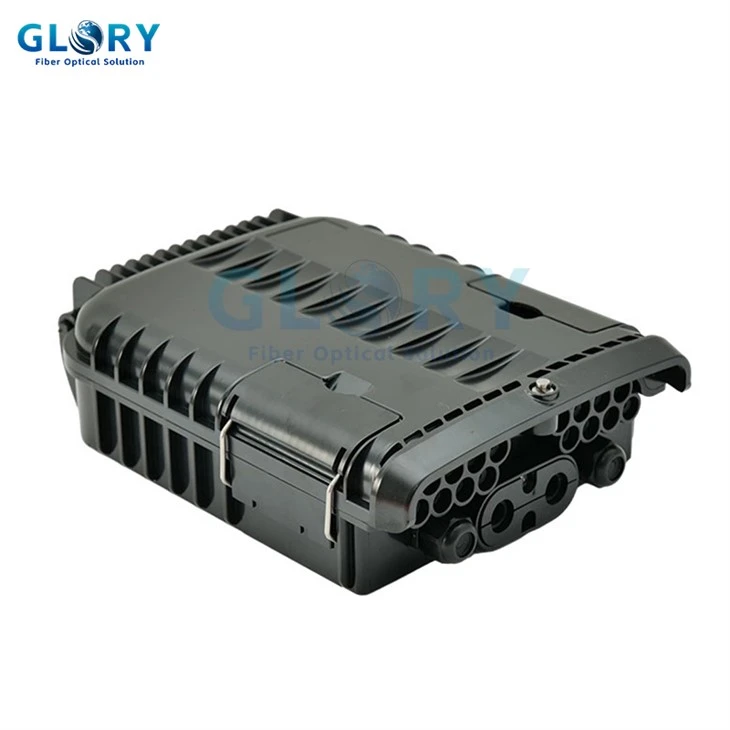

• Fully enclosed structure.
• Material: PC+ABS; waterproof, dustproof, weather-resistant; IP65 protection rating.

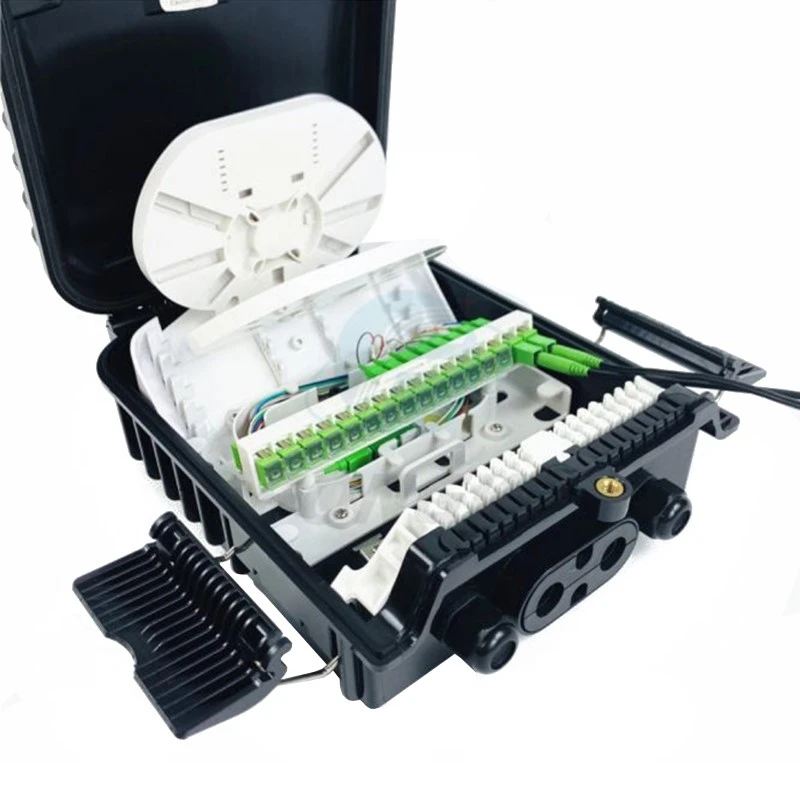

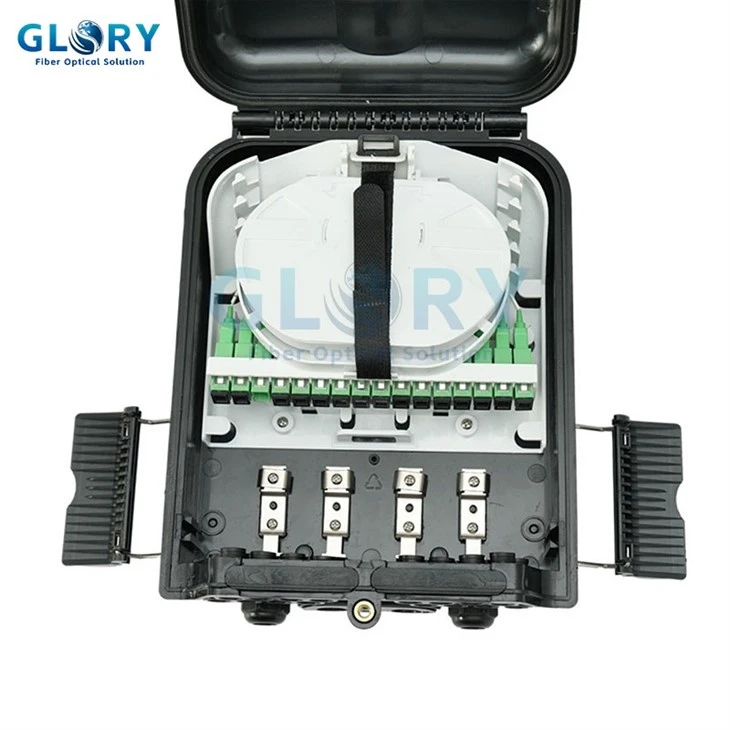

• All-in-one functionality: Clamps feeder and drop cables; splices, secures, stores, and distributes fibers.
• Dedicated pathways ensure cables, pigtails, and patch cords operate without interference; supports micro PLC splitter installation for easy maintenance.

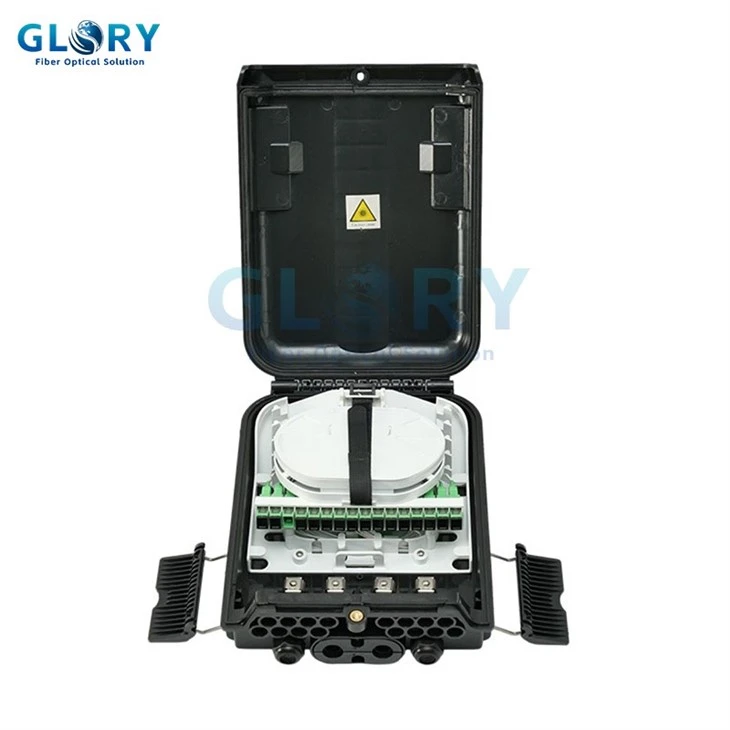

• Flip-up distribution panel; feeder cable accessible via preparation port for easy installation and maintenance.
• Wall-mount or pole-mount installation; suitable for indoor/outdoor use.

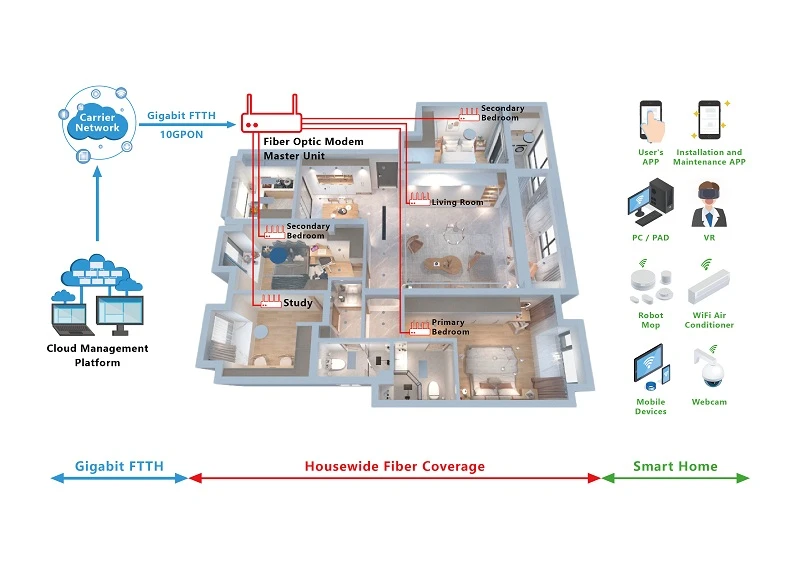

16 Ports Fiber Optical Termination Box Application in FTTH：
Acts as a termination hub for feeder/drop cables, housing splices and PLC splitters (1×16) to distribute signals. Provides IP65-rated environmental protection and includes trays for organized fiber management to prevent tangling and damage during FTTH deployments.
Fiber Optical Termination Box Serves urban high-density areas via centralized splitting in wall-mounted boxes, reducing OLT ports. In rural zones, enables cost-saving distributed splitting and fits hybrid indoor/outdoor sites via pole/wall mounting.
