1x16 Optical Splitter
Item: 1x16 Fiber Optical Splitter Mini Blockless 0.9mm
The 1x16 Fiber Optic PLC Splitter (Mini Blockless 0.9mm) is a planar lightwave circuit splitter that utilizes planar lightwave technology. It is widely used in FTTX, EPON, BPON, and GPON networks.
- Product Introduction

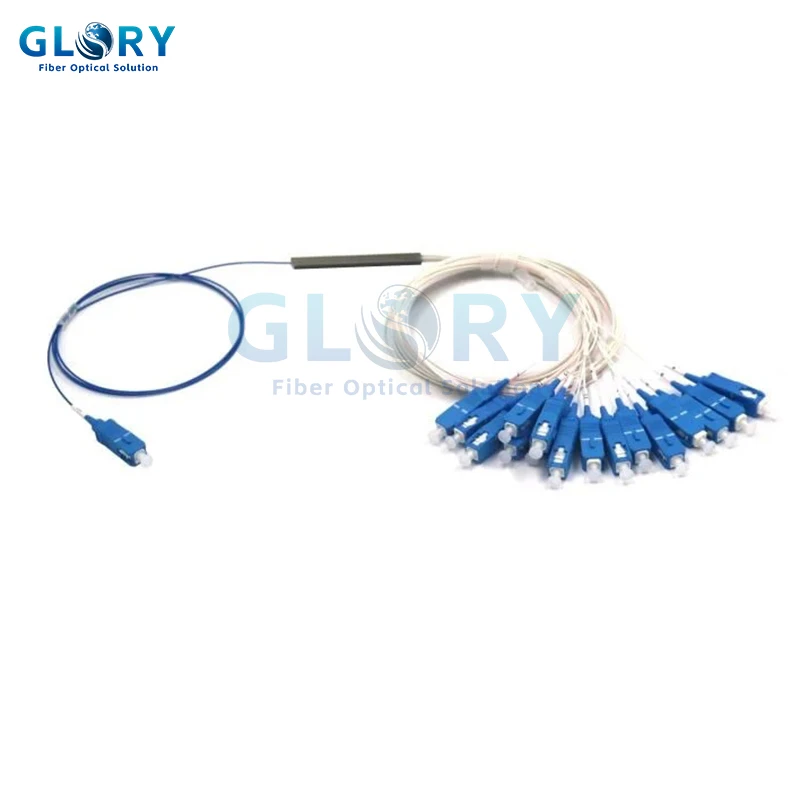

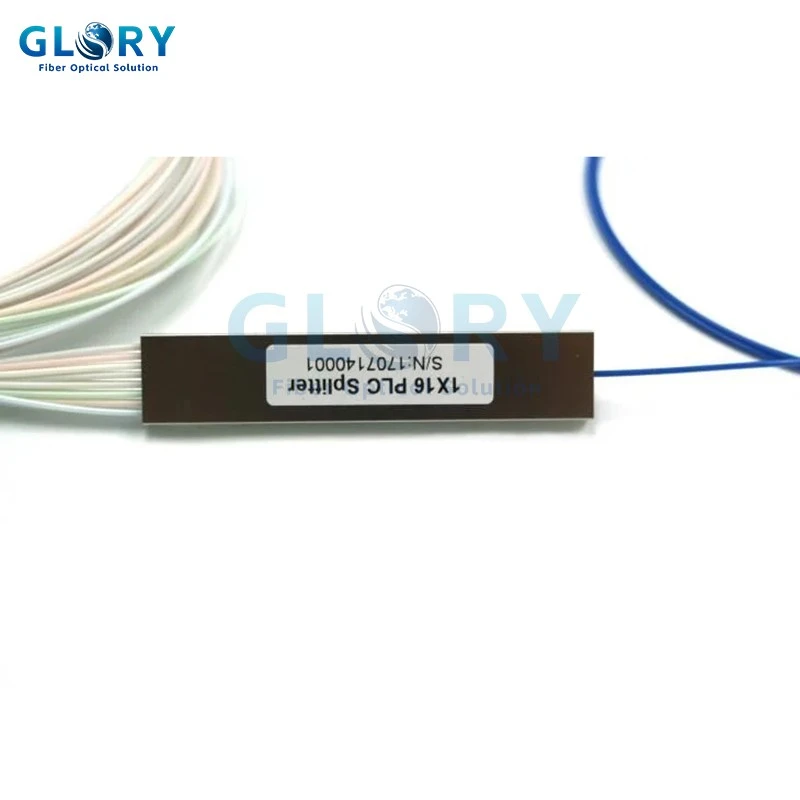

1x16 Fiber Optical Splitter Mini Blockless 0.9mm
Our 1x16 Blockless Fiber Optic PLC Splitter delivers stable operation with minimized signal attenuation, reduced polarization-related attenuation, and robust durability for long-term dependability. Engineered to withstand demanding environmental conditions and mechanical stress, this splitter simplifies deployment while enhances oversight and control of fiber infrastructure. It operates effectively across all wavelengths (1260–1620 nm) without performance variations. Our solutions meet Telcordia 1209 and 1221 certification requirements and comply with RoHS environmental directives.
Every 1x16 Optical Splitter undergoes exhaustive verification processes adhering to the most stringent industry benchmarks. We ensure outstanding quality through precision manufacturing, streamlined production cycles, and cost-efficient pricing models. Our commitment to superior craftsmanship ensures network operators achieve optimal signal distribution with improved maintenance efficiency across diverse optical applications.

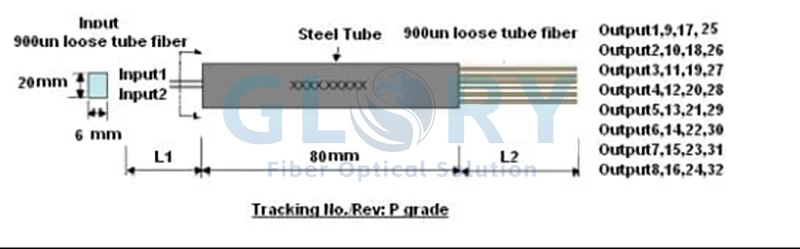

Below shows 1x16 Mini PLC Splitter structures:
Specification:
|
Type |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
|
Operating wavelength(nm) |
1260-1650 |
||||||
|
Insertion loss (dB) |
Typical |
3.6 |
7.2 |
10.5 |
13.5 |
17 |
19.5 |
|
Max |
4 |
7.5 |
11 |
14 |
17.2 |
21 |
|
|
Uniformity (dB) |
Typical |
0.4 |
0.5 |
0.6 |
1 |
1 |
2 |
|
Max |
0.6 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
|
Polarization Dependent Loss (dB) |
Typical |
0.1 |
0.1 |
0.15 |
0.2 |
0.2 |
0.2 |
|
Max |
0.15 |
0.15 |
0.25 |
0.3 |
0.3 |
0.3 |
|
|
Wavelength dependent loss (dB) |
Typical |
0.1 |
0.1 |
0.15 |
0.3 |
0.3 |
0.3 |
|
Max |
0.2 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
|
Return loss (dB) |
Mini |
55/50 |
|||||
|
Directivity (dB) |
Mini |
55 |
|||||
|
Operating temperature (℃) |
-20 to 85 |
||||||
|
Storage temperature (℃) |
-40 to 85 |
||||||
|
Optical fiber type |
SMF-28 or customer required |
||||||
|
Optical fiber length (m) |
1.2 or customize |
||||||
Features:
• Optimized signal consistency with sub-0.2dB insertion loss
• <0.1dB polarization-induced performance variation
• Thermal-humidity cyclic stability (85°C/85% RH certified)
• Vibration/shock resistant mechanical architecture
• GR-1221 COR & GR-1209 STR compliance guaranteed
• YD1117-2001 standardized optical components with TLC qualification
Applications:
The 1x16 Fiber Optical Splitter Mini Blockless is a compact, high-performance passive device designed for Local Area Network (LAN) applications, enabling efficient distribution of optical signals from a single input to 16 output channels. Featuring a blockless, space-saving design with 0.9mm output fibers, it ensures low insertion loss and uniform splitting ratios, ideal for FTTH, data centers, and enterprise networks. Its miniaturized structure supports easy installation in high-density environments, while maintaining reliable signal integrity across wavelengths (e.g., 1310/1550 nm), making it essential for scalable and cost-effective LAN optical distribution.
