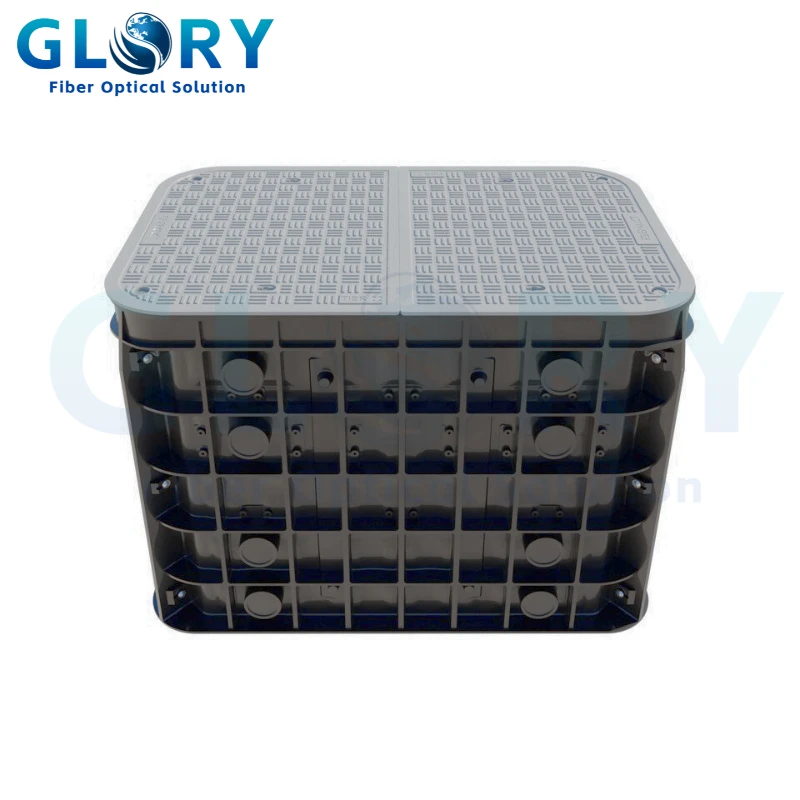

Fiber Optic Handhole
Model: Fiber Optic Handhole GL58
Features a modular, disassemblable design that simplifies transportation, on-site assembly, and installation.
Height:36 inch
weight:180 lbs
Fastening：S.S Screw
- Product Introduction
Telecom handhole Chamber For Underground Fiber Optic Cable Installation
The Fiber Optic Handhole GL58 manhole system is engineered specifically for underground distribution networks, with particular application in fiber optic and electrical industries. Crafted from innovative composite materials, this system stands out as an optimal solution-delivering superior strength, lightweight portability, flexibility in installation, and significant time and cost savings when compared to traditional concrete manholes.
Specifications.
| GW58-6 | Manhole | Cover | |
| Load Bearing | SCTE-77 Tier22 | SCTE-77 Tier22 | |
| Internal size | 30x48 inch | 26x39 inch | |
| External size | 33x51 inch | ||
| Height | 36 inch | 3 inch | |
| Weight | 180 lbs | 66 lbs, 2 lids | |
| Fastening | S.S Screw | S.S Screw | |
product key technologies

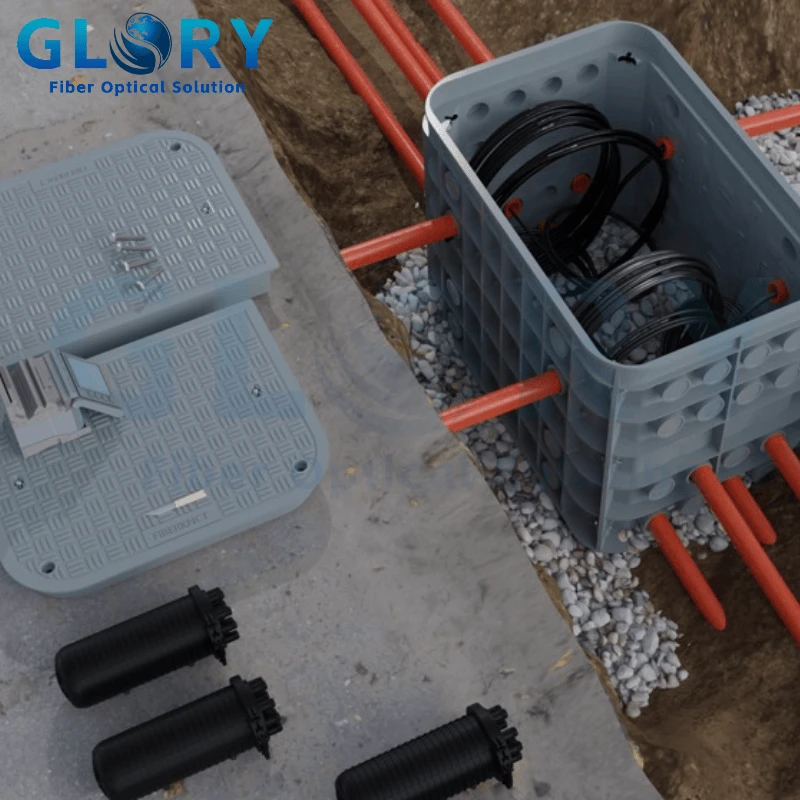

modular, disassembly-friendly design
The Fiber Optic Handhole GL58 stands out with its modular, disassembly-friendly design, significantly streamlining transportation, on-site installation, and overall deployment workflows. Its user-centric structure ensures efficient adaptability across diverse field conditions while maintaining ±0.5mm installation accuracy-a critical factor in enhancing project efficiency and minimizing logistical complexity .

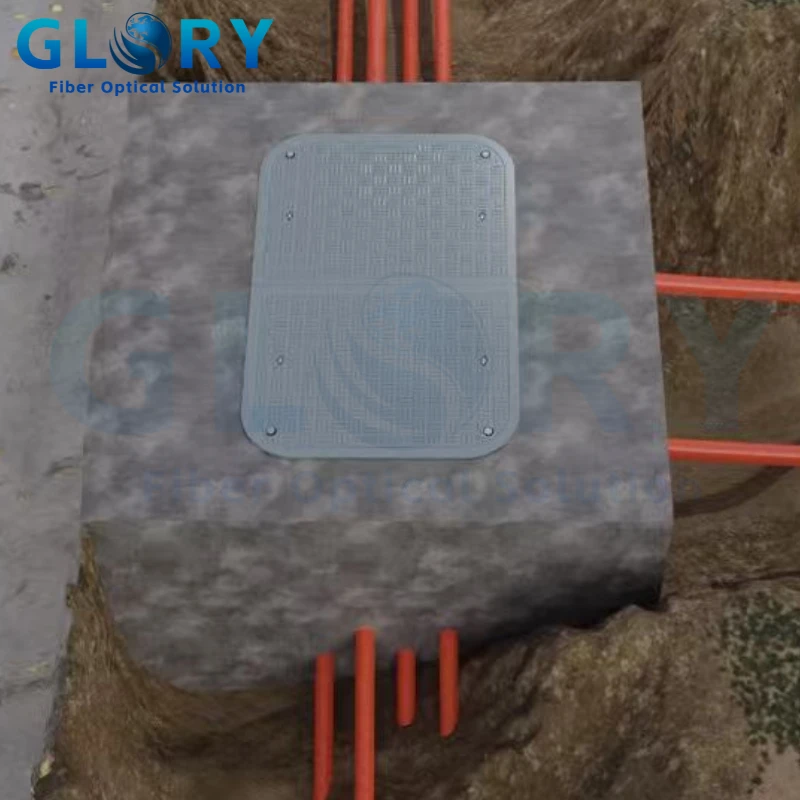

High-Strength Lightweight Composite Material Structure
Constructed from high-strength, lightweight composite materials, the system achieves an optimal balance between durability (rated for 10+ years of outdoor service) and portability (weight reduced by 35% compared to metal alternatives). This design innovation not only lowers transportation costs by 20% but also reduces manual labor during assembly by 40%

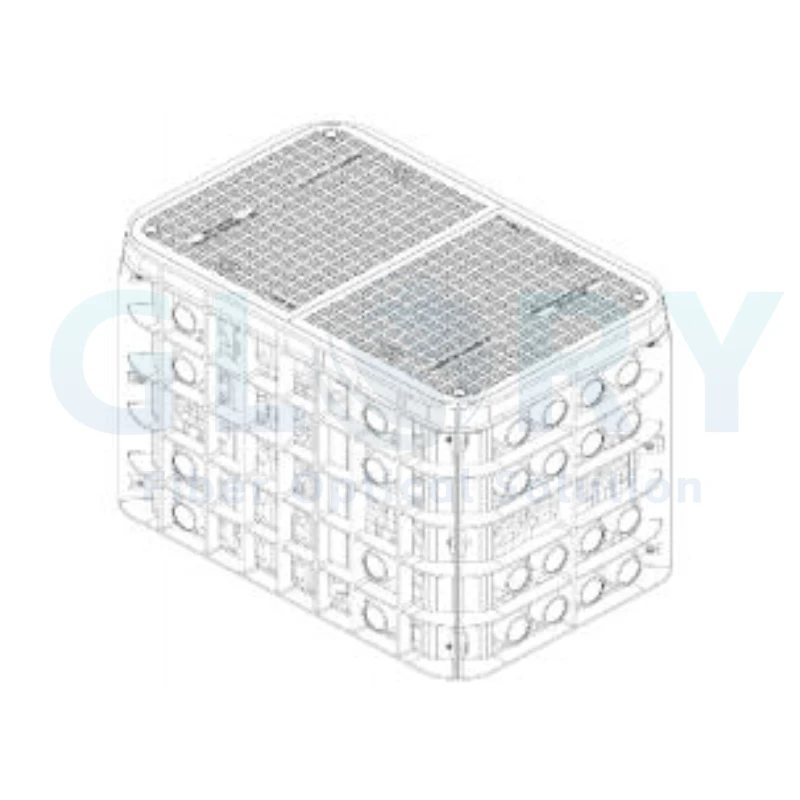

Structure Drawing.
