Fiber Optic Terminal
The Model: MST Series 4 ports GL-MST02-04 Fiber Optic Multiport Service Terminal Box
It is a cost-effective fiber distribution solution newly designed for outdoor use. Compared to traditional products, this FTTX Enclosure offers easy operation and high compatibility. It can be installed via wall-mounting, aerial installation, or pole mounting, depending on the requirements. The Multiport Service Terminal is not only suited for FTTH applications, but also performs reliably in FTTA or other harsh environments.
- Product Introduction

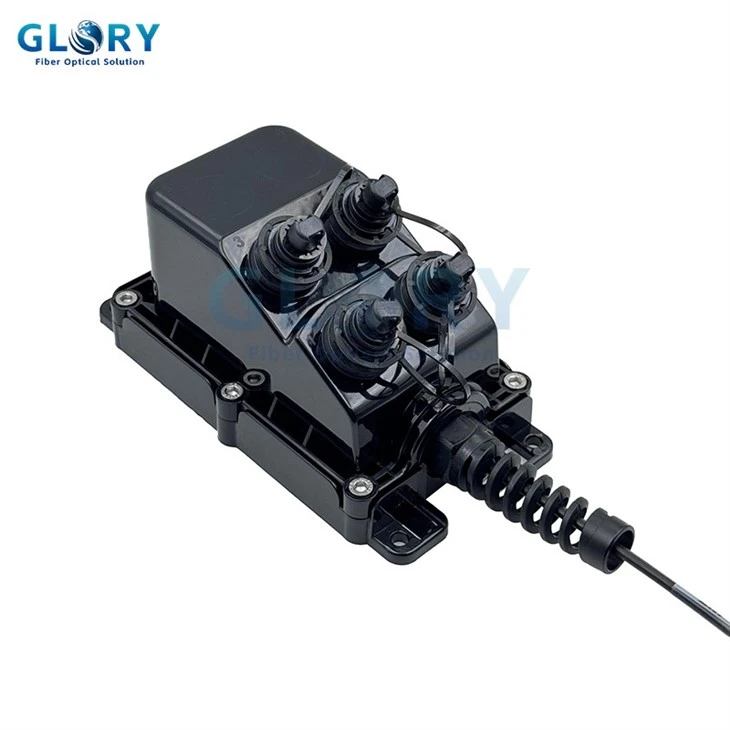

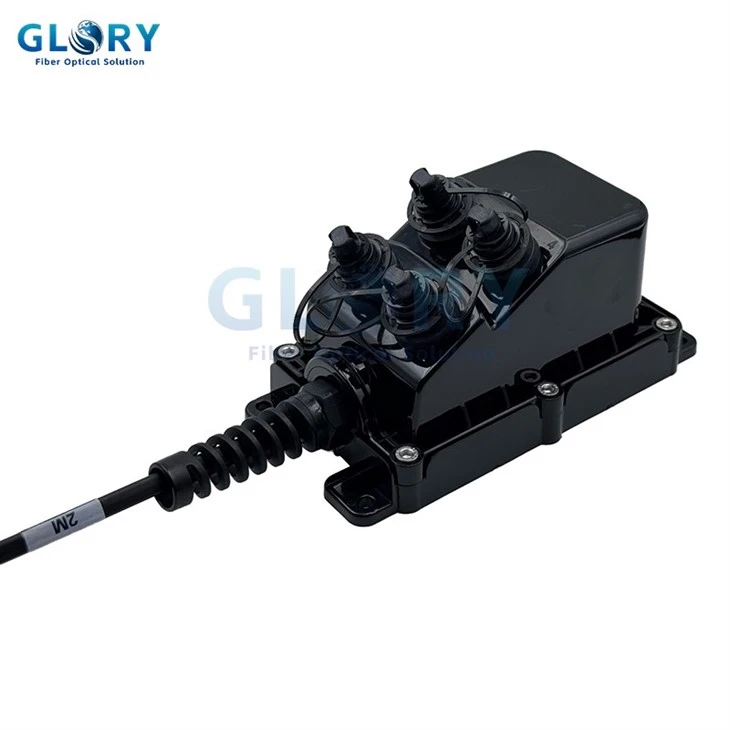

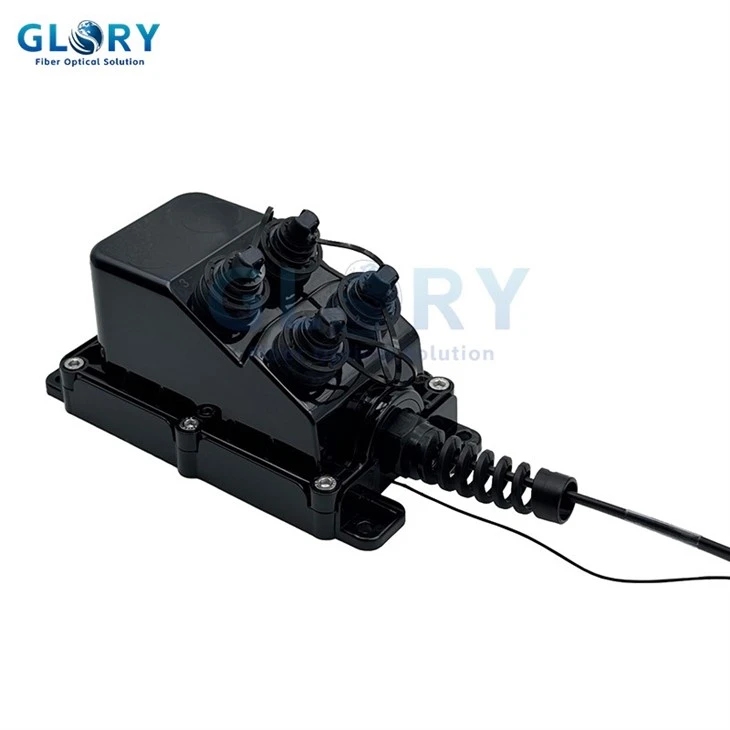

4 ports GL-MST02-04 MST Fiber Optic Multiport Service Terminal Box
The Fiber Optic Terminal Box revolutionizes fiber indexing deployments with its innovative technology, significantly enhancing the benefits of plug-and-play, hardened connectivity.
Tailored specifically for fiber indexing applications, these multiport service terminals offer providers versatile mounting options such as pole, pedestal, or handhole installations. Engineered for swift and straightforward setup, they empower providers to expedite deployment timelines and reduce labor overhead.
With a robust design ensuring longevity and reliability, these multiport service terminals are designed to meet both current demands and future network challenges effectively.
Specifications:
|
Product Name |

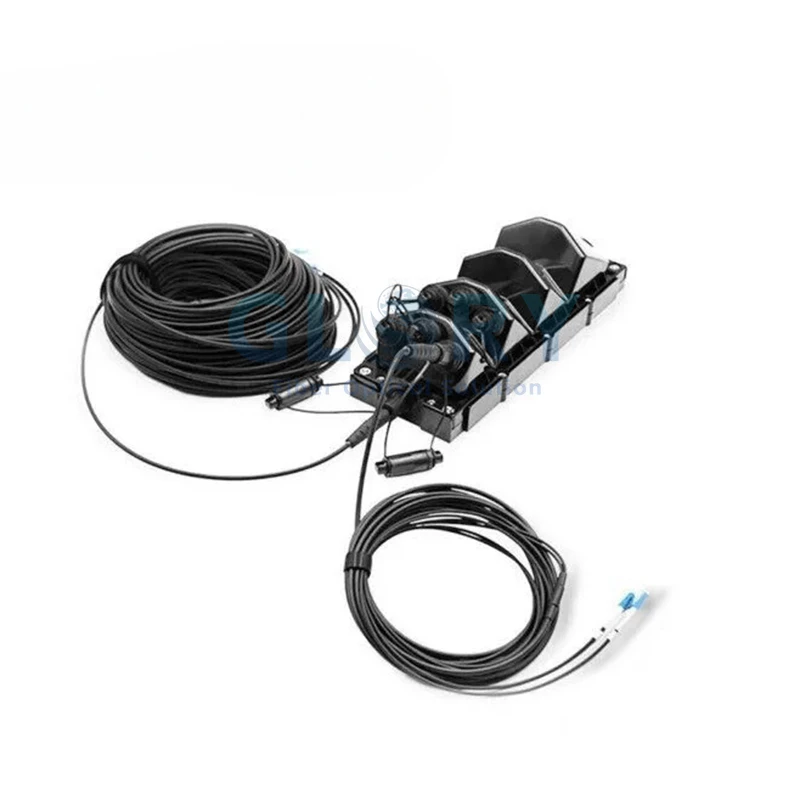

Multiport Service Fiber Optic Terminal - Single-tube Gel-Filled Cable, Toneable, Stubbed with MPO pigtails |
|
Cable Type |
Toneable or Dielectric Cables |
|
Cable Diameter |
4.5*9.8mm 4.5*8.1mm 4.0*7.0mm |
|
Installation |
Pole, pedestal, handhole or strand mounting options |
|
Stub Length |
20ft,40ft,50ft,60ft,80ft,100ft,150ft,200ft,250ft,300ft,500ft,800ft,1000ft(Other lengths are available) |
|
Insertion loss, Typical |
≤0.15dB |
|
Reflectance, Typical |
-65dB |
|
Adapter Type |
SC/APC Hardened adapter, Compatible with H connector |
|
Fiber Ports |
2,4,6,8,12 |
Features:
• Compatible with ODVA, OptiTap, Mini SC, ODC, PTLC, PTMPO connectors, or power adapters, facilitating versatile assembly options.
• Available in factory-sealed configurations or can be assembled in the field as per installation requirements.
• Strong enough: Capable of withstanding long-term pulling forces up to 1200N, ensuring durability and reliability.
• Offers configurations ranging from 2 to 12 ports, accommodating both single and multi-fiber harsh environment connectors.
• Available with PLC or splice sleeve for fiber divide.
• Fiber Multiport Service Terminal Box Features an IP67 rating, ensuring protection against dust and water ingress for reliable outdoor use.
• Designed for flexible installation methods including wall-mounting, aerial installation, or mounting on poles, adapting to various deployment scenarios.
• Designed with reduced angles and heights to prevent interference between connectors during operation, ensuring smooth functionality.
• Meet IEC 61753-1 standard, ensuring adherence to quality and performance benchmarks.
• Cost-effective: save 40% operating time, optimizing efficiency and deployment timelines.
Applications:
• Home Office Setup: Simplifies connectivity between laptops, monitors, printers, and other peripherals for streamlined work-from-home setups.
• Gaming Hub: Enables easy connection of gaming consoles, monitors, headsets, and controllers, enhancing the gaming experience with minimal latency.
• Audiovisual Studio: Facilitates seamless integration of cameras, monitors, recording equipment, and speakers, ideal for multimedia editing and production environments.
• Conference Room Connectivity: Supports multiple laptops, projectors, and audio systems, ensuring smooth presentations and collaborative meetings.
• Entertainment Center: Centralizes connections for TVs, streaming devices, sound systems, and gaming consoles, optimizing home entertainment setups.
