IP65 FTTH Fiber Optic Splitter Distribution/Termination Box



The Fiber Splitter Distribution Box is a rugged, weatherproof enclosure engineered for outdoor FTTH/FTTB deployments. This compact solution provides a dust-tight, water-jet resistant housing that integrates passive optical splitters and splice protection within a single secure unit. Designed for demanding environments, it features organized cable management with 16 drop cable ports and 16 SC adapters, ensuring reliable signal splitting while protecting fiber termination points.



Ideal for high-density network installations, this box serves multi-dwelling units by centralizing splitter management in limited spaces. Its wall-mounted or pole-mounted design consolidates all passive equipment with 16-core splicing capacity and optimized internal fiber routing. The all-in-one enclosure delivers efficient fiber distribution for broadband access networks.

Feature

• IP65 Protection level

• Fiber bend radius control more than 40mm

• 1*16 micro type Splitter can be installed

• Suitable for the fusion splice

• Easy to maintain and extend the capacity

Specification

Model	Fiber Splitter Box FATP-0416S
Dimensions	316(L)×250(W)×126(H) mm
Material	PP+GF
Color	Black
Sealing Type	Mechanical Seal
Max Capacity	16 splicing fibers (1 tray,16 fiber/tray)
Splicing Capacity	16
Capacity of splice tray	16
Number and size of cable entries	2 Ports X Ø 5-12mm 2 Ports X Ø 8-16mm 2 in 2 out
Component	Splitter	2 X 1:8 or 1 X 1:16	Adaptor	16pcs SC type
Application	Wall /Pole Mounted

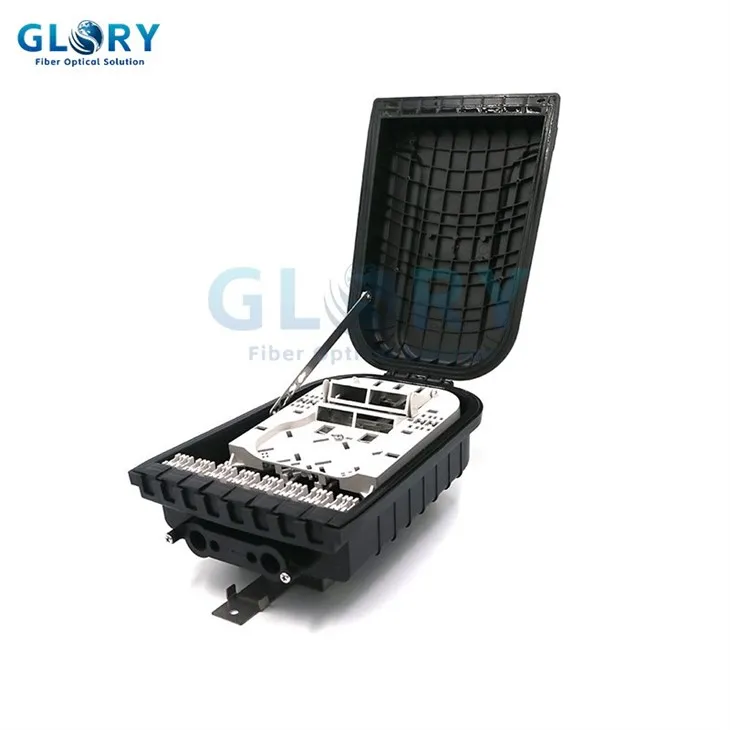

Product Appearance:

Fiber Splitter Box Structure Drawing:





Package Information:



Model	QTY	Weight(kg)	Carton size	Gross weight(kg)
GL-FATP-0416S	10 PCS	1.67	530*335*610mm	18.50



FAQs:



Q： Is the fiber splitter distribution box suitable for direct burial?​​
A： While the IP65 rating provides excellent protection against dust and water jets, this is generally ​​not​​ equivalent to a rating suitable for direct burial; IP65 enclosures like this are typically designed for above-ground mounting on poles or walls where they are exposed to weather but are shielded from prolonged submersion or significant soil pressure, and direct burial applications usually require specific designs meeting higher protection standards like IP67 or IP68.



​​Q：What are the typical applications?​​
A: Typical applications for this IP65-rated fiber splitter box include serving as a ​​Fiber Distribution Point (FDP) or access node​​ in FTTH networks, mounted on poles, walls, or pedestals in the local loop; acting as a ​​building entry point​​ where feeder cables enter multi-dwelling units (MDUs) for signal splitting and distribution; functioning within ​​outdoor cabinets​​ as part of larger distribution hubs; and providing a protected environment for splitters and terminations at various outdoor points between the central office and end-user premises.
