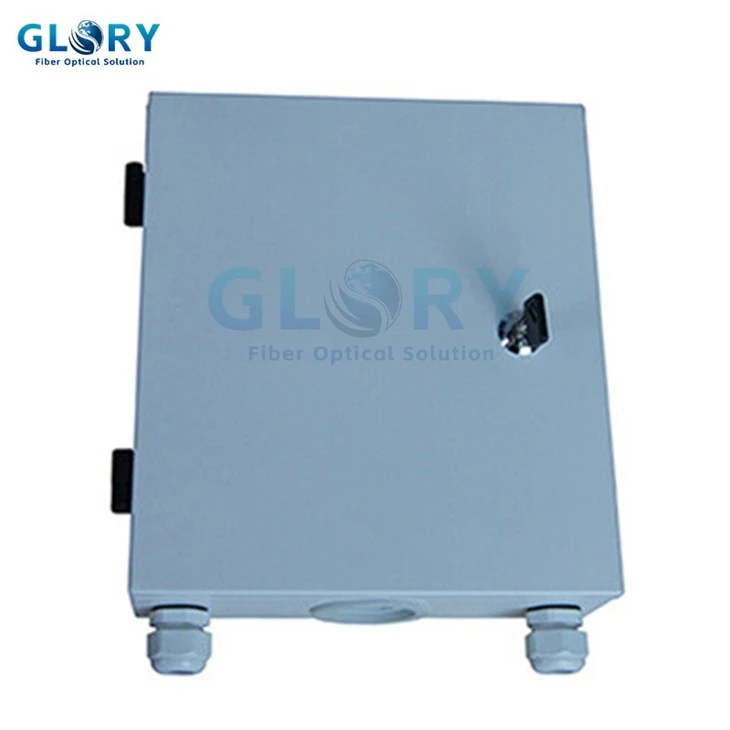

Outdoor Fiber Optic Junction Box
Model: Outdoor Fiber Optic Junction Box GL-FTB-BF12M
The Fiber Optic Junction Box is designed for harsh environments, such as outdoor premises and utility poles, in FTTX applications.
- Product Introduction
12-fibers Metal Outdoor Fiber Optic Junction Box
The outdoor metal fiber optic junction box is specially designed for FTTH or FTTB applications in both indoor and outdoor environments. This outdoor fiber optic junction box is used for splicing and distributing fiber optic cables, while also protecting fiber optic splices. The fiber termination box can manage single, ribbon, and bundled fiber cables.
The Outdoor Fiber Optic Junction Box includes splicing, distribution, and panel components, ensuring that excess fiber cords and pigtails remain organized, tangle-free, and easy to manage and operate. It provides multi-functional distribution management. It is designed for indoor/outdoor use and is suitable for wall-mounting or flush-mounting applications. It is primarily used in telecommunication equipment rooms and network equipment rooms.
Product Details:
|
Dimensions (WxDxH) |
220x250x70.5mm |
|
Material |
Cold rolled steel |
|
Adapter port |
12pcs SC simplex |
|
Max. capacity |
12 fibers |
|
Max. qty of splice tray |
1 piece |
|
Max. capacity of splice tray |
12 fibers |
|
Color |
RAL7035 |
|
Application |
Outdoor wall mounted |
Features for Outdoor Fiber Optic Junction Box:
• Up to IP55 protection with special gaskets
• Special protection tubes and bend radii to safeguard incoming fibers from excessive bending, while guiding them to the specially designed splice cassettes in a professional manner.
• Specially designed 12-port splice cassettes with professional-grade cable storage and protection.
• 100% compliant with Bellcore GR-326 standards
• Compatible with all types of connectors (ST, SC, FC, LC, MTRJ, E2000, etc.)
Applications for Outdoor Metal Fiber Optic Junction Box:
• Telecommunication networks: Facilitating fiber splicing and distribution in FTTH backbone systems or local access nodes.
• Power infrastructure: Safely housing connections in high-voltage environments due to its non-conductive metal structure.
• Industrial zones: Enabling inter-building fiber links with pole-mounted or wall-mounted installations.
• Remote sites: Supporting temporary field deployments in mining or offshore platforms with its durable, sealed design
