FTTH Connection Box

FTTH Connection Fiber Terminal Box



FTTH Connection Fiber Optic Terminal Box GL-DW-9 NID​​ is a compact fiber terminal designed for final fiber termination ​​outside the customer's premises wall​​. It provides ​​effective​​ fiber protection and convenient connectivity for end-users. The ​​lockable box design​​ ensures easy operation and ​​full functionality in a compact size​​. It ​​can accommodate up to two adaptors​​ (e.g., SC simplex or LC duplex).



Specifications:



Item Name	FTTH Connection Box GL-DW-9
Size (mm)	165×135×34
Waterproof	IP54
Cable	Suitable for outdoor cable or indoor drop cable, 3~5mm
Installation	Wall mounting
Adapters	2 pcs of LC Duplex or 2 pcs of SC Simplex

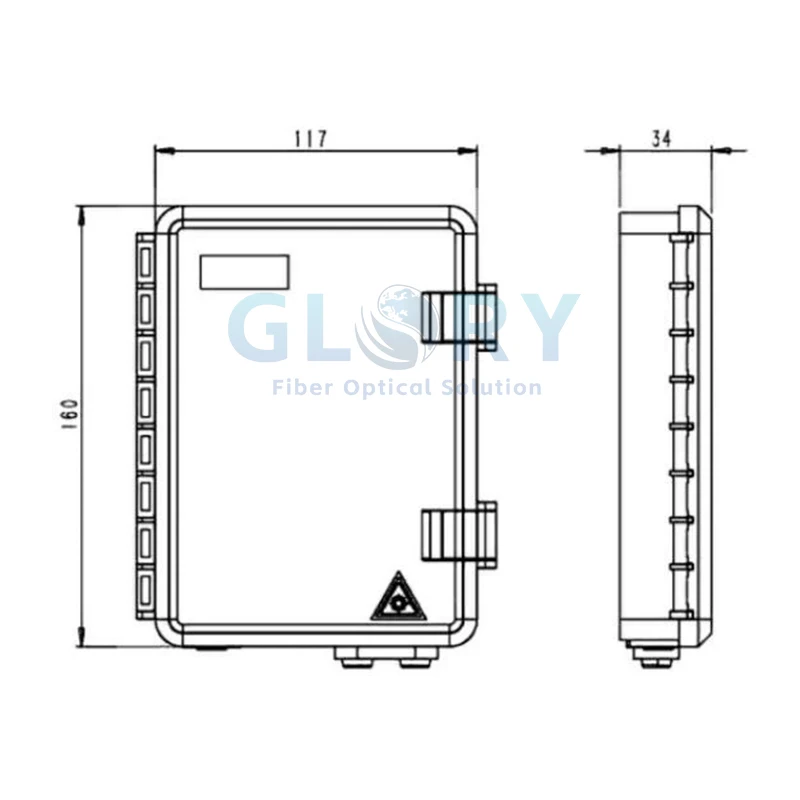

FTTH Connection Box Dimension:



Features of FTTH Connection Box:



• Polymer Synthetic Plastic Shell:​​ Flame-retardant, dustproof, and UV-resistant.
• ​​Features a beautiful appearance​​, compact structure, and lightweight design.
​​• Unique snap-on design​​ ensures quick and convenient operation of the box switch.
​​• Supports installation of 2 SC adapters.​​
• ​​Compatible with:​​ Outdoor 3-5mm optical cables or indoor flexible cables.

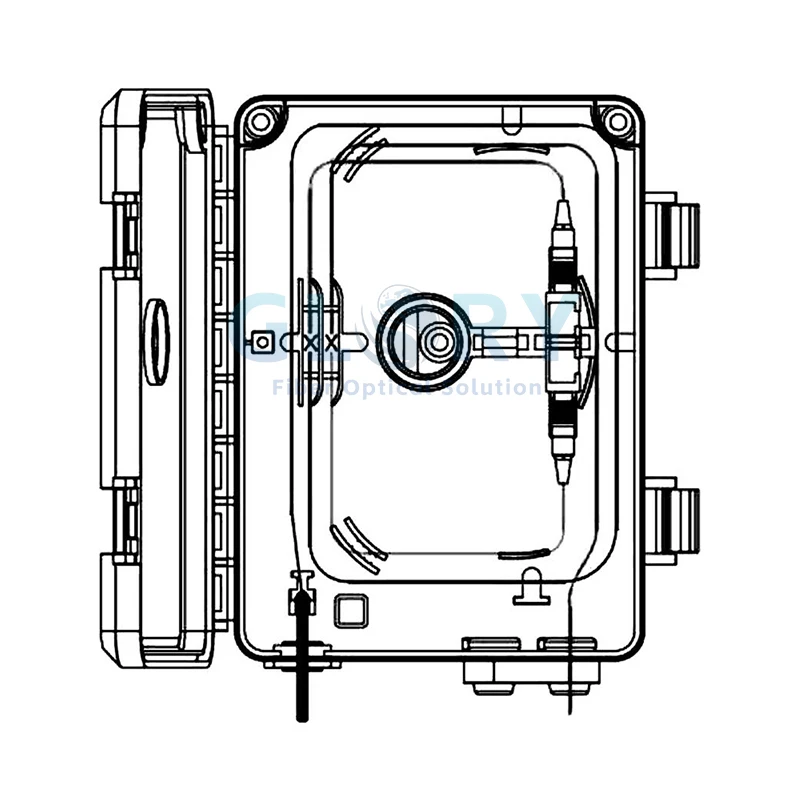

Routing Diagram:

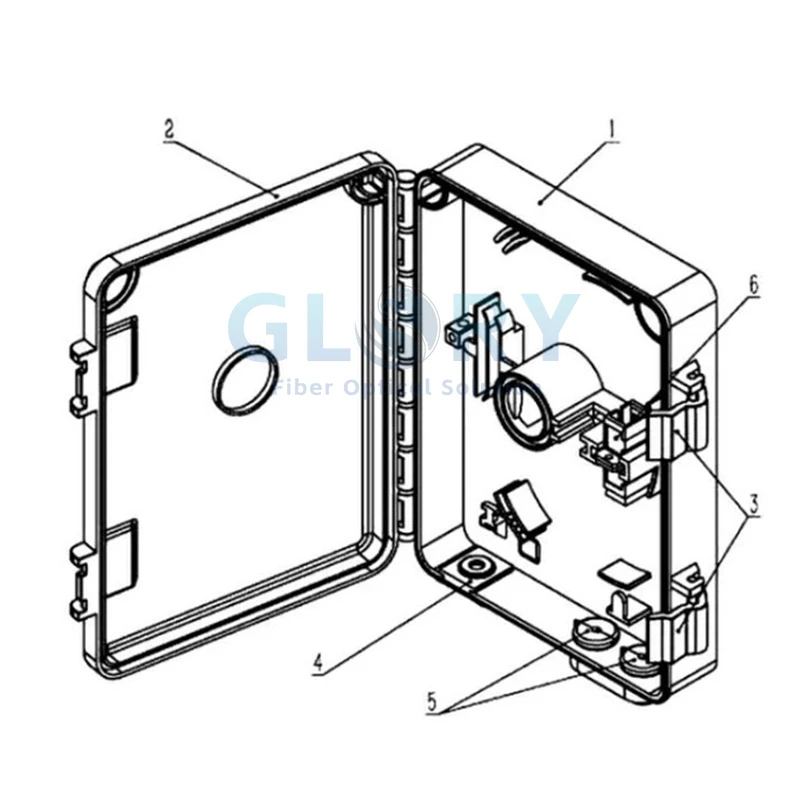

Product Details:

1. Box body 1pcs            2. Box cover 1 pce

3. Hasp 2pcs                   4. Sealing ring 1 pce

5. Sealing plug 2pcs       6. SC/APC Adapter 1pce



FTTH Connection Fiber Terminal Box: Applications and Functions​

​

1 ​​Termination Point​​:

​​• ​​Primary Function​​: Acts as the termination point for the incoming fiber optic cable from the service provider, connecting it to the customer's internal network.

​​• ​​ONT Integration​​: Often interfaces with an Optical Network Terminal (ONT) to convert optical signals to electrical signals for use in home devices (e.g., routers, phones).



2 ​​Signal Distribution​​:

​​•​​ Splitting​​: In Passive Optical Networks (PON), the FTB may house optical splitters to divide a single fiber signal to multiple users (e.g., in apartment complexes or multi-dwelling units).

​​•​​ Multi-Port Design​​: Provides ports for distributing signals to different rooms or devices within a home, enabling scalable connectivity.

​​

3 Protection and Durability​​:

​​​​• ​​Environmental Protection​​: Shields delicate fiber connections from dust, moisture, and physical damage, ensuring longevity. Often rated for outdoor/indoor installation (e.g., IP65 for outdoor use).

​​• ​​​​Cable Management​​: Organizes and secures fiber cables, reducing strain and preventing tangling or accidental disconnections.



​​4 Maintenance and Accessibility​​:

​​• ​​Central Access Point​​: Simplifies troubleshooting and upgrades by providing technicians easy access to splice points, connectors, and testing ports.

​​• ​​Diagnostic Testing​​: Allows measurement of signal strength, fault detection, and performance monitoring without disrupting service.



​​5 Deployment Scenarios​​:

​​• ​​​​Residential Use​​: Installed at the customer's premises to distribute signals within the home.

​​• ​​​​Multi-Tenant Buildings​​: Larger FTBs in basements or communication rooms serve multiple units, optimizing space and efficiency.
