FTTH Waterproof Protection Box

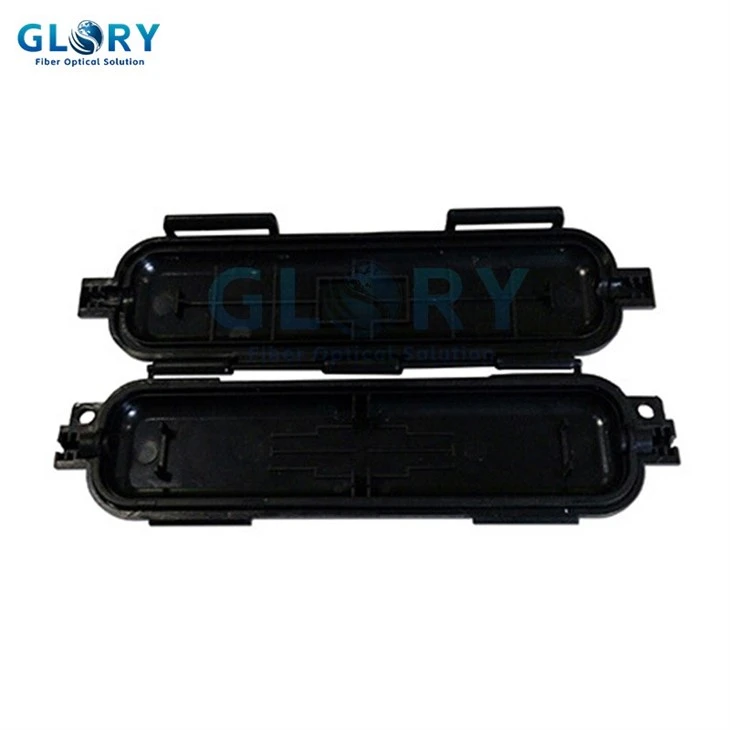

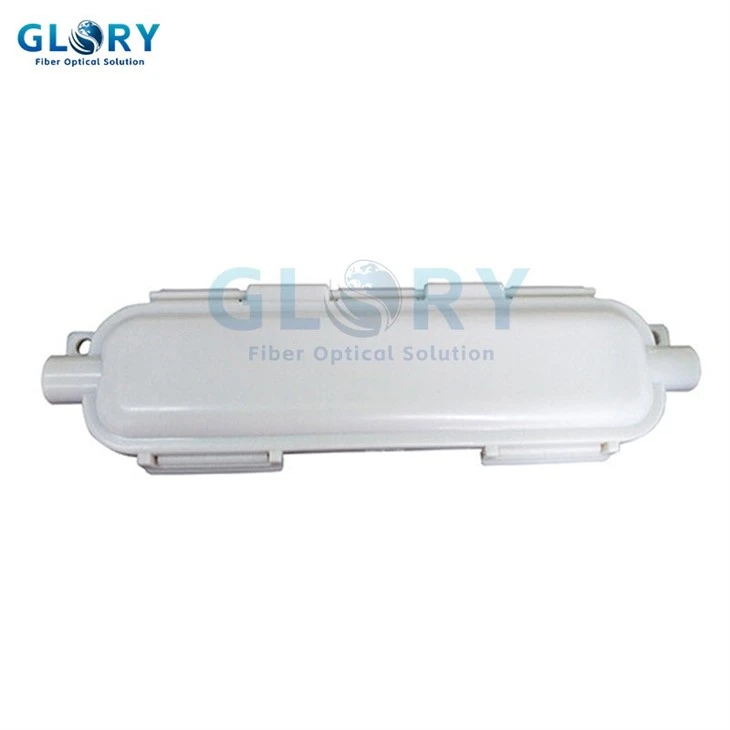

Model: GL-FTB-MINI01 FTTH Waterproof Protection Box
The mini type connector box is suitable for PON project.
It is made of strength engineering plastics with compacted size and light weight.
- Product Introduction
FTTH Waterproof Fiber Protection Box

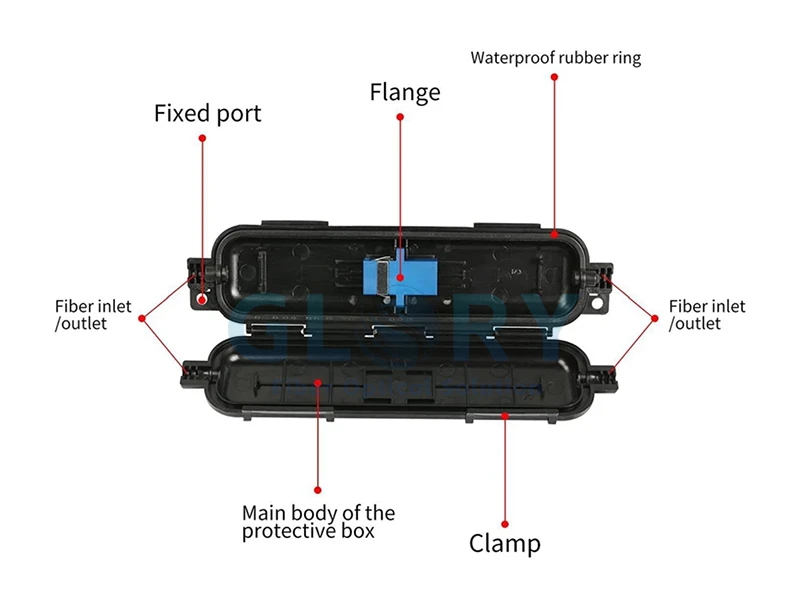

FTTH Waterproof Protection Box are compact, durable enclosures designed to safeguard the critical connection points in fiber optic networks. They serve as a protective terminal where the outdoor fiber drop cable meets the indoor wiring or subscriber terminal, ensuring the connection remains secure against environmental factors like water, dust, and physical damage. Their compact design is particularly vital for the "last-mile" of FTTH deployments, offering a reliable and cost-effective alternative to larger termination boxes in space-sensitive scenarios .
Specifications
|
Size (LxWxH) mm |
160x47.9x16 |
|
Material |
High Quality ABS Plastic |
|
Accessories |
SX SC Adapter and 2pcs of SC Fast Connectors |
|
Inlet/Outlet |
1/1 |
|
Capacity |
1 |
These FTTH Waterproof Protection Box are engineered with precision to meet specific operational demands. A common model features compact dimensions of 160 × 47.9 × 16 mm and a lightweight of about 40 grams, making it ideal for discreet installations . They are typically constructed from high-quality, flame-retardant ABS or PC+ABS plastics (UL94V-0 rated), which provide excellent mechanical strength and longevity . The protection level is usually rated at IP65, indicating complete protection against dust and water jets, though some variants offer IP66 or IP68 ratings for harsher environments . They are designed to operate effectively across a wide temperature range, often from -40°C to +85°C .
In terms of capacity, a standard box can accommodate 1 SC simplex adapter and up to 2 SC fast connectors . They are compatible with commonly used FTTH drop cables, including 2.0mm, 3.0mm diameter cables, and 2x3mm flat cables, providing flexibility for various project requirements . Key performance indicators include a low insertion loss of ≤0.2 dB and a return loss of ≥50 dB (UPC) .
Features
The design of FTTH Waterproof Protection Box incorporates several features that make them indispensable for modern fiber optic deployments. Their robust weatherproofing, achieved through silicone rubber seals and gaskets, ensures reliable performance in both indoor and outdoor settings, protecting the delicate fiber connections from moisture and contaminants .
The compact and lightweight nature of these boxes allows for minimal visual intrusion, which is a significant advantage in residential applications, and they offer versatile mounting options such as wall-mounting with screws or adhesive pads for smooth surfaces . A key benefit is the facilitation of quick and easy installation. By supporting SC fast connectors, they eliminate the need for field fusion splicing, significantly reducing installation time and labor costs .
Despite their simple design, they are built for easy maintenance, allowing technicians to open the box for repairs or re-termination without cutting the cable . Furthermore, their design often includes features to control the bend radius of fibers (greater than 40mm) to prevent signal loss, and they are compatible with various installation environments, from residential walls to telecommunications poles .
