Fiber Optic Wall Mount Termination Box

Outdoor 24F Fiber Optic Wall Mount Termination Box



The outdoor 24-core Wall-Mounted Fiber Optic Termination Box (model GL-DW-3) is a compact enclosure designed to securely terminate, organize, and protect fiber optic cables in communication networks. Mounted on walls or other flat surfaces, it serves as a central hub for managing incoming and outgoing fiber optic connections. The fiber termination box typically includes splice trays, fiber optic adapters, and storage loops to accommodate excess cable length, ensuring a proper bending radius and preventing signal loss. It protects delicate fiber splices and connectors from environmental factors such as dust, moisture, and physical damage. Commonly used in FTTH (Fiber-to-the-Home), enterprise networks, and telecom infrastructure, this enclosure simplifies maintenance, supports efficient cable routing, and provides a professional, organized interface for connecting optical distribution cables to end-user equipment.

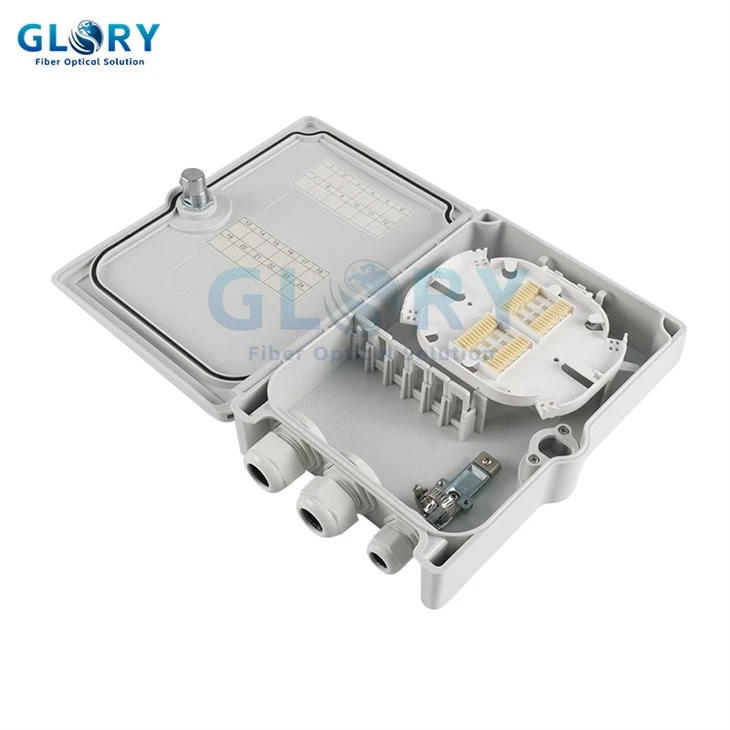

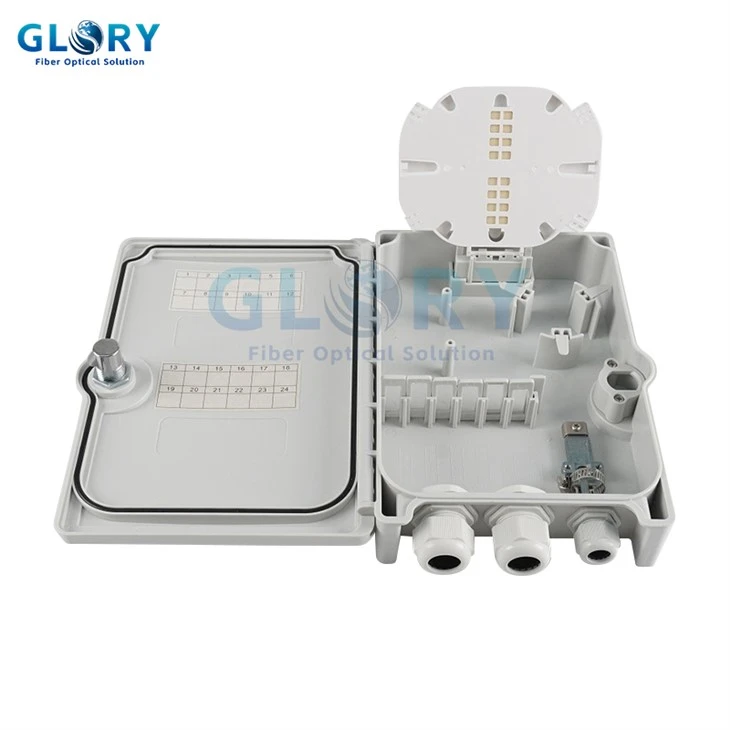

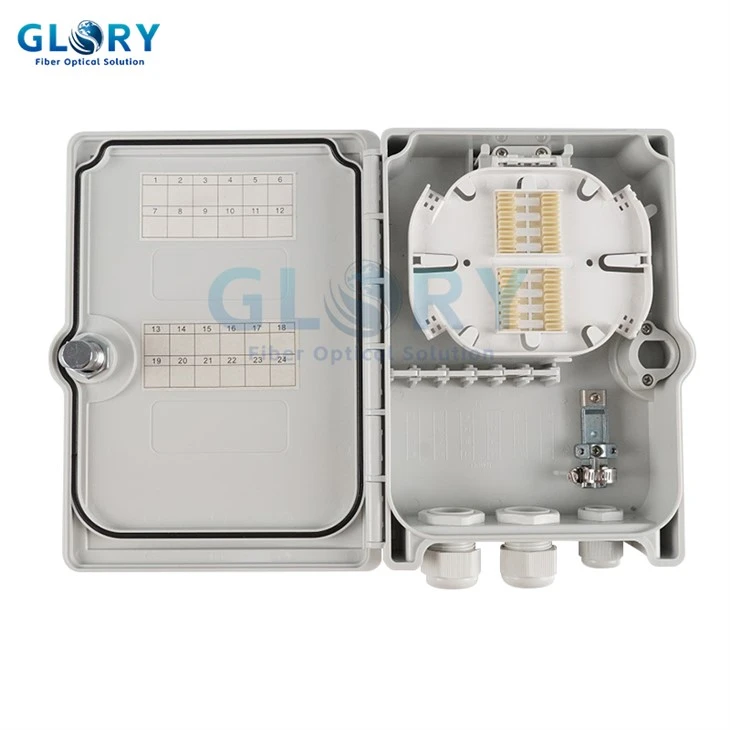

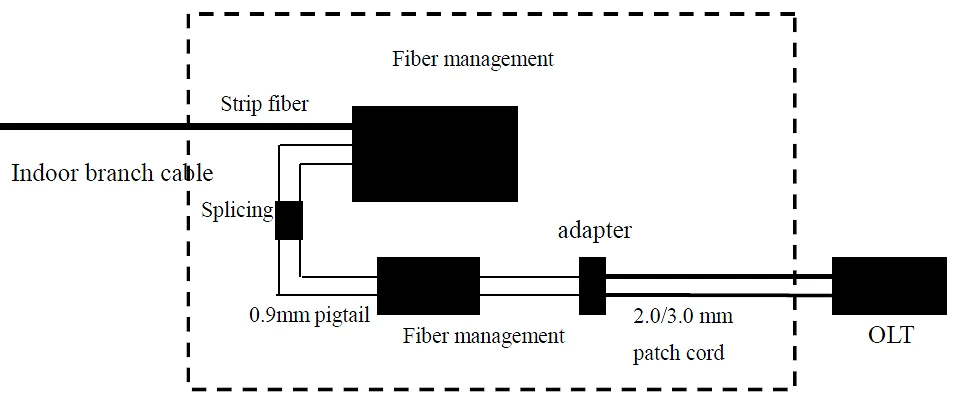

Product schematic:





Specifications:



Item Name	Fiber Optic Wall Mount Termination Box GL-DW-3
Size (mm)	258×186×61
Color	Grey
Cable ports	1 inlet and 2 outlet Suitable for fiber cable Φ6-12mm, indoor soft cable
Protection Grade	IP55
Fiber Splice Capacity	24 Fibers
Adapter assembly	6 SC duplex adapters or LC quad adapters
Splitter assembly	1 piece 1x8 or 1x16 micro PLC splitter
Optional accessory	PLC splitter, adapter, pole mounting kit
Application	Wall/Pole mounting
Inner Carton (mm)	196×65×275 (1 piece)
Outer Carton (mm)	570×415×355 (20 pcs)



Features of Fiber Optic Wall Mount Termination Box :



• Fully enclosed structure ​​featuring excellent dustproof and moisture-proof performance​​, along with an ​​aesthetically pleasing design​​.
• Suitable for ​​both indoor and outdoor wall installation​​.
• ​​Features an anti-theft lock mechanism​​ to effectively protect and manage ​​optical cables​​.
• ​​Constructed from high-quality metal or plastic​​, with a ​​standard size and lightweight design​​ for ​​easy installation​​.
• ​​Integrates​​ feeder ​​and distribution cable processing​​, ​​along with​​ optical fiber connection, fixation, storage, ​​and distribution functions​​.



Applications:



• ​​FTTH (Fiber-to-the-Home) Deployments​​: Mounted on building exteriors to distribute fiber connections to residential or commercial users.

• ​​Telecom Infrastructure​​: Serving as a junction point for aerial or underground fiber cables in street cabinets, poles, or outdoor enclosures.

• ​​Enterprise Networks​​: Extending fiber connectivity across campuses, factories, or remote facilities.

• ​​Surveillance Systems​​: Connecting fiber-based security cameras or sensors in outdoor environments.

• ​​5G/Mobile Networks​​: Terminating fiber links to base stations or small-cell nodes.

• ​​Rural Broadband​​: Facilitating fiber distribution in remote or exposed locations.

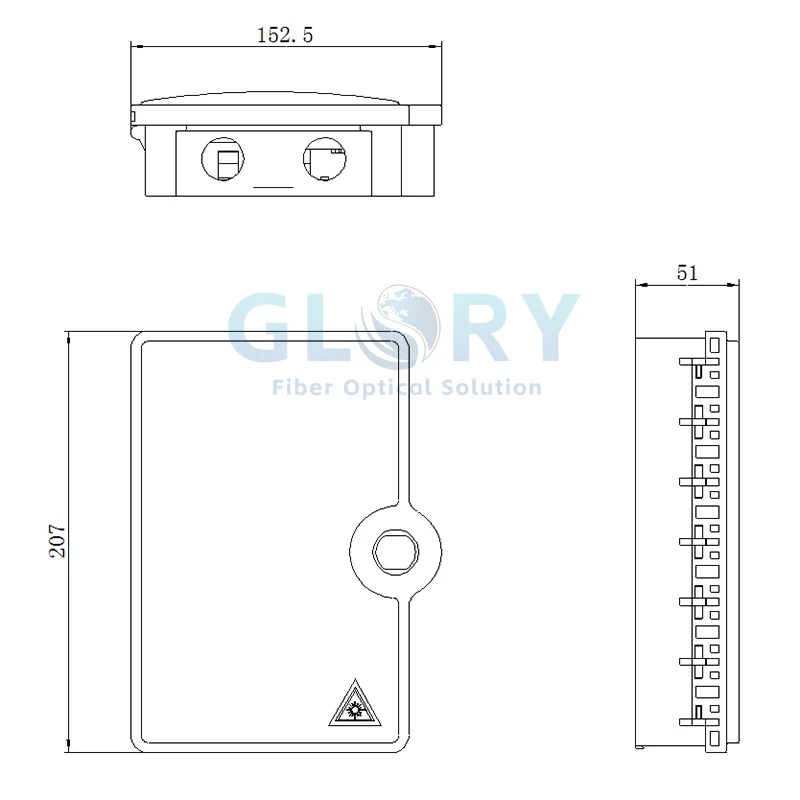

Dimensional drawings:

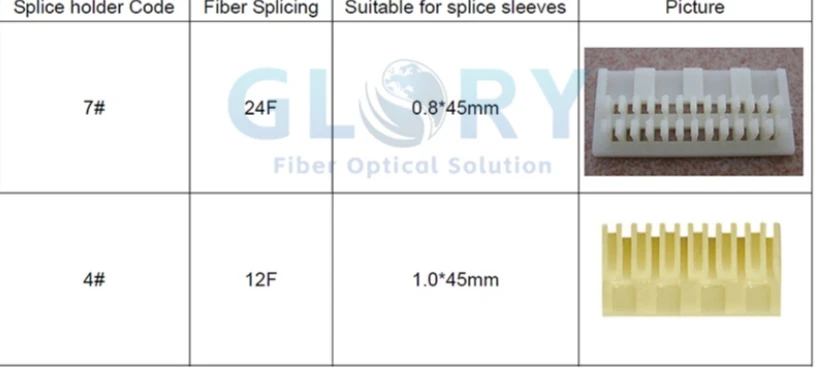

The Fiber Optic Wall Mount Termination Box can be equipped with either a 12-fiber or 24-fiber splice tray, with the primary difference lying in the splice holder design.

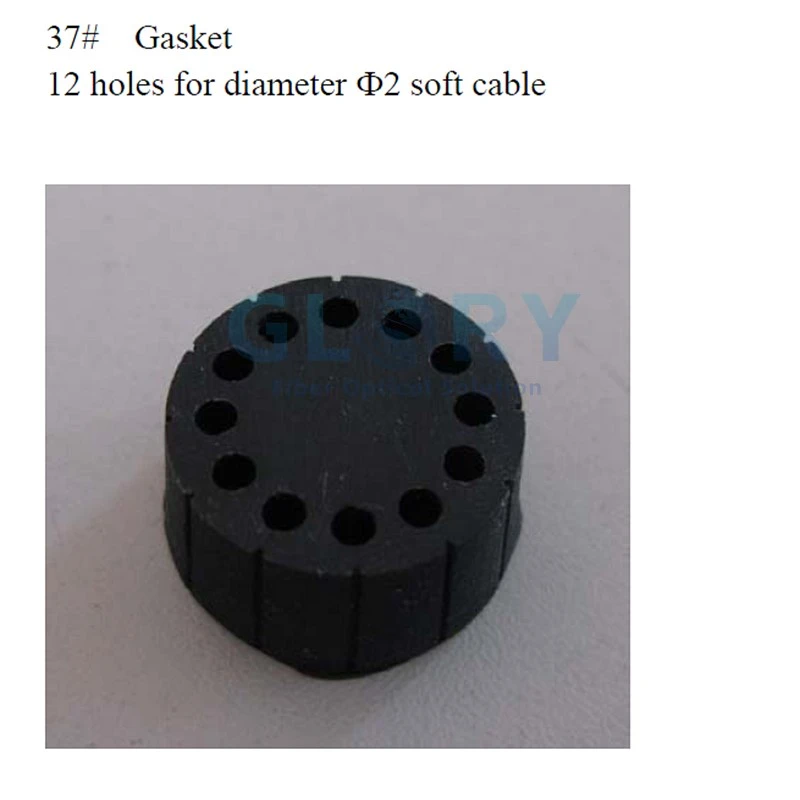

Sealing gasket for option:

Installation diagram:

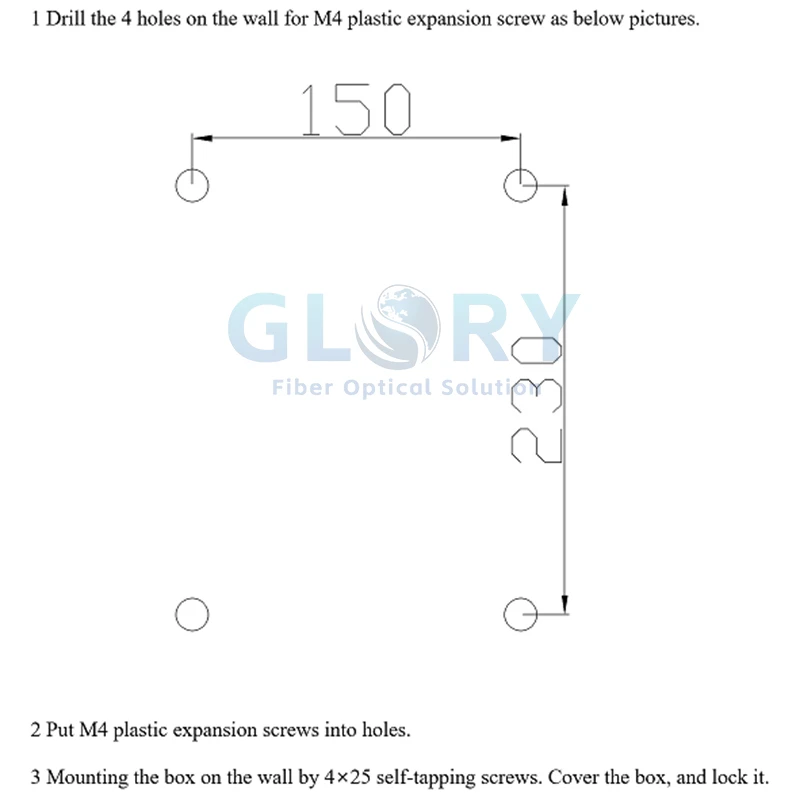

The standard installation method for the Fiber Optic Wall Mount Termination Box is wall fixing. Please check the following fixing method for your review.

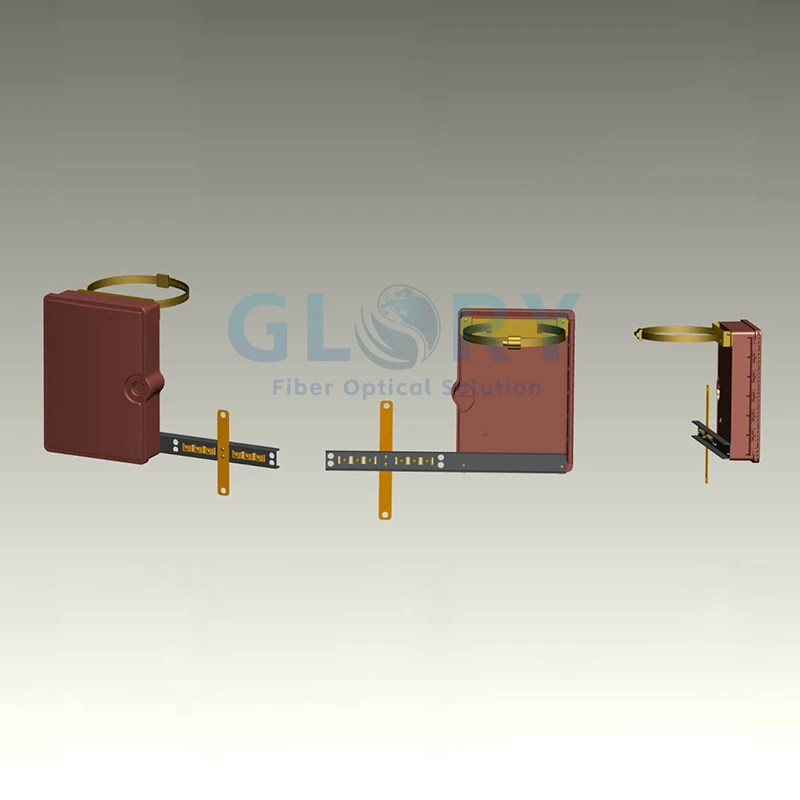

Only a small number of customers will have pole-mounting needs, so we have developed optional mounting accessories to meet these requirements.



FAQs:



1 How to install PLC splitter in the Fiber Optic Wall Mount Termination Box?

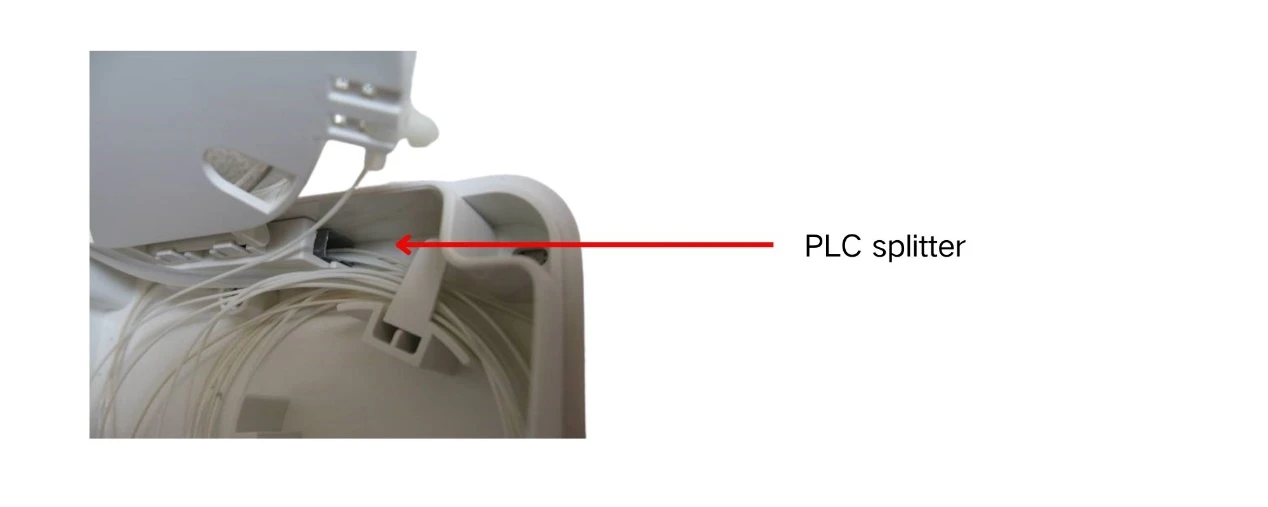

The structure has the position for PLC installation, 1x8 and 1x16 micro PLC splitter can be used, Pls check following pic.
