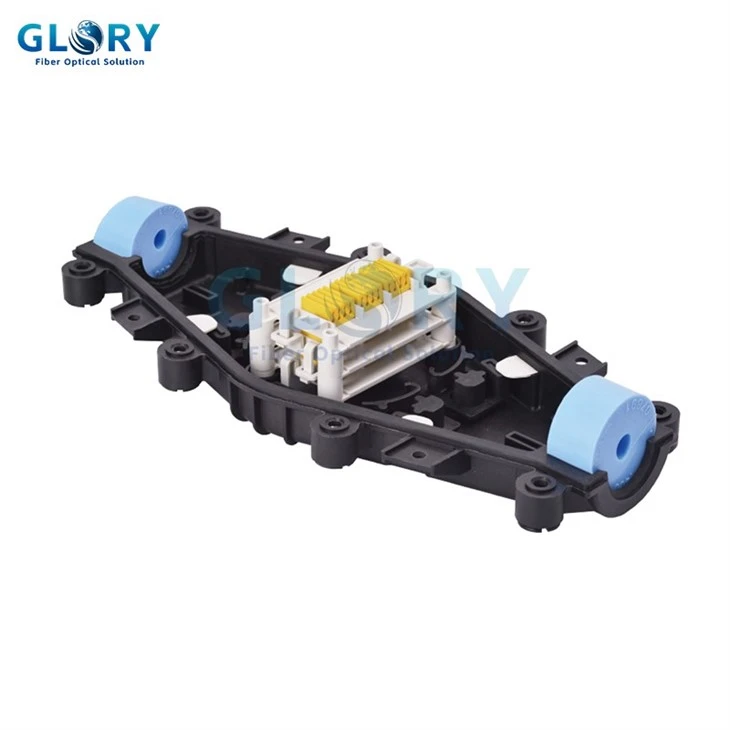

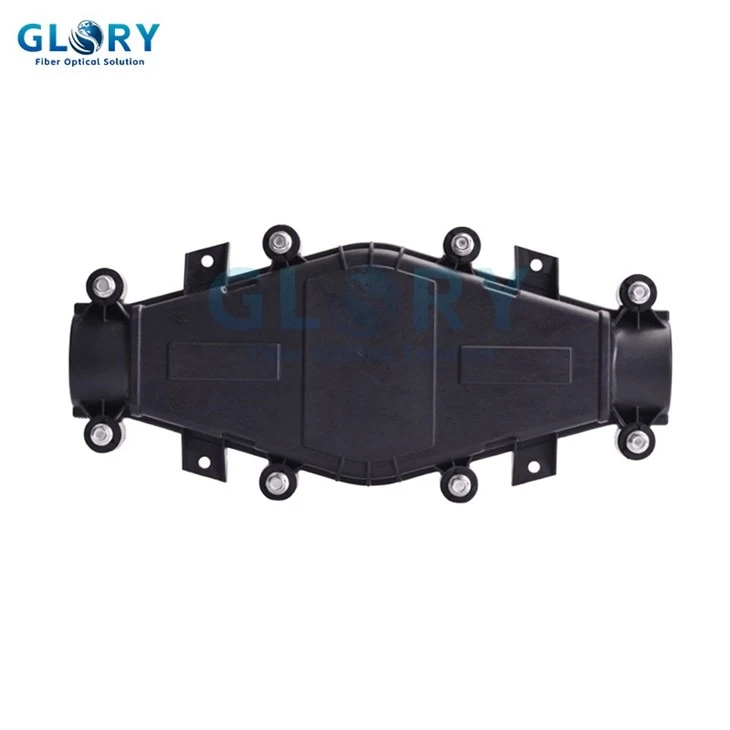

Inline Fiber Closure
Model: Inline Fiber Closure GL-H026
• Capacity: 12~72 fibers
• Cable port: 1 inlet, 1 outlet
• Application：Aerial, Pipeline, Underground, Hand-holes
• Mechanical sealing, Horizontal/inline structure
• RoHS materials
- Product Introduction
IP 68 High Density Inline Fiber Optic Splice Closure
Inline Fiber Closure GL-H026 is a compact, sealed enclosure designed to protect and manage fiber-optic splices in telecommunication networks. It ensures reliable connectivity by safeguarding spliced fibers from environmental factors like moisture, dust, and physical damage. Typically used in aerial, underground, or direct-buried installations, it allows efficient splicing, storage, and maintenance. Its lightweight, durable construction supports both single and multiple cable entry and exit configurations, making it ideal for extending or repairing fiber-optic cables in FTTH (Fiber-to-the-Home) or backbone networks. By maintaining low insertion loss and high durability, Inline Fiber Closure ensures long-term performance and minimal signal disruption in diverse deployment scenarios.
Specifications:
|
Item Name |
Inline Fiber Closure GL-H026 |
|
Size (mm) |
345(L)×164(W)×66(H) |
|
Material |
PP |
|
Color |
Black |
|
Cable ports |
1 inlet and 1 outlet |
|
Diameter of Cable |
Φ2.4~25.2 mm |
|
Protection Grade |
IP68 |
|
IK Grade |
IK10 |
|
Fiber Splice Capacity |
12~72 Fibers |
|
Sealing type |
Mechanical seal |
|
Application |
Pole/Strand/Wall |
|
Inner Carton (mm) |
365×170×70 (1 piece) |
|
Outer Carton (mm) |
540×375×315 (12 pcs) |
Features：
• User-friendly operation, hassle-free setup, and durable sealing.
• Long-lasting material resists aging and extreme weather conditions.
• Airtight, waterproof, and lightning-resistant construction.
• Rotating fiber tray connections enable fast, tool-free installation.
• Heavy-duty design supports direct burial or pole mounting.

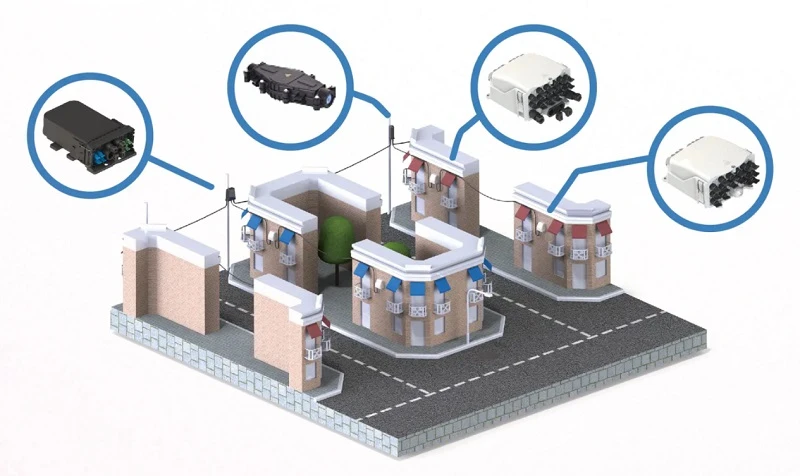

IP 68 High Density Inline Fiber Splice Closure Application in Telecommunication networks:
The IP68 High-Density Inline Fiber Closure safeguards fiber splices in demanding environments like underground or outdoor telecom networks. Its compact, high-density design supports multiple cables, ensuring efficient splicing and minimal signal loss. Ideal for FTTH and 5G deployments, this inline fiber closure combines durability with easy installation.
Featuring tool-free access and modular trays, the IP68 High-Density Inline Fiber Closure simplifies upgrades and maintenance. Corrosion-resistant materials and airtight sealing ensure long-term reliability, making this inline fiber closure essential for expanding bandwidth in urban or remote telecom infrastructure.
