Aerial Splice Enclosure
Item: Aerial Splice Enclosure Small Size Horizontal Type Optical Fiber Closure GL-01-H23JF4
• Max capacity is 24 fibers
• 2pcs 1x8 splitter or 1pc 1x16 splitter for option
• IP68, waterproof, inline type
- Product Introduction
Aerial Splice Enclosure Small Size Horizontal Type
The Aerial Splice Enclosure is suitable for direct splicing or distribution of optic cables with a diameter of ≤12.5mm or 16 pieces of drop cable in aerial, pole-mounted, or outdoor wall-mounted applications. It is constructed from high-strength engineering plastic with aging-resistant, UV-resistant, and anti-corrosion properties. The enclosure is waterproof and dustproof, features a simple internal structure, and is easy to install and reopen. It is an excellent choice for secondary cable splicing in FTTH projects.
Specification:
|
Model |
Box size (mm) |
Max capacity |
No. of Ports |
Splitter |
Adapter |
|
GL-01-H23JF4 |
319.7x193x102 |
24F |
2 pcs round on both side: Ф12mm 8 pcs drop cable ports on both sides:2x5 mm |
2pcs 1x8 splitter or 1pc 1x16 splitter |
16 pcs SC type |
Technical Parameter for the Aerial Splice Enclosure:
• Fiber Bending Radius≥37.5mm
• Return Loss: ≤0.01dB
• Fiber length in the Tray: ≥1.6m
• Max. Capacity: 24cores (Single fiber)
• Working Temperature: -40℃～+70℃
• Lateral pressure resistance: ≥2000N/10cm
• Impact resistance: ≥20N.m
• Durability：25 years

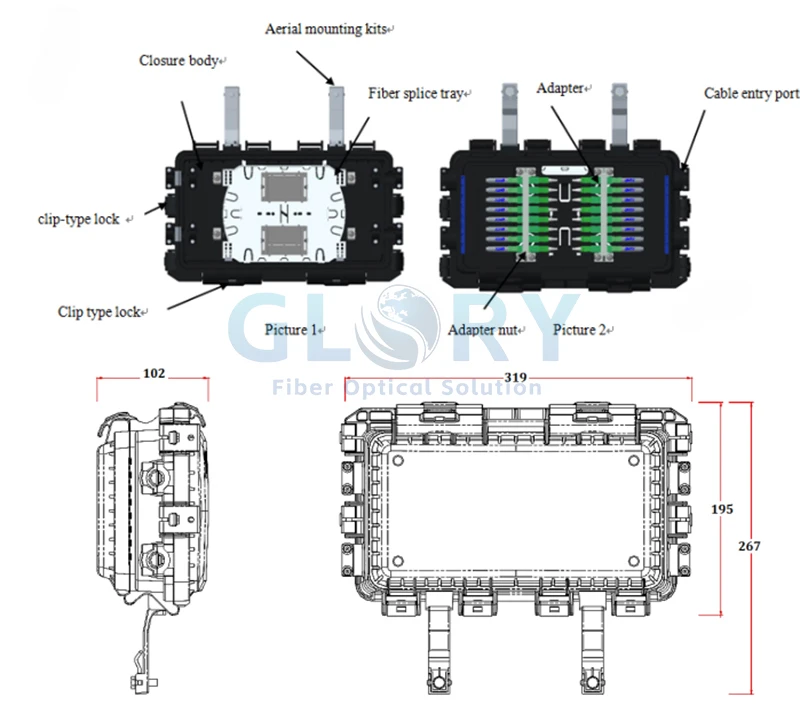

Exterior Structure Diagram:

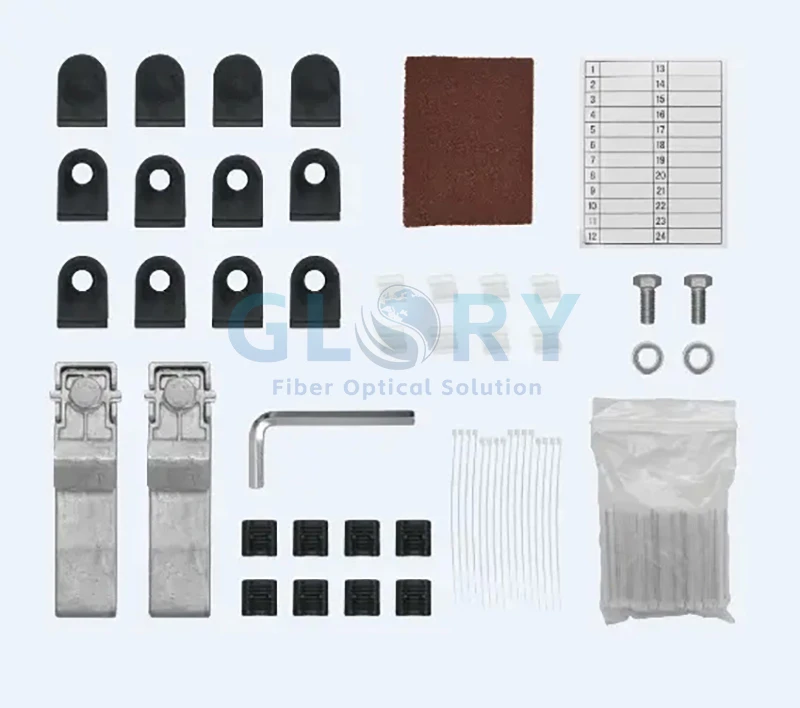

More pictures：
