Fiber Closure

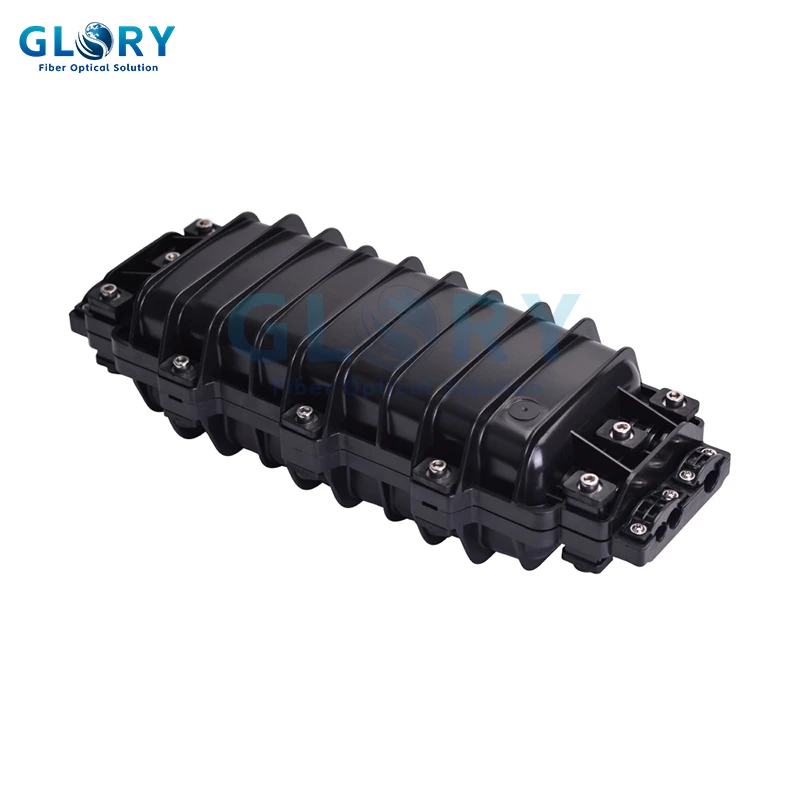

Item: Fiber Closure Inline type 3 input and 3 output Max capacity 96 fibers Mechanical Sealing
- Product Introduction
Fiber Closure is an essential passive component for fiber optic cable management in a fiber-optic network of backbone, MAN, and access network. Fiber Optic Splice Closure is widely used to protect optical fiber splices, store slack fiber optic cables, distribute fiber optic cables, etc. In straight-through and branching applications either in the outside plant or indoor buildings. This model has six cable ports and can be used for different applications of optical fiber cable splicing & branching and is suitable for aerial, pipe-lined and direct buried applications. Our fiber optic splice closure would be the best choice for reliable information transmission.
Specification:
|
Type |
Inline type |
|
Number of Inlet/Outlet ports |
6 ports |
|
Cable Diameter |
2 ports×16mm, 4 ports×13mm |
|
Maximum Capacity |
Bunchy: 96 fibers; Ribbon: 144 fiber |
|
Capacity per Splice Tray |
Bunchy: single layer: 12 fibers; dual layers: 24 fibers; Ribbon: standard: 3pcs; max.: 6pcs |
|
Quantity of Splice Tray |
4pcs |
|
Body Material |
PC |
|
Sealing Material |
Thermoplastic rubber |
|
Assembling method |
Aerial, direct buried, pipelined, wall mounting, manhole |
|
Temperature |
-40℃~65℃ |
Feature：
- Easy access to installation, maintenance and future expansions.
- Excellent sealing against water ingress and harsh environment

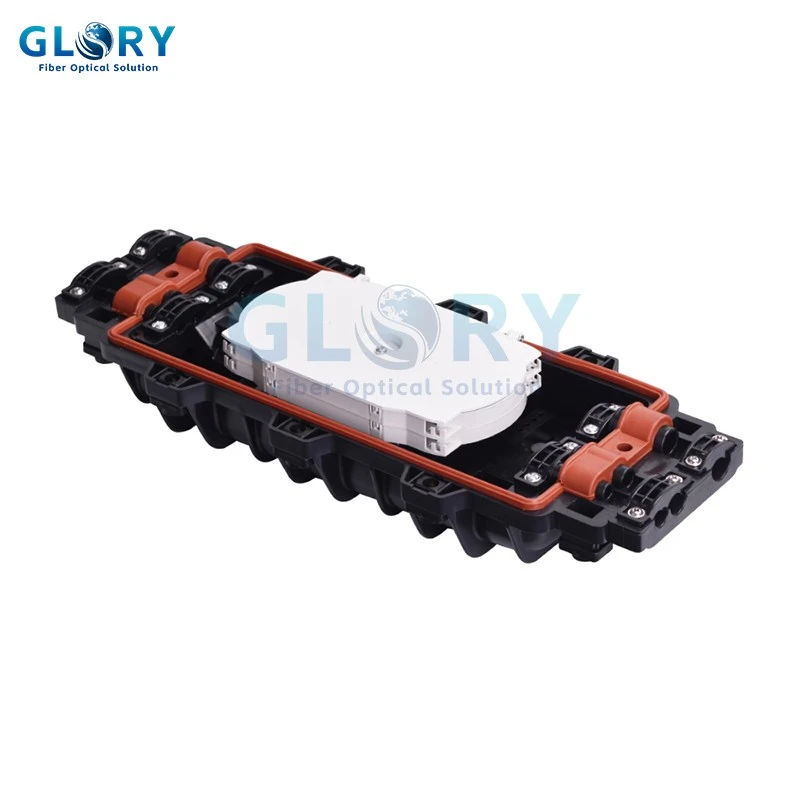

- Hinged splice trays for easy expansion without disturbing spliced fibers.
- Compatible with standard normal fiber cable types
FAQ
1 How many inlets and outlets does the Fiber Closure have?
The fiber optic splice closure has 3 inlets and 3 outlets.
2 What is the protection level of the optic splice closure?
The protection level of the fiber splice joint closure box is IP68.
