Fiber Enclosure Box
Model: GL-S03 Dome Fiber Enclosure Box
The maximum capacity of this fiber enclosure box is 48 fibers. It features 1 inlet and 3 outlet mechanical sealing cable ports and is IP68 rated.
- Product Introduction

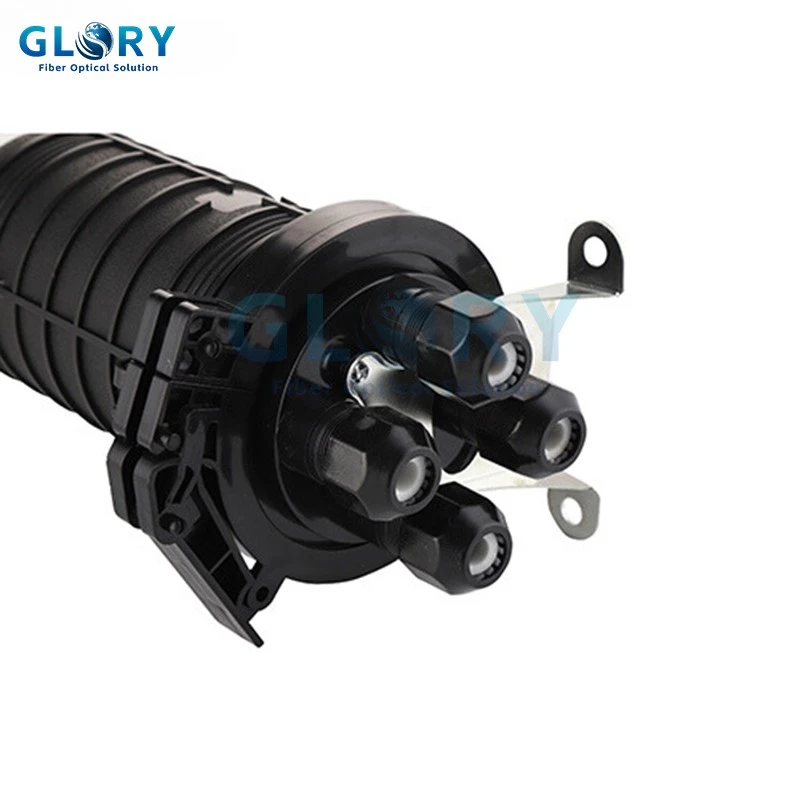

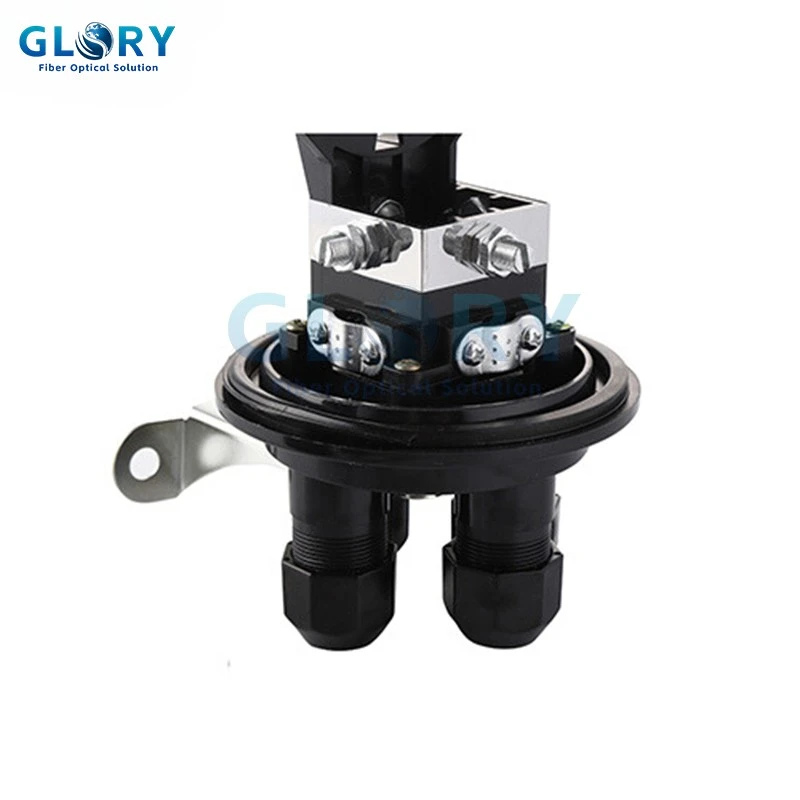

Dome Type Mechanical Sealilng Fiber Enclosure Box
This fiber enclosure box, suitable for the connection of overhead, pipe, and buried straight and branch lines, is constructed from high-quality plastic. It features a body and base sealed with hoops and rubber, providing a robust mechanical structure. The enclosure offers excellent performance against erosion from acid, alkali, and salt, along with resistance to aging, and boasts a smooth exterior.
Designed to protect and house fragile fiber splices and joints between cables, as well as splitters and patch connectors, the enclosure reliably withstands harsh environmental conditions. It is built to endure wild environments, intensive climate changes, and serious working environments.
Specifications:
|
Model |
Fiber Enclosure Box GL-S03 |
|
Size |
330x120mm |
|
Type |
Dome mechanical |
|
Number of Inlet/Outlet ports |
4 ports |
|
Maximum Capacity |
48 fibers |
|
Quantity of Splice Tray |
2pcs |
|
Body Material |
PP+GF |
|
Assembling method |
Aerial, direct buried, pipelined, wall mounting, manhole |
Feature of Fiber Enclosure Box：
- IP68 (harsh environment and temperatures)
- 48 FO
- Pole and manhole
- Very strong and robust shell
- 24 fibers per tray
- Mechanical sealing
- RoHS materials
Applications:

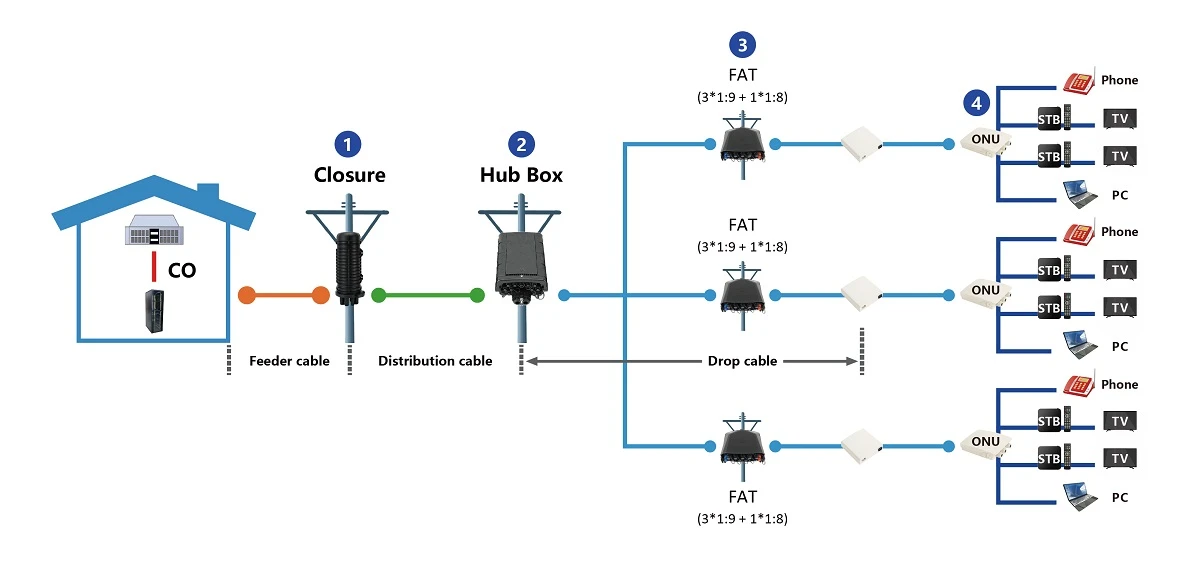

- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fiber-To-The-Home (FTTH)
