Fiber Dome Enclosure

Model: GL-D7-288 FIBER OPTIC DOME CLOSURES
Fiber Dome Enclosure with Mechanical sealing, 6 round+1 oval cable port, 288F

  • Product Introduction



Mechanical Sealing Type Fiber Dome Enclosure



Fiber Dome Enclosures​​ provide a versatile solution for splicing and protecting outdoor fiber connections in a familiar dome form factor. These units can be deployed to support a variety of topologies, including strand or pole mounting, as well as below-grade vault installations. The closures utilize mechanical compression technology to deliver an economical, easy-to-use cable sealing solution.



Features and Benefits:



Flexibility

Units can accommodate single fusion or ribbon fiber splicing

Economic

Mechanical compression technology to provide an easy to use economical cable sealing solution

Installation Mounting

Fiber Dome Enclosure are aerial, pole, wall or below grade mountable for flexible placements

Technician Friendly Features

Fiber splice trays and cable ingress/egress grommets are included

Material Specification

Robust UV stabilized glass filled polypropylene housing

Environmental

Environmentally sealed and IP68 rated for water submersion

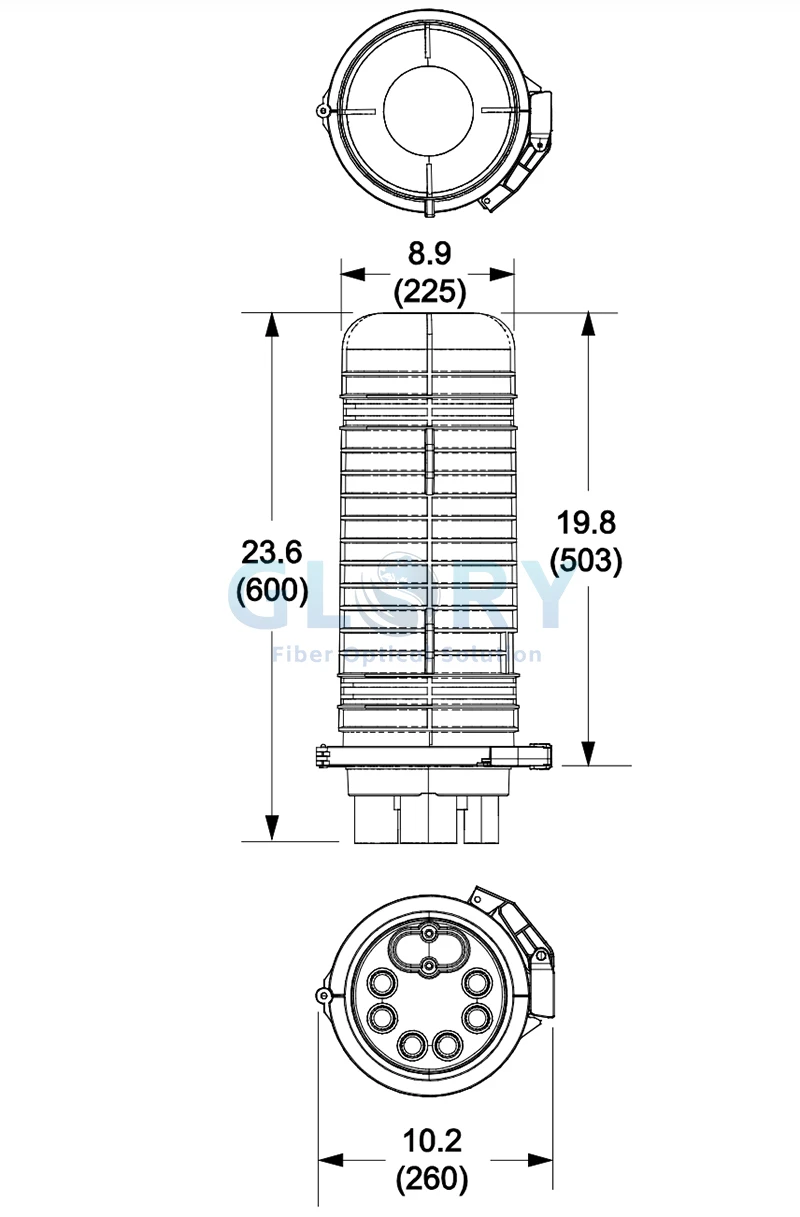

Dimension drawing of The Fiber Dome Enclosure:



fiber dome enclosure size



Mounting the Fiber Dome Enclosure:



• Pole Mounting
1 The pole mounting kit includes four mounting straps and a pair of offset mounting brackets. 1. Use two straps to secure the mounting brackets to the Fiber Dome Enclosure.
2. Use the remaining two straps to secure the Fiber Dome Enclosure to the pole.


If mounting to a wooden pole, the mounting brackets can also be mounted to the pole using bolts. Then use straps to secure the fiber enclosure to the mounting brackets.

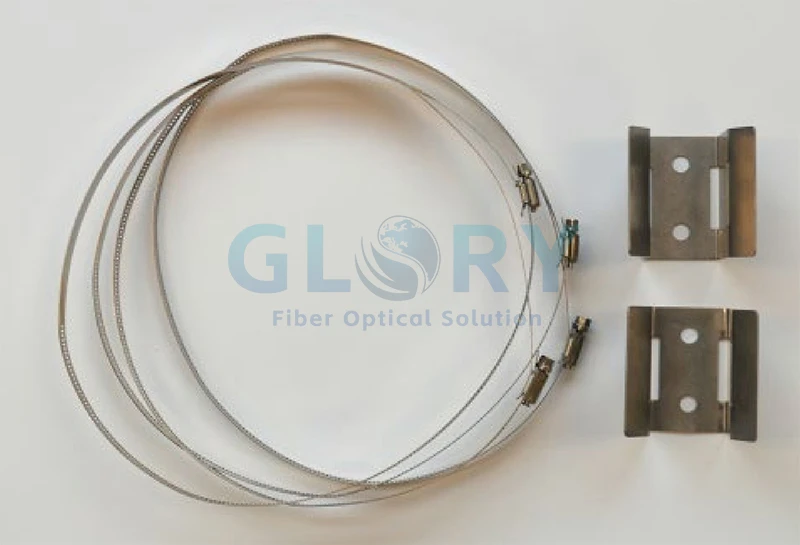

pole mounting accessories

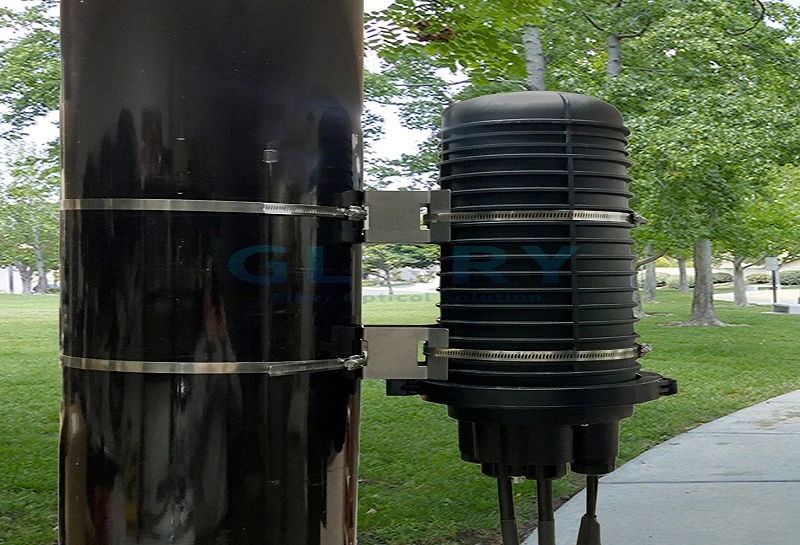

pole mounting -

• Aerial Strand Mounting

The aerial strand mounting kit is compatible with a 1/4" to 3/8" aerial strand.

1. Attach the D-cable lashing clamp to the fiber enclosure brackets

2. Attach the brackets around the dome by tightening the straps

3. Attach the D-clamps to the aerial strand.

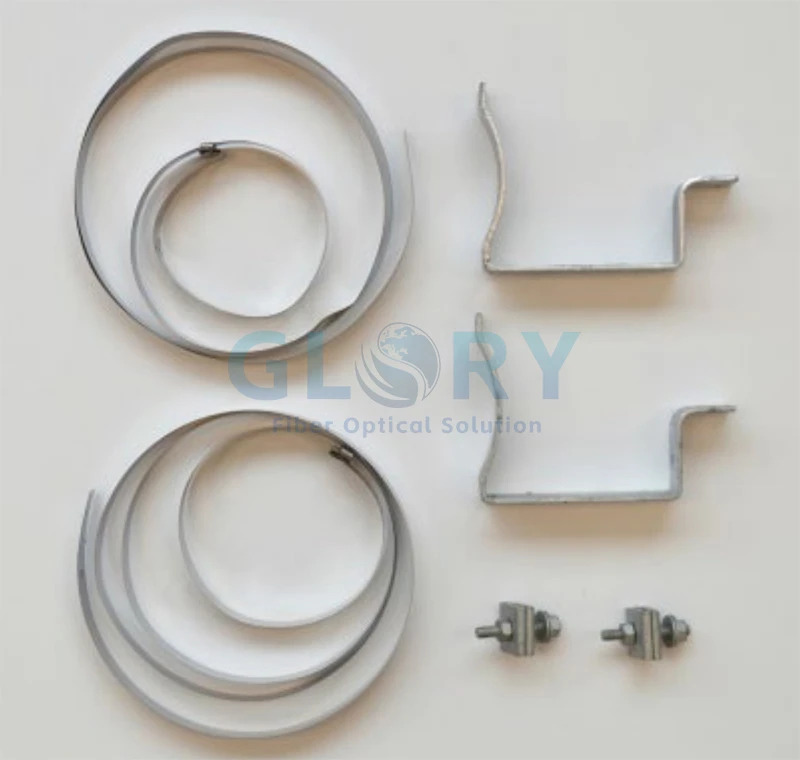

aerial mount kit

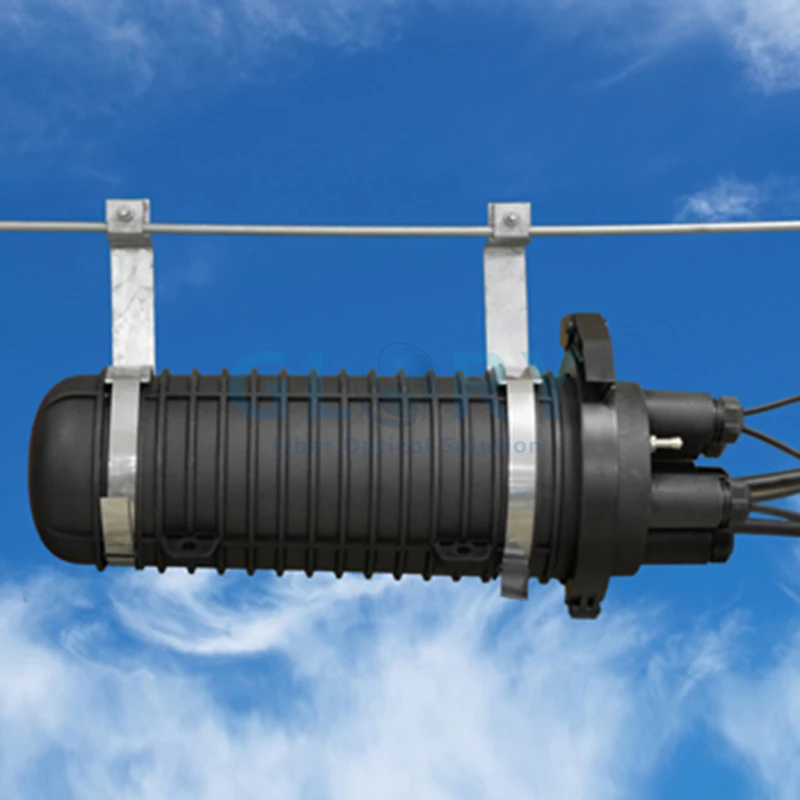

aerial mount
