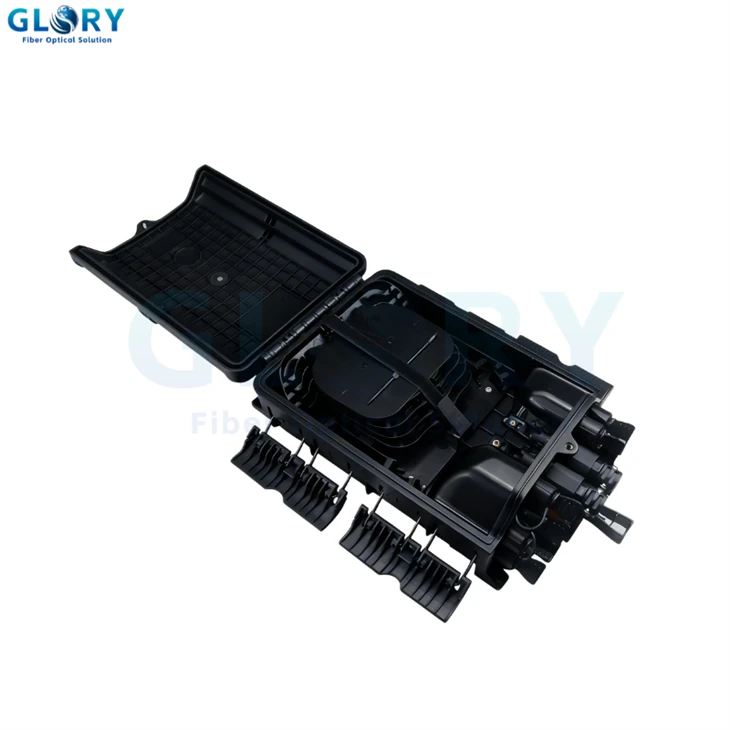

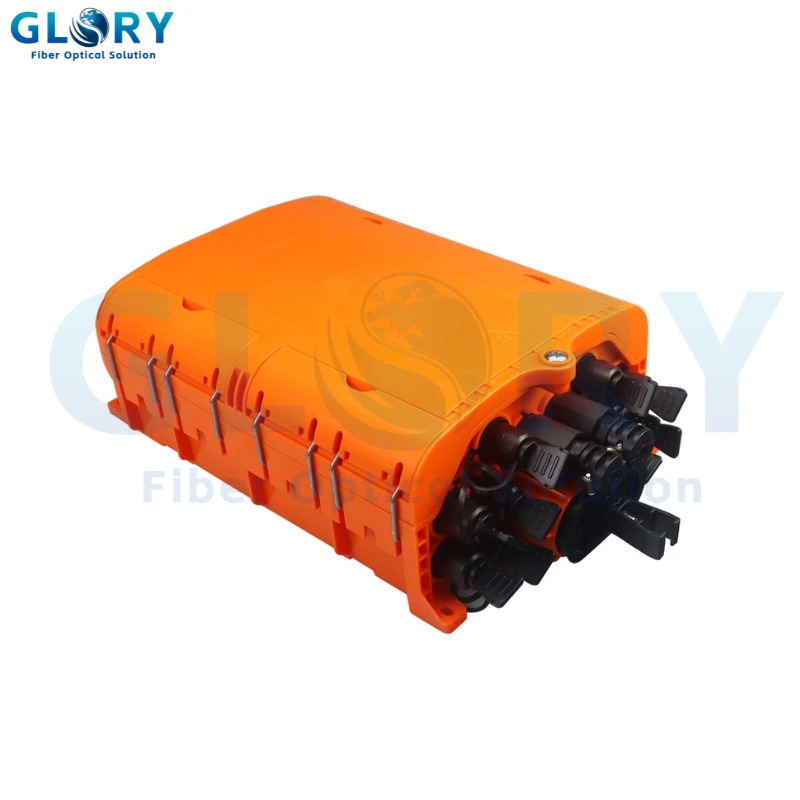

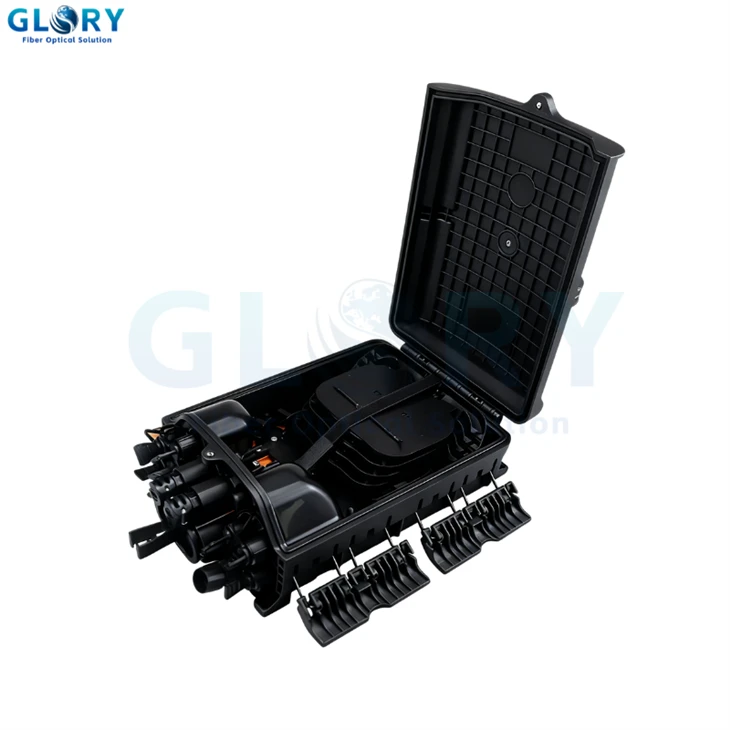

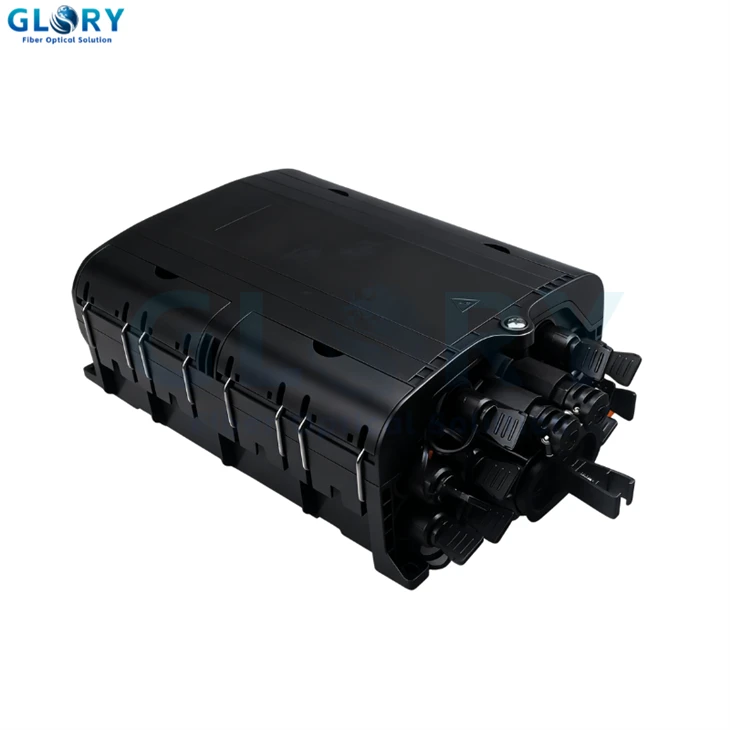

Optical Fiber Junction Box
Model Name:Optical Fiber Junction Box
Application: FTTx
Waterproof Grade: IP68
Material: ABS
Box Color: Orange
Capacity: 10 cores
Support Adapter: Waterproof Adapter (Mini SC/ OptiTap Type Adapter)
Adapter Color: Black
Operating Temperature: -40~ +65（℃）
Installation: Wall Mounting or Pole Mounting
- Product Introduction
Product Overview

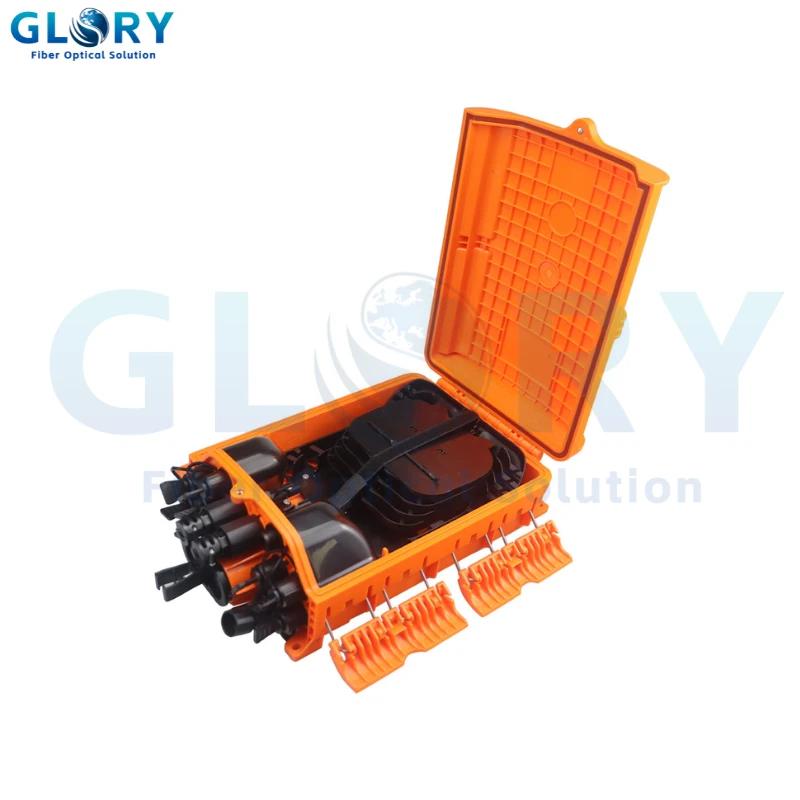

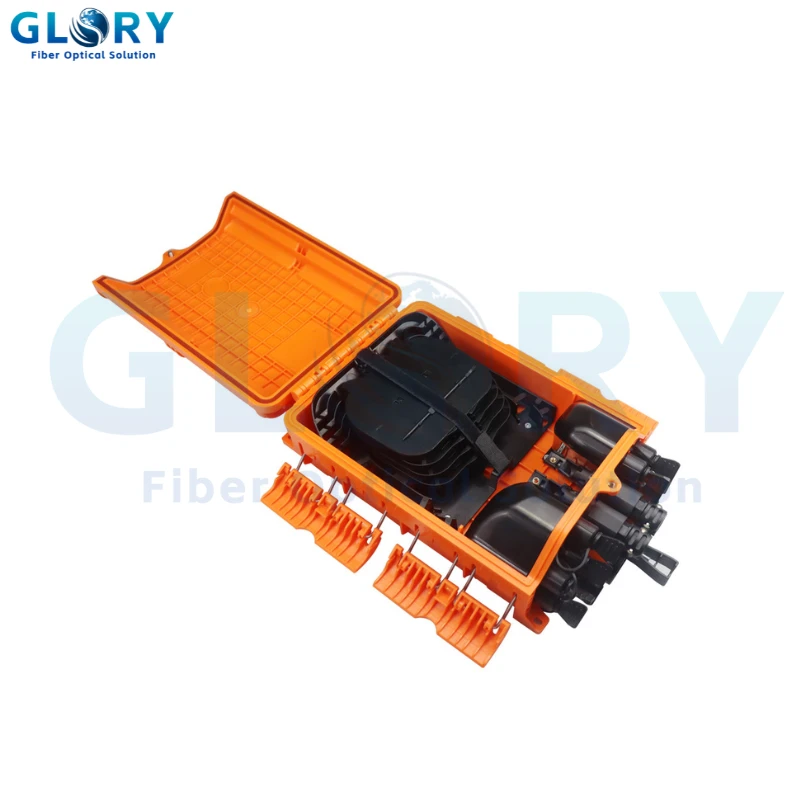

This professional-grade Optical Fiber Junction Box represents the latest advancement in fiber termination technology, specifically engineered for modern FTTH (Fiber to the Home) deployments. The unit combines robust construction with intelligent design to deliver exceptional performance in diverse installation environments.
Technical Specification
| Item | Specifications | Remark |
| External dimension | 334*210*112mm | |

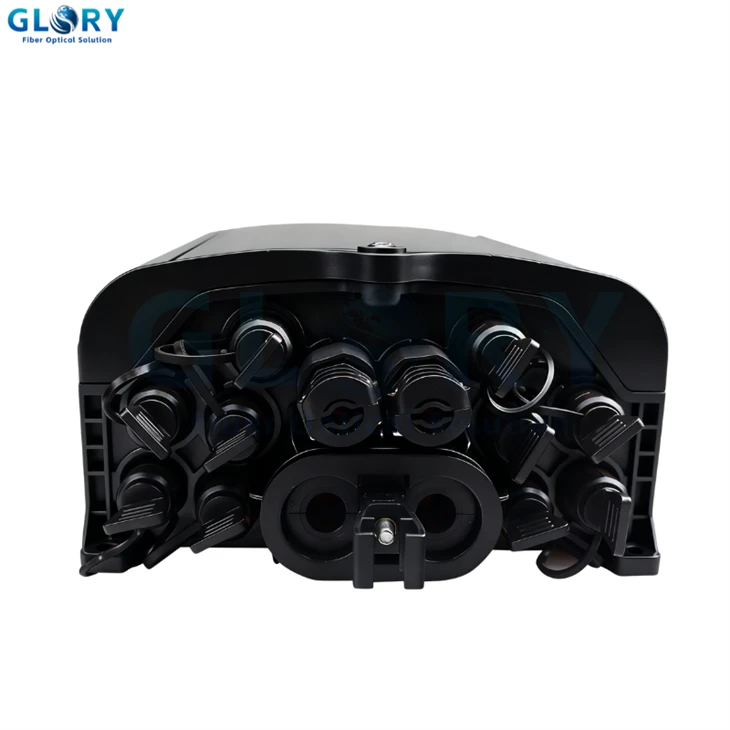

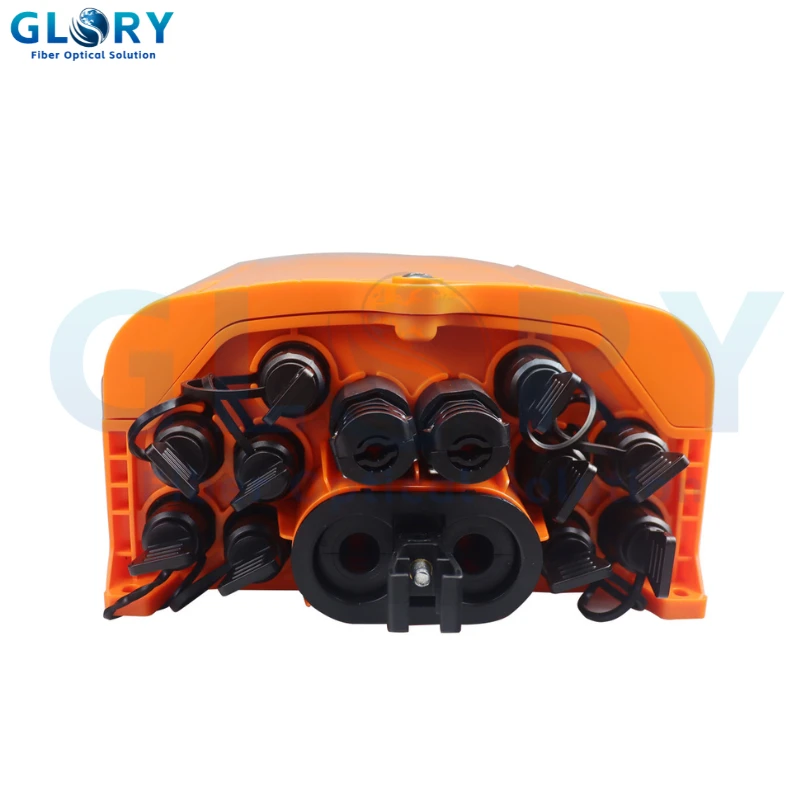

| Distribution Cable ports |
Type A: 1 Oval + 2 Round Type B: 1 Oval |
|
| Distribution Cable Diameter |
Oval Port cable: Ф8 - Ф18 mm Round Port cable: Ф8 - Ф16 mm |
|
| Door Cable ports |
Type A: Max.10 cores Type B: Max.12 cores |
|
| Door Cable Diameter | Depending on the type of connector cable | |
| Splice Tray Capacity | Max.96cores | 4pc *12F or 4pc *24F |
| Support adapter | Mini ,Optitap or SC to SC water-proof Adapter | |
| Adapter Capacity(Max) | 10~12 pcs |
Type A: 10pcs Type B: 12pcs |
| Support PLC Splitter | 1*8 Type | |
| Material | PC+ABS | |
| Box Color | Yellow | Customizable |
| IP protection level | IP68 | |
| Flammability | HB(Conventional) | can be customized according to requirements |
| Neutral salt spray test (NSS) | 168 h | |
| Net weight | 1.75kg | |
| Gross weight | 2.25kg |
Advanced Technical Features
Space Optimization
Compact footprint design maximizes installation flexibility in space-constrained locations while maintaining full functionality.
Enhanced Fiber Protection
IP65 rating ensures complete protection against dust ingress and water jets, guaranteeing long-term reliability.
Easy Maintenance
Tool-less access and modular components simplify installation and reduce maintenance time by up to 40%.
Installation Types
The product features tool-less access for routine maintenance and clear fiber routing guidance, significantly reducing installation time and technical requirements. Cable entry points are designed with waterproof glands to ensure long-term reliability.
Wall-mounted Installation
Pole-mounted Installation
Wire Messenger Installation
Industry application scenarios and solutions
This versatile terminal box is ideally suited for various deployment scenarios including residential FTTH networks, enterprise connectivity solutions, and municipal broadband projects. Its compact design and robust construction make it perfect for both urban and rural installations where reliability and space efficiency are paramount.
Technical Support and Quality Assurance
Every terminal box undergoes rigorous quality testing including temperature cycling, mechanical stress tests, and optical performance validation. Our manufacturing process adheres to international quality standards, ensuring consistent product excellence and long-term reliability.
Service and Support
We deeply appreciate your confidence and support. With firm resolve, we are dedicated to delivering stable, reliable service and technical support. For any inquiries, please contact us anytime without hesitation. We aspire to jointly cultivate a long-term, mutually rewarding collaboration.
