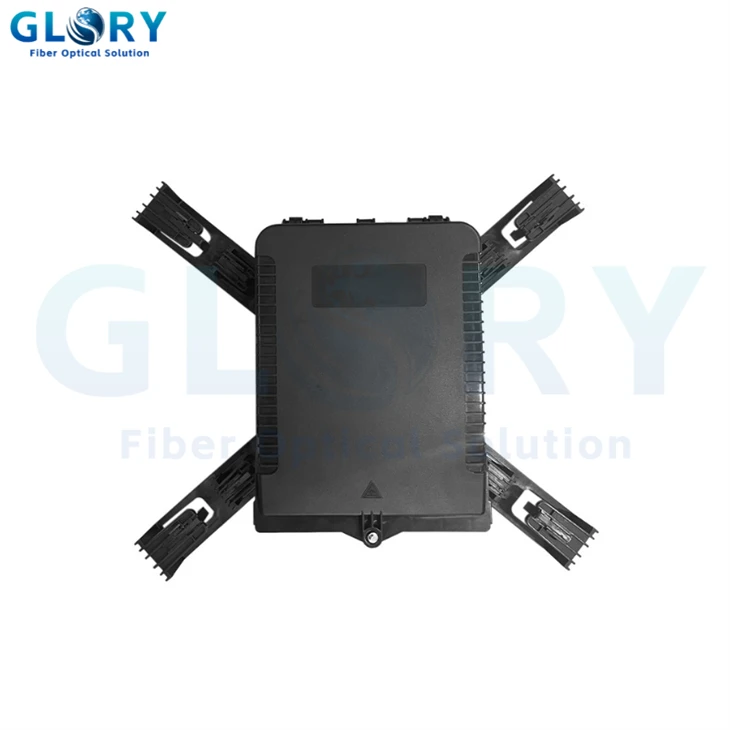

FTTx Distribution Box
Model Name:FTTx distribution box
Application: FTTx
Waterproof Grade: IP65
Material: ABS
Color: Black
Capacity: 32 cores
Operating Temperature: -25~ +60（℃）
Installation: pole-mounted, wall-mounted
- Product Introduction
Product Overview
This high-performance FTTx distribution box is specially designed for contemporary optical network applications, combining space-efficient design with outstanding operational capabilities.
This device is made of high-quality ABS polymer and features excellent mechanical strength and environmental resilience. Its IP53 protection rating ensures stable performance in various outdoor environments, effectively shielding internal components from particle intrusion and the influence of low-pressure water jets.
Technical Specification
Physical Properties
Material: High-grade ABS with UV protection
Color: Weather-resistant gray
Dimensions: 280mm × 220mm × 110mm
Performance Parameters
Fiber Capacity: 8 cores maximum
Adapter Type: SC/FC/LC compatible
Insertion Loss: ≤ 0.2dB
Environmental Ratings
IP Protection: IP53 certified
Temperature Range: -40°C to +65°C
Humidity: Up to 95% non-condensing
our service
Space-Efficient Design
Compact dimensions optimized for high-density installations without compromising functionality or accessibility.
Enhanced Fiber Protection
Integrated bend radius limiters and strain relief mechanisms prevent fiber damage during installation and operation.
Flexible Mounting Options
Universal mounting bracket supports wall, pole, or strand installation with tool-less adjustment capabilities.
Installation Types
The terminal box's flexible design works in multiple situations, so network planners can pick the best installation method based on what the environment and operational needs call for.
Wall-mounted Installation
This approach means securing the terminal box right onto vertical surfaces using the right mounting hardware. Wall-mounted installations work great for indoor spots or protected outdoor locations where pole mounting isn't really an option.
Pole-mounted Installation
For traditional telecom setups, the terminal box can be attached to utility poles with special mounting brackets. This method keeps things accessible while protecting them from ground-level issues.
Wire Messenger Installation
When aerial cable deployment makes more sense, the terminal box can hang from messenger wires. This approach doesn't take up ground space and makes cable routing and maintenance access pretty straightforward.
Industry application scenarios and solutions
Technical Support and Quality Assurance
All our fiber distribution boxes undergo rigorous testing protocols to ensure long-term reliability and performance consistency. Our quality management system is certified to ISO 9001:2015 standards, reflecting our commitment to excellence in manufacturing processes and product quality.
Each unit is subjected to environmental stress testing, including temperature cycling, humidity exposure, and mechanical impact resistance evaluation. Optical performance validation ensures that insertion loss and return loss parameters meet or exceed industry specifications. Material testing confirms UV resistance and flame retardancy properties for safe outdoor deployment.
Our products comply with RoHS directives, ensuring environmental responsibility throughout the product lifecycle. Customization options are available to meet specific project requirements, with our engineering team providing technical support during the specification and implementation phases.
