Fiber Optical Splitter Box
Model: GLF6-15N27 Fiber Optical Splitter Box
Dimensions:380(L)×360(W)×120(H) mm
Weight (kg):4.0-4.5kg
Cable entrance ports:4
Splice capacity:24f
Splitter:GXF6-15N17B support 2*1:8 cassette PLC
Adaptor:GXF6-15N17A support 24 pcs SC/FC adaptor
- Product Introduction
GLF6-15N27 Fiber Optical Splitter Box
The main function of GLF6-15N27 is providing splicing, distribution and protection for fiber, this array contains GLF6-15N27A and GLF6-15N27B. The feature of this distribution box is its good inside structure, easy operation stable performance. This can be installed by pole-mounting or wall-mounting.
Product Overview
The GLF6-15N27 series of Fiber Optical Splitter Box, available as an adapter-type (GLF6-15N27A) and a splitter module-type (GLF6-15N27B), provides a durable housing for fiber optic management. The enclosure is specifically designed to facilitate fiber splicing, manage distribution, and provide environmental protection.
It features an intelligently designed internal structure for easy operation and stable performance. The box offers flexible installation options, supporting both pole-mounting and wall-mounting, making it suitable for various outdoor deployment scenarios.
Key Features
FEATURE 01
Accommodates 10-15 cables and 8 figure-8 drop cables with a maximum capacity of 24 fibers
FEATURE 02
Equipped with one splice tray supporting up to 24 fiber splices
FEATURE 03

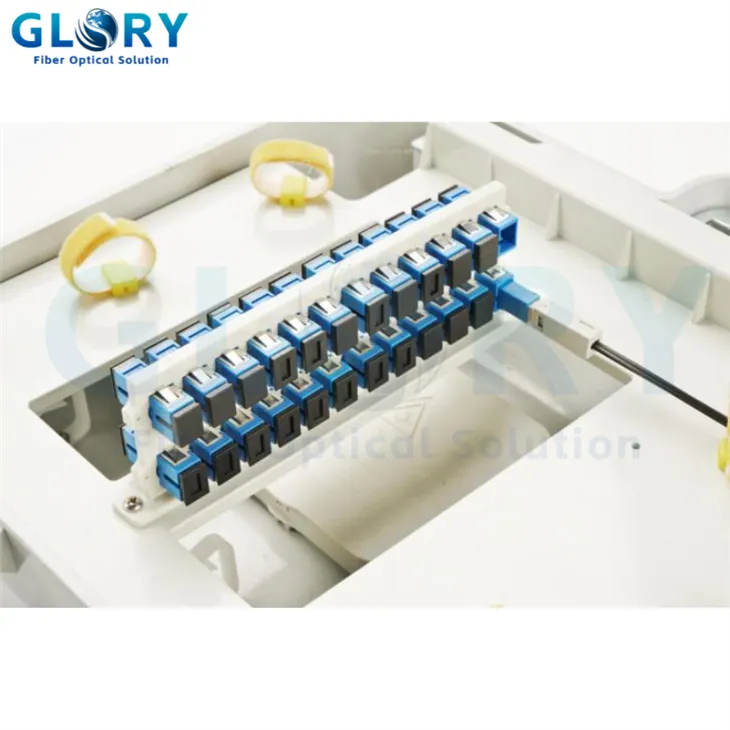

Compatible with PLC splitters (2x1:8) and up to 24 SC or FC adapters
FEATURE 04
Constructed from high-grade SMC material, providing excellent UV resistance and durability
FEATURE 05
Features a user-friendly spring lock mechanism for easy and secure access
FEATURE 06
Rated IP55 for superior protection against dust and water ingress
Industry application scenarios and solutions
Internal Structure
Specifications
The GLF6-15N27 Fiber Optical Splitter Box has model number GLF6-15N27 with dimensions of 380 x 360 x 120 mm and weighs between 4.0 - 4.5 kg. It features 4 cable entrance ports and 1 splice tray with a splice capacity of 24F.
The GLF6-15N27B variant supports 2x1:8 cassette PLC splitters, while the GLF6-15N27A supports 24 pieces of SC/FC adapters. The product has an IP55 protection rating, operates in temperatures from -40°C to +60°C, and functions effectively at atmospheric pressures between 70 - 106 Kpa.
|
Model No |
GLF6-15N27 |
|
Dimensions |
380(L)×360(W)×120(H) mm |
|
Weight (kg) |
4.0-4.5kg |
|
Cable entrance ports |
4 |
|
Splice tray no |
1 |
|
Splice capacity |
24f |
|
Splitter |
GLF6-15N17B support 2*1:8 cassette PLC |
|
Adaptor |
GLF6-15N17A support 24 pcs SC/FC adaptor |
|
IP level |
IP55 |
|
Operation temperature |
-40~+60℃ |
|
Atmospheric pressure |
70~106Kpa |
