Fiber Optic Junction Box Outdoor
Model Name:Fiber Optic Junction Box Outdoor
Application: FTTx
Waterproof Grade: IP68
Material: ABS
Color: Black
Operating Temperature: -25~ +60（℃）
Installation: Aerial-mounted
- Product Introduction
Product Overview

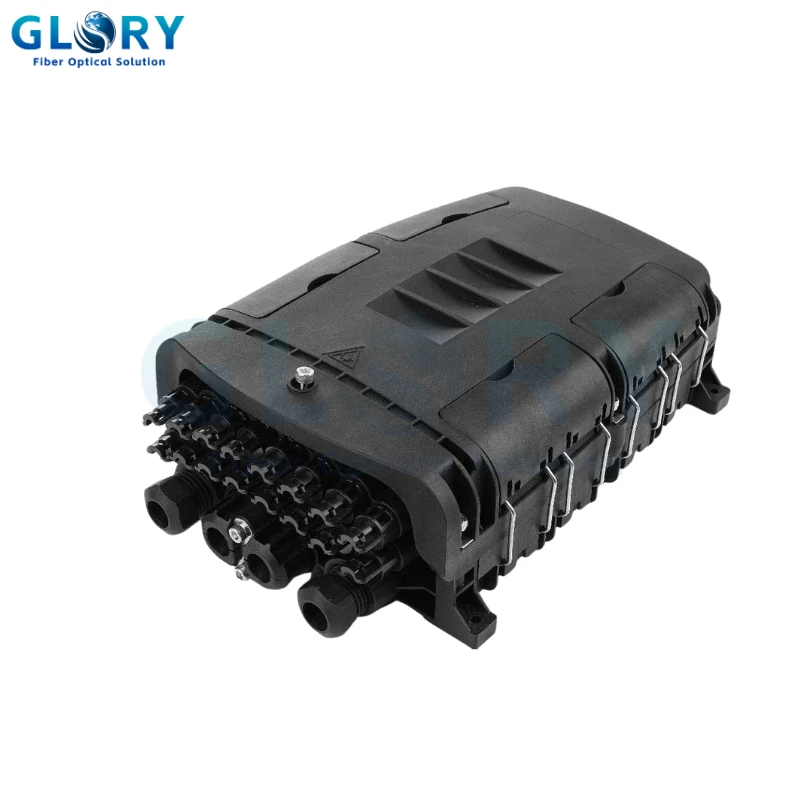

This Fiber Optic Junction Box Outdoor represents the cutting-edge progress in optical network endpoint solutions. This 4-port fiber distribution chassis is specifically developed for contemporary FTTx (Fiber to x) infrastructure projects. The space-optimized shell integrates complete optical fiber organization functions, meeting the requirements of modern network deployment. By embedding PLC (Planar Optical Wave Circuit) splitting technology, the system provides a streamlined signal distribution while maintaining the quality of peak optical signals.
Mechanical Specifications

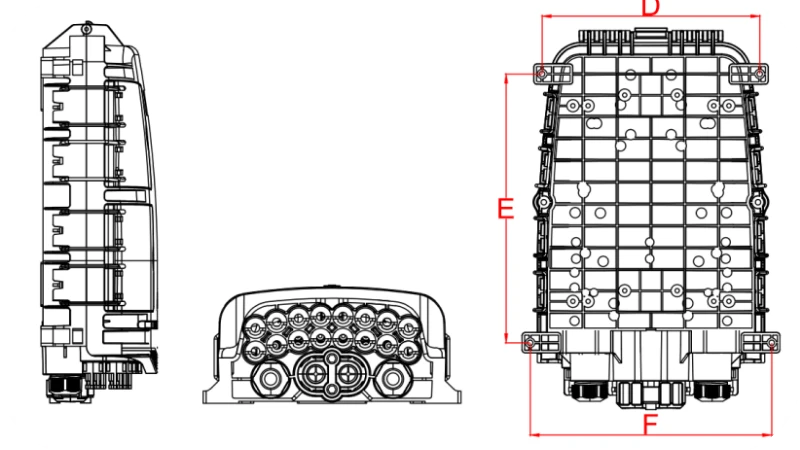

| Item | Specification | Remarks |
|---|---|---|
| External Dimensions (mm) | 378×255×116 | |
| Color | Black | Customizable |
| Maximum Splicing Capacity | 108 cores | 4D+1C Tray Configuration |
| Maximum Cable Diameter (mm) | ∅18 |
16-Core Fiber Optic Distribution Box Wiring Diagram

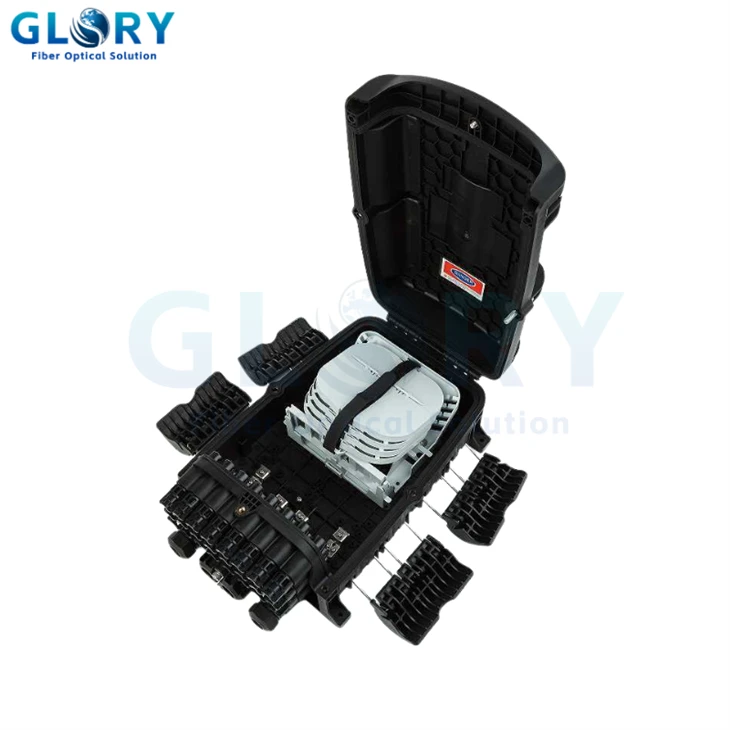

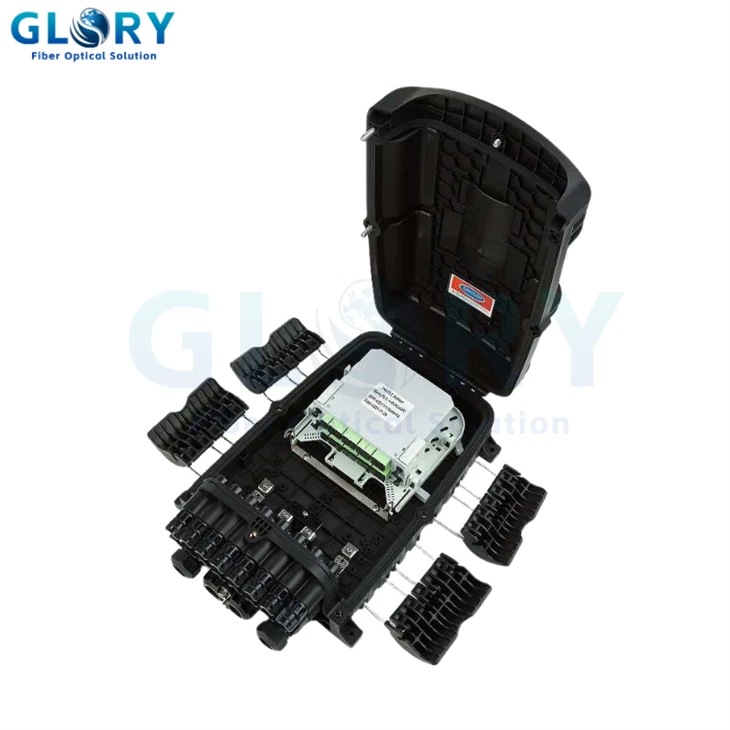

Splicing Tray Specifications
| Tray Type | Dimensions (H×W×D, mm) | Splicing Capacity | Splitter Capacity |
|---|---|---|---|
| Tray A | 134×104×8 | 12 cores | 1 unit (1×2/1×4/1×8) |
| Tray B | 134×104×4 | 8 cores | / |
| Tray C | 136×104×4 | 12 cores | / |
| Tray D | 136×104×8 | 24 cores | / |
| Tray E | 135×125×8 | 24 cores | 1 unit (1×2/1×4/1×8) |
Advanced Technical Features
Space Optimization
Compact footprint design maximizes installation flexibility in space-constrained locations while maintaining full functionality.
Enhanced Fiber Protection
IP68 rating ensures complete protection against dust ingress and water jets, guaranteeing long-term reliability.
Easy Maintenance
Tool-less access and modular components simplify installation and reduce maintenance time by up to 40%.
Installation Types
The terminal box's flexible design works in multiple situations, so network planners can pick the best installation method based on what the environment and operational needs call for.
Wall-mounted Installation
This approach means securing the terminal box right onto vertical surfaces using the right mounting hardware. Wall-mounted installations work great for indoor spots or protected outdoor locations where pole mounting isn't really an option.
Pole-mounted Installation
For traditional telecom setups, the terminal box can be attached to utility poles with special mounting brackets. This method keeps things accessible while protecting them from ground-level issues.
Wire Messenger Installation
When aerial cable deployment makes more sense, the terminal box can hang from messenger wires. This approach doesn't take up ground space and makes cable routing and maintenance access pretty straightforward.
Industry application scenarios and solutions
This fiber distribution box is engineered for diverse deployment scenarios in modern telecommunications networks. Its primary application includes FTTH (Fiber to the Home) implementations where reliable signal distribution is critical. The enclosure serves as an ideal termination point in MDU (Multi-Dwelling Unit) installations, providing centralized fiber management for multiple subscribers.
Commercial applications include enterprise network deployments, campus connectivity solutions, and industrial park installations. The robust construction and environmental protection make it suitable for outdoor installations in varying climatic conditions. Telecommunications providers value its compatibility with existing infrastructure and straightforward integration into network expansion projects.
Technical Support and Quality Assurance
All our fiber distribution boxes undergo rigorous testing protocols to ensure long-term reliability and performance consistency. Our quality management system is certified to ISO 9001:2015 standards, reflecting our commitment to excellence in manufacturing processes and product quality.
Each unit is subjected to environmental stress testing, including temperature cycling, humidity exposure, and mechanical impact resistance evaluation. Optical performance validation ensures that insertion loss and return loss parameters meet or exceed industry specifications. Material testing confirms UV resistance and flame retardancy properties for safe outdoor deployment.
Our products comply with RoHS directives, ensuring environmental responsibility throughout the product lifecycle. Customization options are available to meet specific project requirements, with our engineering team providing technical support during the specification and implementation phases.
