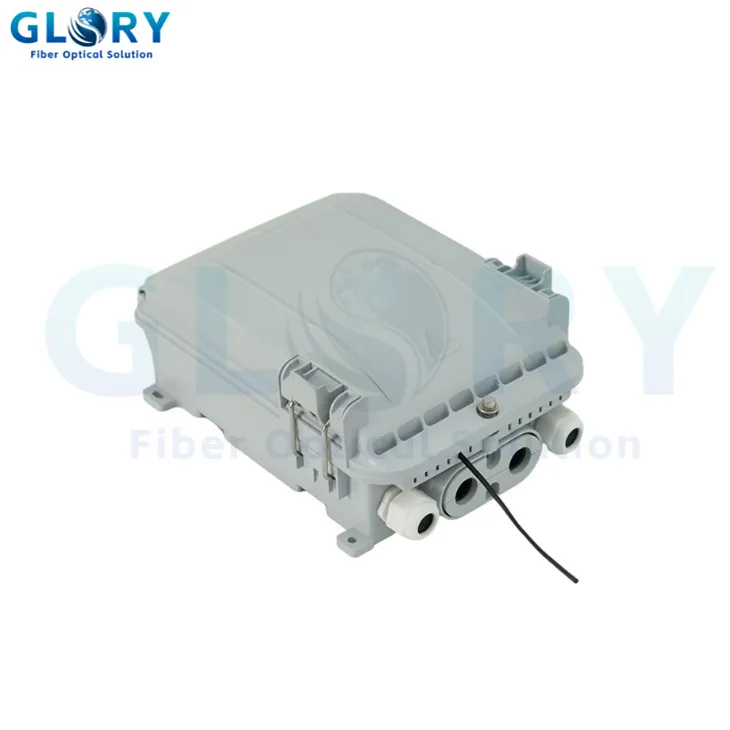

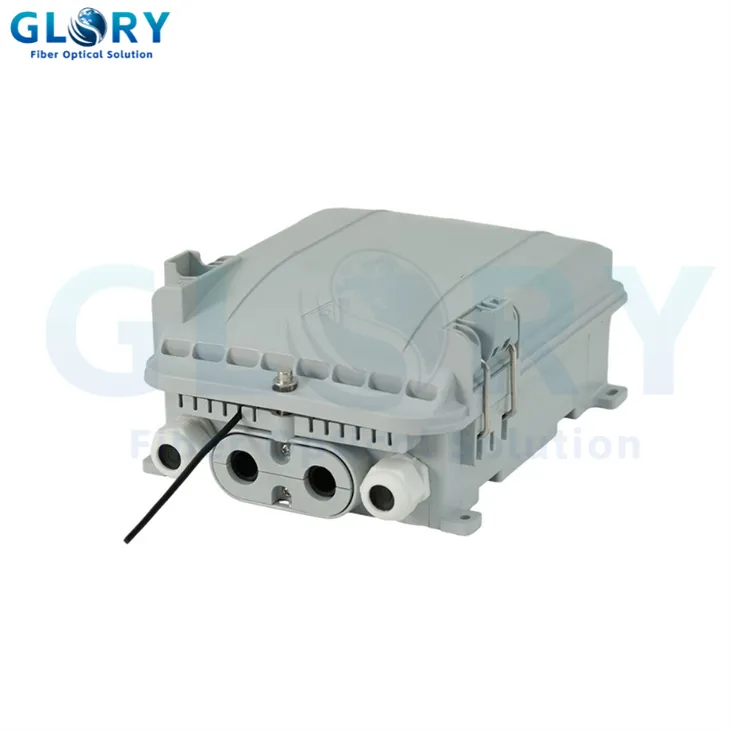

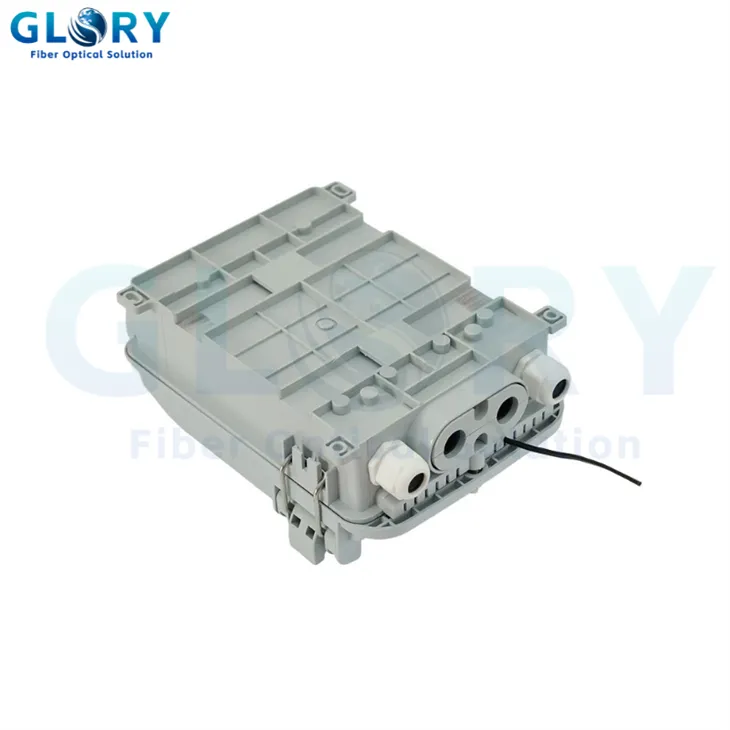

Optical Fiber Cable Distribution Box
Model:GL-P1-12S Optical Fiber Cable Distribution Box
Wiring Capacity:12 pcs drop cable(2×3mm）
Splicing capacity (unit: core):18
PLC Splitter:2 pcs of 1:8
Type of splicing tray:GL-R019-1 and GL-R019-2
Splicing capacity per tray (unit: core):18 core
Max. tray qty:2 PCS
Optical cable entrance and exit:1 uncut cable port and 2 cable glands (MAX Φ 12.5 mm)
12 pcs drop cable (2×3mm)
Installation mode:Pole/wall-mounting, aerial cable-mounting
- Product Introduction
Professional solution for loop Optical Fiber Cable Distribution Box in FTTx network systems. This distribution box serves as the critical termination point connecting feeder cables with drop cables, integrating splicing, splitting, distribution, storage, and connection functionalities in one robust enclosure.
Designed for durability and ease of use, our terminal box ensures reliable performance in various environmental conditions with protection level up to IP65.
Compact & Lightweight
Small-sized design with complete functionality and easy operation, perfect for space-constrained installations.
4-Port Cable Entrance
Dedicated ports for both feeder cable and drop cable connections, ensuring organized and efficient cable management.
Easy Maintenance
Designed for straightforward maintenance and future capacity expansion without complicated procedures.
PLC Splitter Support
The drop leaf can accommodate 1 piece of 1×8 PLC splitter, enhancing distribution capabilities.
Robust Protection
Constructed from PC+ABS material with wet-proof, water-proof, dust-proof, and anti-aging properties. IP65 protection level.
Fiber Bend Radius Control
Ensures optimal fiber protection with bend radius control greater than 40mm, preventing signal loss and damage.
Technical Specifications
Environmental Parameters
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 0% to 95%
Performance Parameters
Insertion Loss: ≤ 0.3 dB
Return Loss: ≥ 45 dB
Operating Wavelength: 1260~1650 nm
Mechanical Specifications
Material: PC+ABS
Protection Level: IP65
Flammability Rating: UL94 V-0

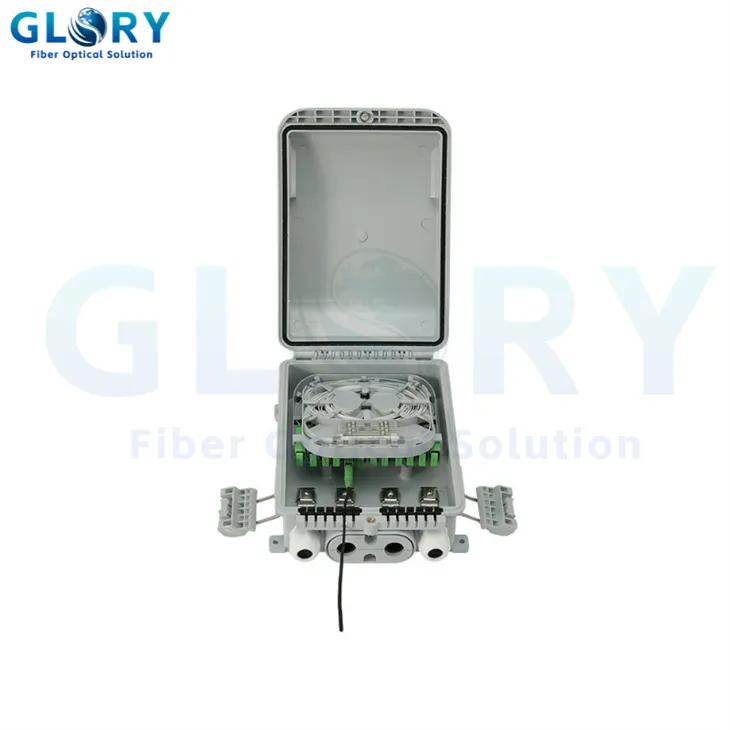

Splicing Tray Structure
Capacity: 12 fibers
Bend Radius: ≥ 40mm
Splitter Installation: 1×8 PLC
Installation Types
Wall-mounted Installation
Secure and space-efficient mounting on vertical surfaces, ideal for building basements, corridors, and equipment rooms.
Pole-mounted Installation
Designed for outdoor applications with sturdy mounting brackets that attach securely to telephone poles and utility posts.
Wire Messenger Installation
Suspension installation between poles or structures using messenger wire, providing flexibility in aerial deployments.
Industry application scenarios and solutions
Professional applications
Ideal choice for telecommunications infrastructure, broadband network expansion, FTTx deployment and enterprise network solutions. This product complies with international quality and performance standards, ensuring reliable operation under various climatic conditions.
Service and Support
We extend our gratitude for your support of our company's products. Should you have any questions or suggestions, please do not hesitate to contact us. We are committed to providing you with timely and excellent service.
