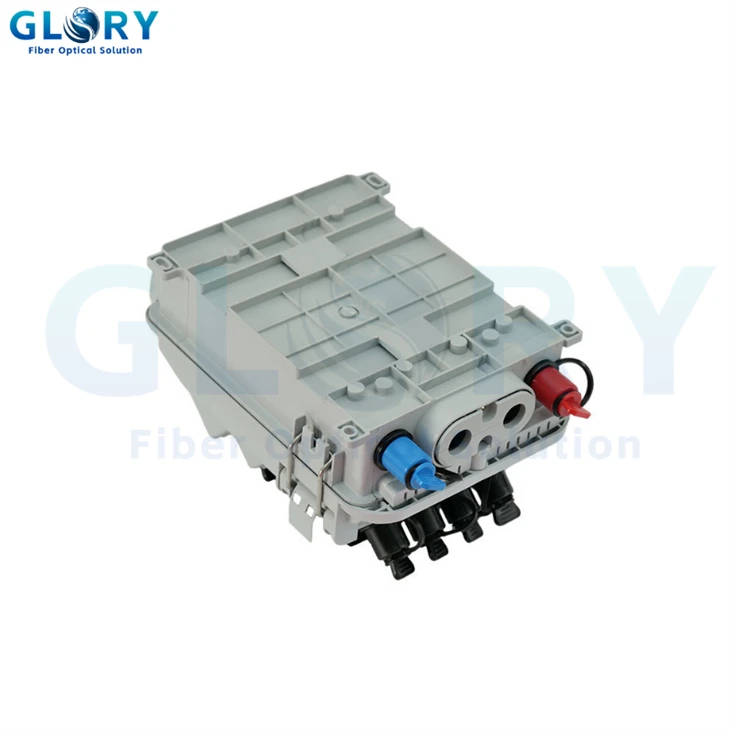

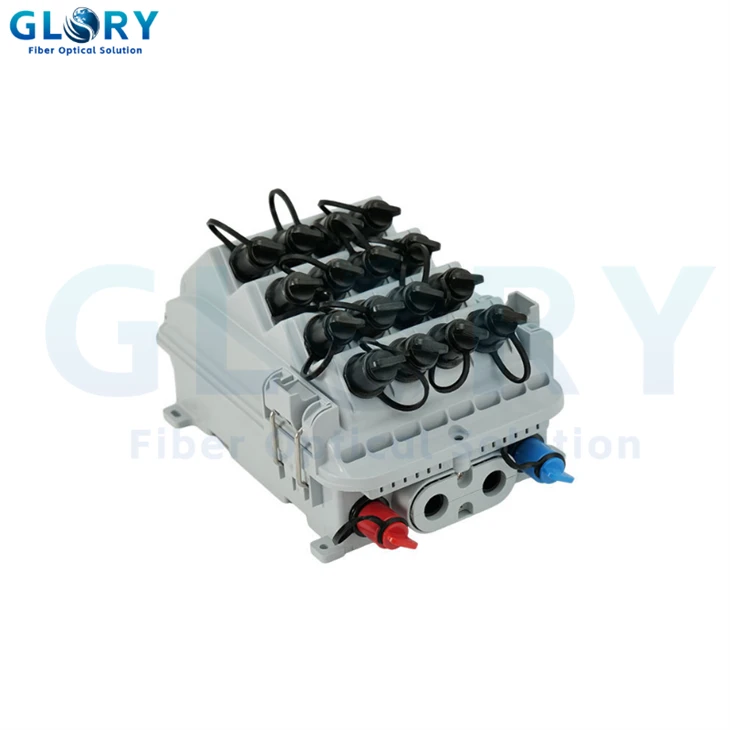

FTTH Fiber Optic Junction Box
Model:GL-P2-16R2 FTTH Fiber Optic Junction Box
Color:Black/Gray
Capacity:16 cores
Protection rating:IP65
Material:PC+ABS
Inlet/outlet:2/16
Dimension(MM):242*167*113
Weight:0.78kg
- Product Introduction
The GL-P2-16R2 FTTH Fiber Optic Junction Box represents a complex solution designed for loop terminal fiber distribution in modern telecommunications infrastructure. It can achieve unified and efficient integrated functions such as optical fiber splicing, terminal and distribution within the shell. Convert traditional optical cables to single-core pre-connected SC/APC output ports to simplify the deployment process for network operators.
The GL-P2-16R2 is suitable for various applications, such as FTTx deployment, broadband access networks and urban infrastructure. Its design concept centers on enhancing network efficiency while reducing installation time and costs, ensuring uninterrupted connections in both residential and commercial environments.
Plug-and-Play
Pre-connected cables eliminate fusion splicing requirements
Tool-Free Installation
Rapid insertion mechanism for quick deployment
Durable Construction
High-quality PC+ABS material for long-term reliability
This FTTH Fiber Optic Junction Box features an ingenious structural design, being compact and lightweight. While offering comprehensive functions and a user-friendly operation experience, it significantly saves installation space. Its moderate size makes the equipment easy to move and position in narrow or restricted environments, while the sturdy casing and internal structure ensure long-term operational reliability.
A key technical highlight lies in its pre-terminated plug-and-play functionality. This design utilizes pre-assembled incoming optical cables, completely avoiding the traditional optical fiber splicing process. Therefore, during the installation process, there is no need to open the equipment casing. This not only significantly reduces labor costs and operation time, but also effectively reduces connection errors or performance damage that may be introduced due to improper on-site operation.
Technical Specifications
|
Model No. |
GL-P2-16R2 |
Color |
Black/Gray |
|
Capacity |
16 cores |
Protection rating |
IP65 |
|
Material |
PC+ABS |
Inlet/outlet |
2/16 |
|
Dimension(MM) |
242*167*113 |
Weight |
0.78kg |
Installation Types
Wall-mounted Installation
Secure and space-efficient mounting on vertical surfaces, ideal for building basements, corridors, and equipment rooms.
Pole-mounted Installation
Designed for outdoor applications with sturdy mounting brackets that attach securely to telephone poles and utility posts.
Wire Messenger Installation
Suspension installation between poles or structures using messenger wire, providing flexibility in aerial deployments.
The core advantages of the GL-P2-16R2 FTTH Fiber Optic Junction Box lie in its outstanding installation versatility, flexible optical fiber management capabilities, and modular splitter accommodation design. These features enable it to effectively adapt to complex network deployment environments. This terminal box supports multiple installation methods such as pole mounting, wall mounting and cable suspension, enabling it to be flexibly deployed in various application scenarios including overhead, underground pipelines or indoors.

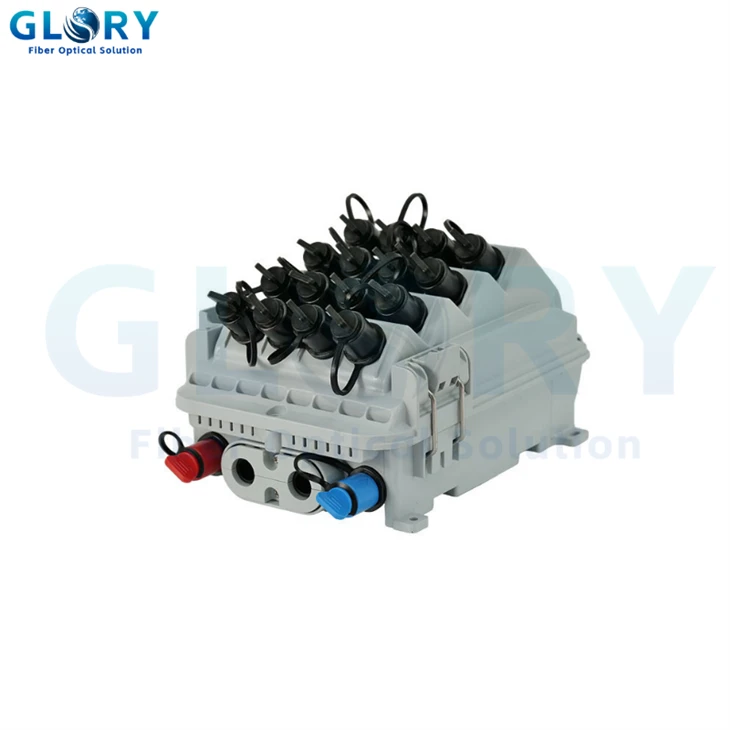

Both the left and right sides of the equipment housing are equipped with optical fiber output ports, providing a flexible and efficient alternative for optical cable cabling and path planning in complex network layouts, significantly simplifying the cable management process.

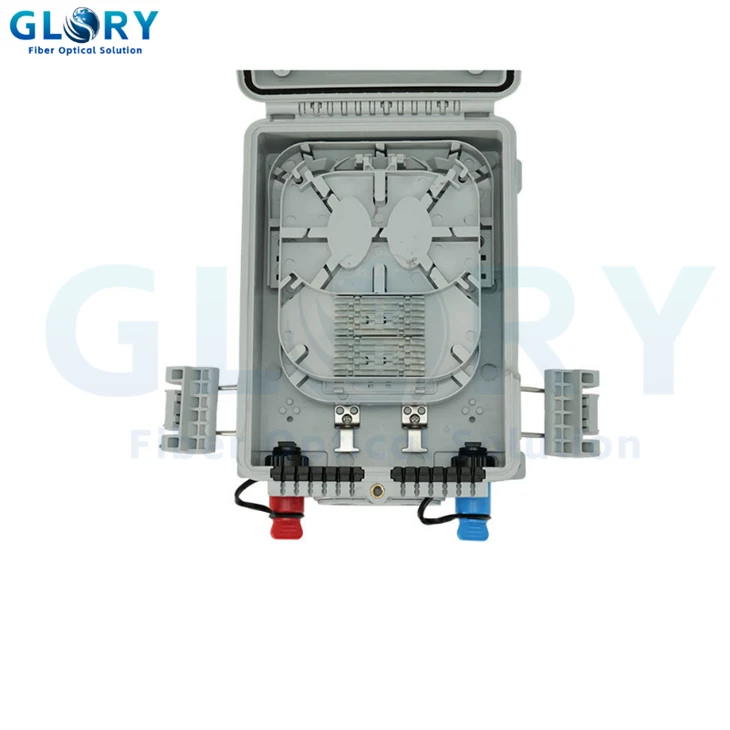

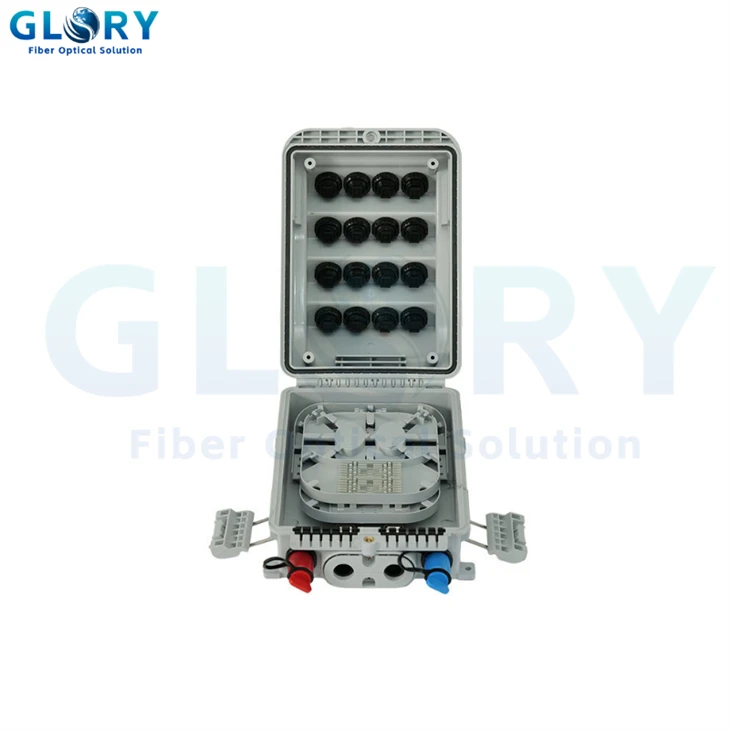

In addition, it adopts a modular tray architecture inside, which is specifically optimized for installing PLC (Planar optical wave Circuit) optical splitters. It can be flexibly configured, for example, to accommodate one 1:17 splitter unit or two 1:8 splitter units, thereby meeting different network splitting requirements.
Through the above meticulous design, the GL-P2-16R2 terminal box achieves high flexibility in installation methods, fiber optic cabling and core splicing functions, making it highly suitable for a variety of modern communication scenarios such as FTTH (Fiber to the Home) access networks, enterprise networks and data center interconnections.
Industry application scenarios and solutions
Professional applications
In conclusion, the GL-P2-16R2 FTTH Fiber Optic Junction Box effectively meets the core requirements of modern optical communication networks for reliability, scalability and operational efficiency by combining a robust structural design with intelligent functional configuration. Its compact appearance and lightweight design facilitate rapid deployment in space-constrained scenarios, while the high-strength shell material ensures the physical durability of the device during long-term use
For further detailed technical parameters or customized configuration plans, please contact our technical support team for specialized consultation.
