Fiber Distribution Box
Model: GL-FDB-H208 8-Core Outdoor Wall-Mount Fiber Distribution Box
- Product Introduction

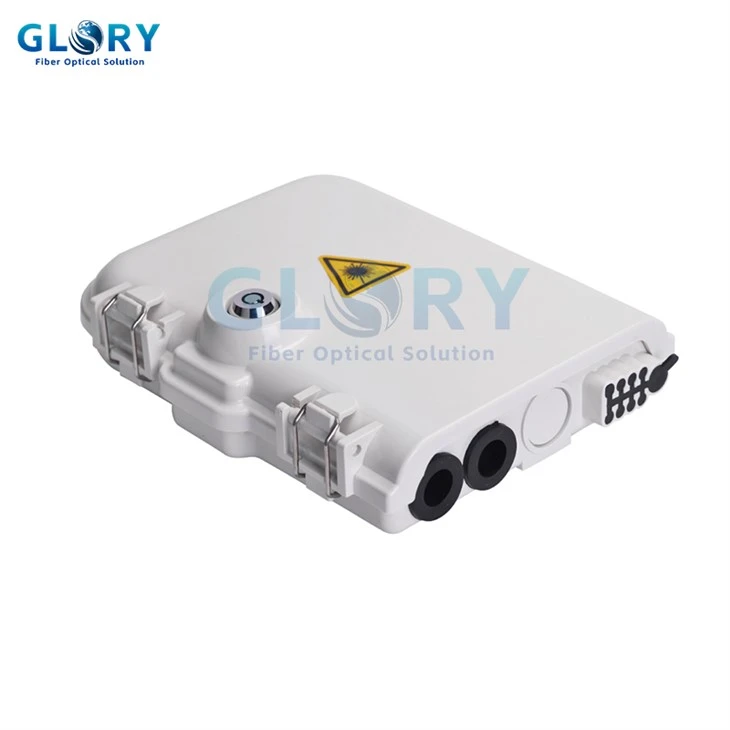

8-Core Outdoor Wall-Mount Fiber Distribution Box
Experience effortless fiber optic distribution with our premium FTTH Optical Distribution Box. This versatile solution accommodates two entry cables of up to 16mm in diameter and outputs up to eight FTTH drop cables. Perfect for wall or pole mounting, this box is constructed from high-quality ABS plastic and features an IP65 rating for superior protection against harsh weather conditions. Its spacious interior can house up to eight LC Duplex or SC Simplex adapters.
Specifications:
|
Product name |
Fiber Distribution Box |
|
Product Size |
240x195x66 mm |
|
Max Capacity |
LC for 16 cores, SC for 8 cores |
|
Max ratio |
1:8 |
|
Cable entry ports |
IN 2 OUT 8 |
|
Diameter of Cable |
Φ16mm |
|
Assembling method |
pole, wall-mounting |
|
Pole, wall-mounting |
IP65 |
Feature of Fiber Distribution Box:
• Wall-mounted for indoor or outdoor use, in white color, with a graceful style and good environmental adaptability.
• Made of high-quality plastic; features anti-collision, flame retardant, and impact-resistant properties.
• UV-resistant, damp-proof, waterproof, dustproof, and resistant to aging.
• Fits 1x4 and 1x8 PLC splitter assembly configurations.
• Features 2 input ports and 8 output ports on the bottom; easy to install on walls or poles.
• The rear tray is for splicing a feeder cable fiber to the PLC splitter, while the front tray connects to subscriber drop cables via the adapter plate on the tray.
• Cables, pigtails, and patch cords run through their own dedicated paths without interfering with each other, facilitating easy maintenance.
• The distribution panel flips up; the feeder cable can be placed in a cup-joint manner, making maintenance and installation easier.
Application:

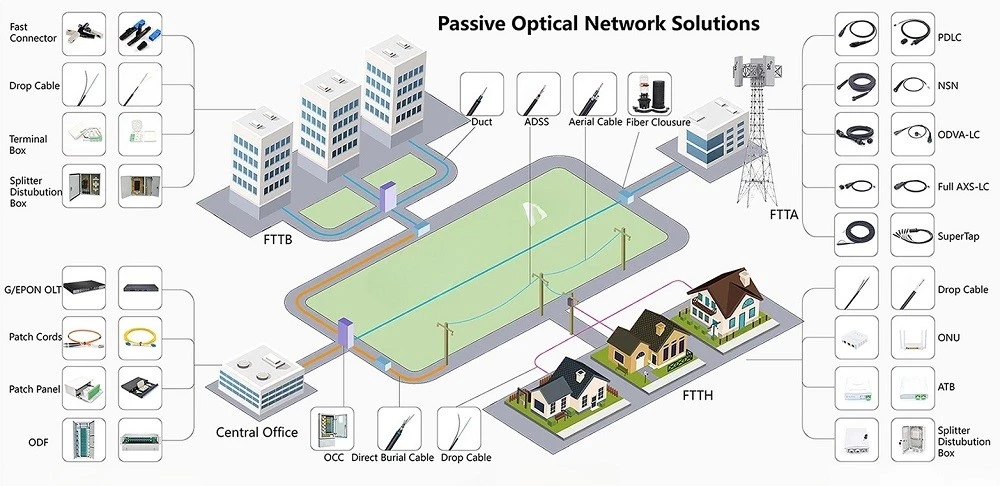

The optical network signal delivery to the end user is generally categorized into three scenarios: FTTH, FTTB, and FTTC, which constitute the last mile of optical fiber communication. The installation locations of the fiber distribution box also vary across these scenarios. In FTTH, it is installed on the floor in the corridor; in FTTB, it is mounted on the building wall; and in FTTC, it is typically installed on utility poles in rural areas.
