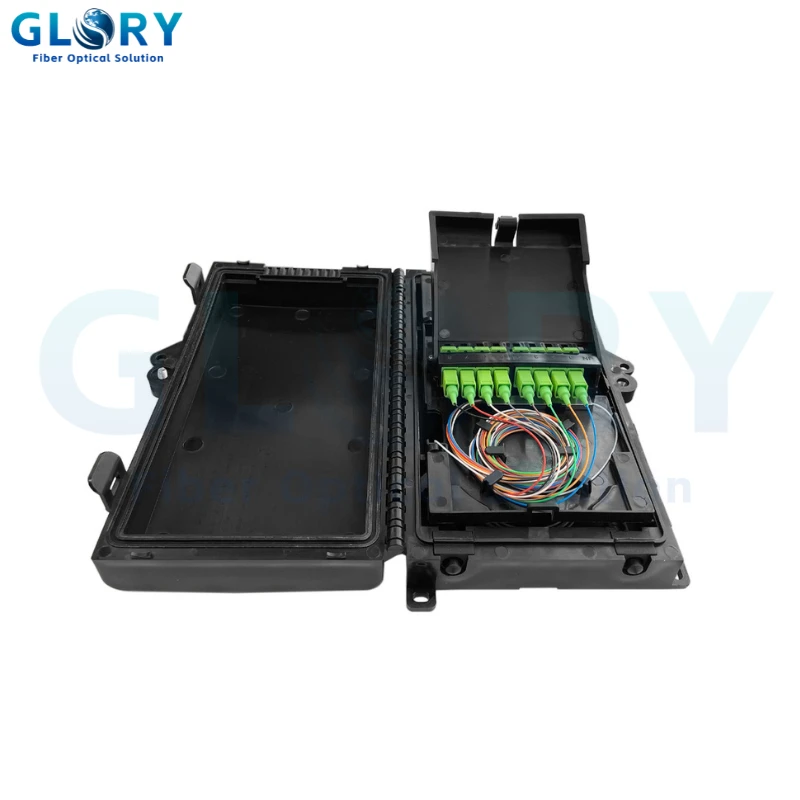

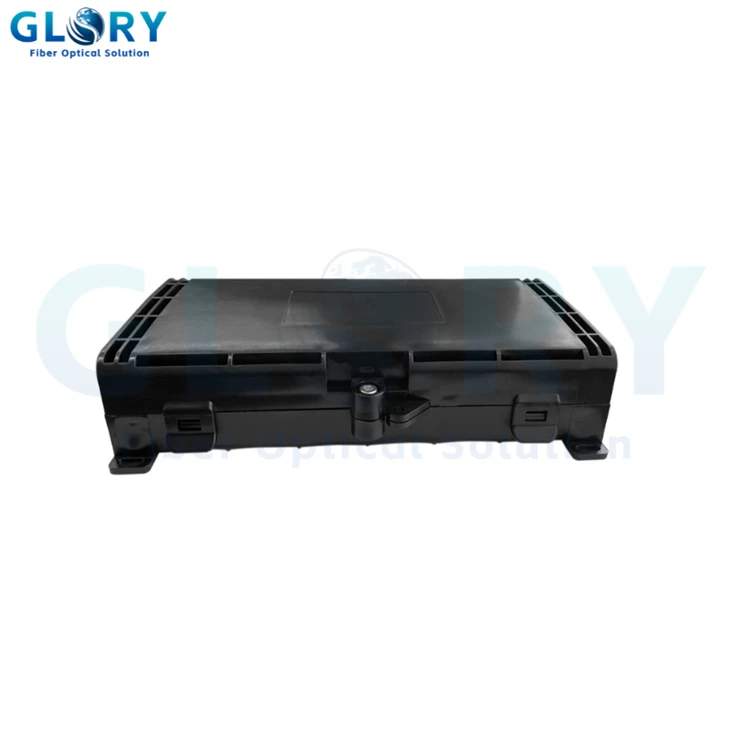

FTTx Fiber Optic Termination Box
Model Name:FTTx Fiber Optic Termination Box
Application: FTTx
Waterproof Grade: IP65
Material: ABS
Color: Black
Capacity: 8 cores
Operating Temperature: -25~ +60（℃）
Installation: pole-mounted, wall-mounted
- Product Introduction
Product Overview
This FTTx Fiber Optic Termination Box is specially designed to meet the demanding requirements of modern optical fiber network deployment. The integrated cable management system can efficiently organize optical fiber lines, not only shortening the installation time but also effectively reducing the risk of signal attenuation. The product design ensures outstanding environmental protection performance while also taking into account the convenience of user operation.
In the FTTH (Fiber to the Home) environment, the box serves as the centralized distribution center for multi-unit residential buildings, providing streamlined fiber organization and simplified service activation. For enterprise network applications, it provides a space-saving solution for distribution points within floors or telecommunications machine rooms that need to optimize space utilization.
This product features robust durability and comprehensive environmental shielding, making it suitable for outdoor installation under harsh conditions. Telecom operators attach great importance to their consistent performance in maintaining signal quality while resisting adverse weather factors.
Key Features and Benefits
Quick Installation
Tool-less design and clear fiber routing paths significantly reduce installation time and complexity.
Easy Maintenance
Hinged cover with robust latch mechanism provides easy access for splicing and maintenance operations.
Superior Organization
Integrated fiber management system with clear routing channels minimizes bending radius issues.
Future-Proof Design
Modular architecture allows for easy upgrades and adaptations to evolving network requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Application Environment | Indoor/Outdoor (IP65 Rated) |
| Material Composition | Engineering-grade ABS + PC |
| Color Options | Light Gray, White |
| Fiber Capacity | Up to 8 fibers |
| Adapter Types | SC, LC, FC (customizable) |
| Operating Temperature | -40°C to +75°C |
| Installation Methods | Wall-mount, Pole-mount |
| Dimensions | 240mm × 180mm × 60mm |
| Ingress Protection | IP65 (Dust-tight, Water jet protected) |
| Weight | Approx. 1.2 kg |
Industry application scenarios and solutions
Technical Support and Quality Assurance
All our fiber distribution boxes undergo rigorous testing protocols to ensure long-term reliability and performance consistency. Our quality management system is certified to ISO 9001:2015 standards, reflecting our commitment to excellence in manufacturing processes and product quality.
Each unit is subjected to environmental stress testing, including temperature cycling, humidity exposure, and mechanical impact resistance evaluation. Optical performance validation ensures that insertion loss and return loss parameters meet or exceed industry specifications. Material testing confirms UV resistance and flame retardancy properties for safe outdoor deployment.
Our products comply with RoHS directives, ensuring environmental responsibility throughout the product lifecycle. Customization options are available to meet specific project requirements, with our engineering team providing technical support during the specification and implementation phases.
Service and Support
We sincerely appreciate your trust and support. It is our unwavering commitment to provide you with consistent, dependable service and technical assistance. Should you have any inquiries, please feel free to reach out to us at any time. We look forward to fostering a long-term and mutually beneficial partnership with you.
