Fiber Cable Distribution Box

Model:GL-FTTH-H08 Fiber Cable Distribution Box
8 Core Fiber Optic Distribution Box/Fiber optical termination box (OTB) is a compact fiber management box used for FTTH application. It is widely used in FTTx cabling for both fiber cabling and cable management.

Send Inquiry

Product Introduction

8 Cores Outdoor Fiber Cable Distribution Box

The optical fiber cable distribution box is a key wiring device in FTTH systems, designed for user distribution. It provides protection and management for fiber cables, supporting termination, branching, and cross-connection functions.

Primarily used as a user access point in FTTH-ODN networks, it comes in indoor and outdoor types based on installation scenarios. Functionally, it can be categorized into distribution type and optical splitter type. GL-FTTH-H08 Fiber Cable Distribution Box serves as a termination point for feeder cables, connecting them to drop cables in FTTx networks. It enables fiber splicing, splitting, and distribution while ensuring robust protection and efficient network management.

Specifications:

Model	GL-FTTH-H08 Fiber Cable Distribution Box
Capacity	8 cores	IP Grade	IP67
Material	PP or PE	Dimensions	22015352 (mm)
Impact Test	IK10	Weight	600g/each
Entrance/Exit	2 ports/8 ports	Tray Capacity	8 cores (single) 1 pcs
Cable Diameter	5mm~16mm	Drop Cable	2mm~6mm
Operating temperature	-40℃～+65℃	Relative humidity	≤95% (+30℃)

Features:

• Made of high-quality engineering-grade plastic material (PP), with good mechanical strength, an elegant appearance, and sturdiness and durability.

• Suitable for indoor or outdoor use, with wall-mounted or pole installation options.

• Built-in stacked splice tray is easy to open; the splice tray can be removed, making installation and maintenance easy.

• Fiber routing is designed to be reasonable.

• Features clamping for feeder cable and drop cable, with fiber splicing, fixation, storage, and distribution all in one.

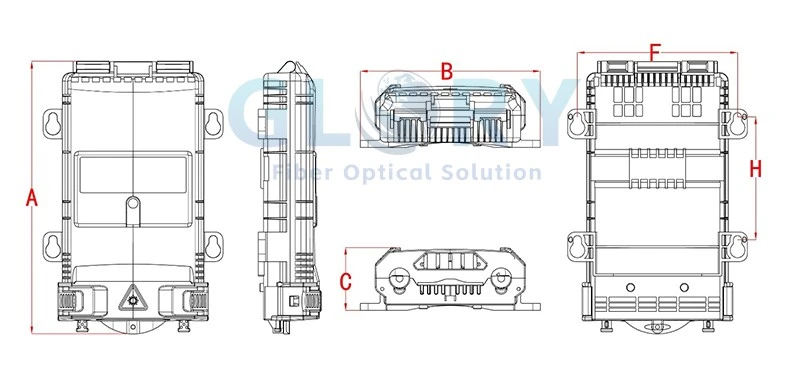

Fiber Cable Distribution Box Dimension:

Model

Size

AxBxC (mm)

Max Capacity

Derrick installation size FxH

Input the max cable diameter(mm)

GL-FTTH-H08

220x153x52

8 cores (SC/APC)

136x104

fiber cable box dimension

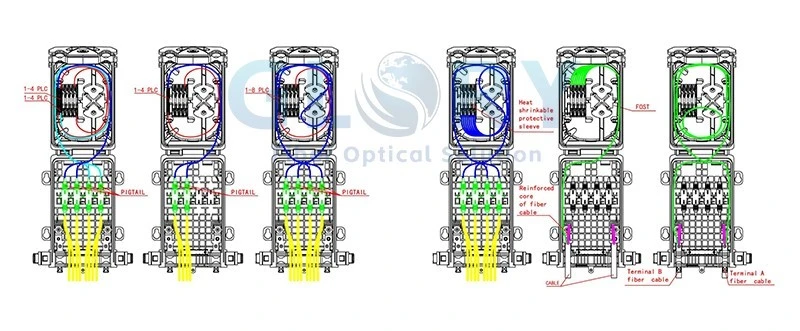

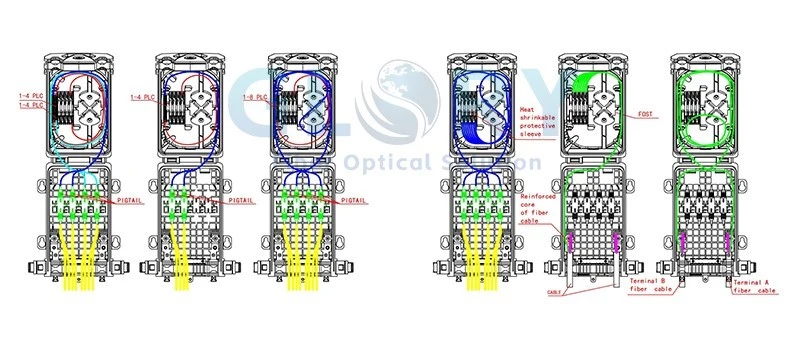

Fiber Routing Diagram:

fiber routing 1

fiber routing 2

Installation:

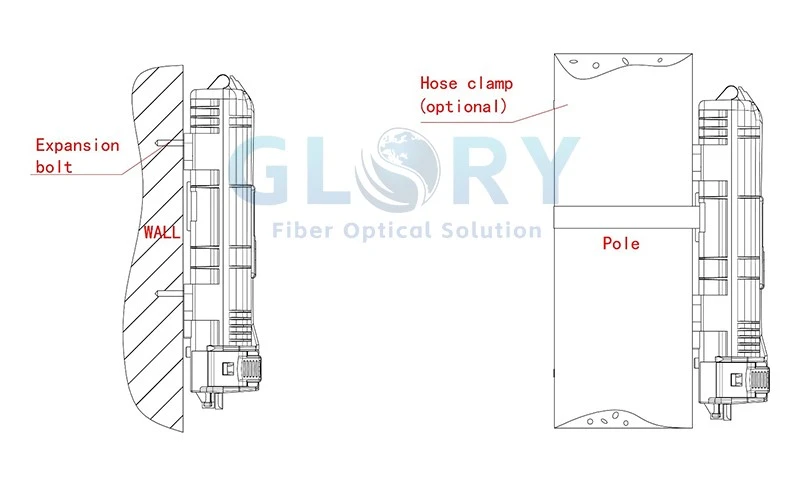

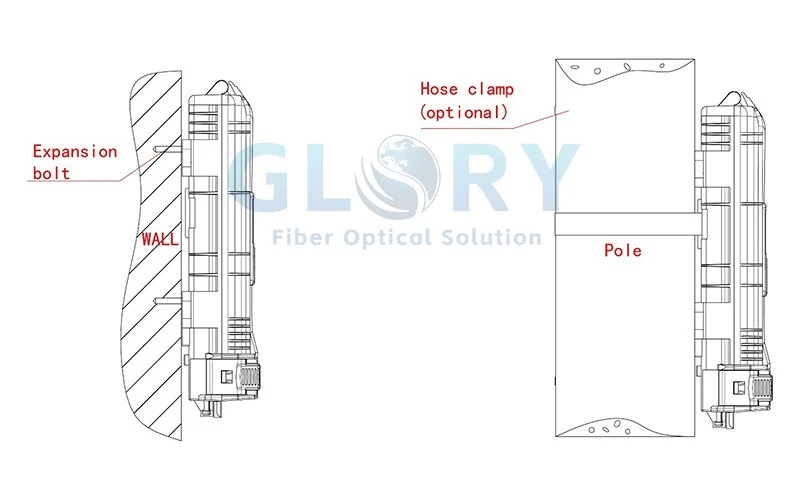

• Wall-mounted installation

Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the Fiber Cable Distribution Box to match up the holes and use bolt to fasten.

wall mouting
