Optical Cable Distribution Box
Product Model:Optical Cable Distribution Box GL-A8-24R
Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65/66.
Working temperature：-40℃~+85℃
Relative humidity： ≤85%（+30℃)
Atmospheric pressure：70KPa～106Kpa
Insertion loss： ≤0.15dB
UPC return loss： ≥50dB
APC return loss： ≥60dB
- Product Introduction
GL-A8-24R Fiber Optic Distribution Box
Advanced Sealed Node Solution for Demanding FTTx Network Infrastructure
Network Infrastructure Foundation
Product Introduction
Within the sophisticated architecture of FTTx communication network systems, optical signal transmission encounters critical nodal points that demand exceptional resilience and precision. The GL-A8-24R Optical Cable Distribution Box functions as this essential termination interface, establishing a robust convergence point where feeder cables interconnect with individual drop cables.
This component transcends conventional passive containment by operating as an integrated management system where delicate fiber splicing, splitting, and distribution operations are meticulously executed. The primary objective extends beyond basic connectivity-it establishes a comprehensive hermetic barrier that protects network integrity against environmental challenges, thereby ensuring consistent signal quality and sustainable operational performance for service providers and end-users alike.
Engineering Excellence and Material Composition
The fundamental design principle of the GL-A8-24R Optical Cable Distribution Box centers on complete environmental protection through its fully enclosed architecture. Manufactured from advanced PC-ABS composite materials, this closure demonstrates exceptional resistance to moisture penetration, water immersion, and particulate contamination.
Superior anti-aging characteristics ensure sustained performance under continuous ultraviolet radiation exposure and thermal cycling conditions. The attainment of IP65/66 protection classification validates the engineering methodology, confirming the product's capability to resist high-pressure water jets and fine dust ingress, establishing reliability in diverse outdoor installations and controlled indoor environments.

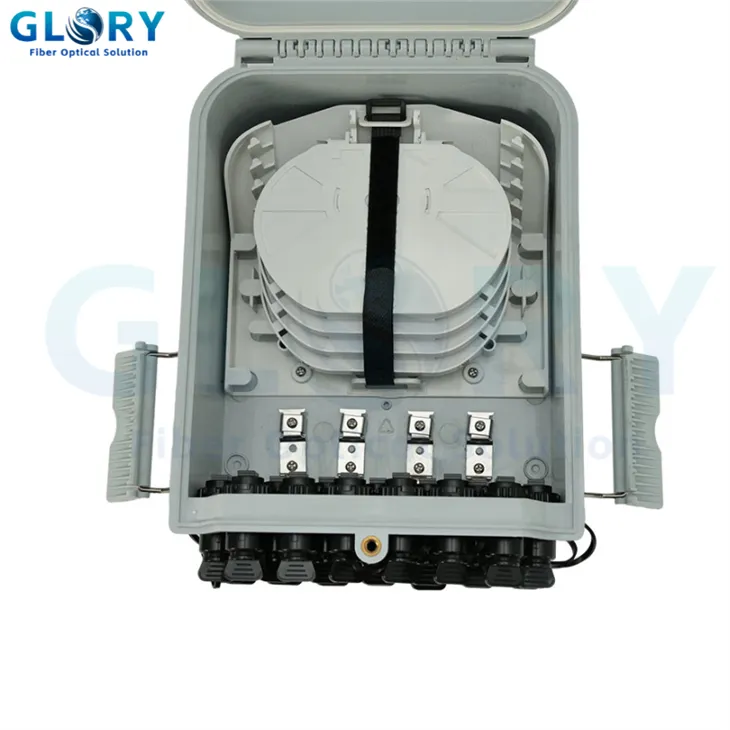

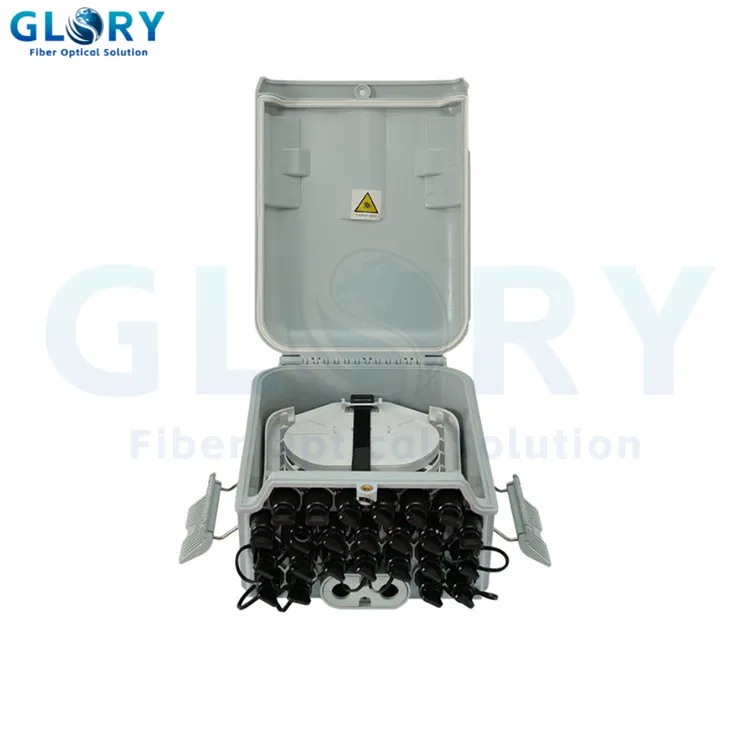

The robust external housing conceals a systematically organized internal configuration where each component maintains precise positioning, ensuring operational integrity from initial deployment. Clamping mechanisms for both feeder and drop cables coordinate seamlessly with fiber splicing, fixation, storage, and distribution systems, creating an integrated solution that simplifies complex network management requirements.
Technical Specifications and Performance Parameters
The GL-A8-24R is engineered to maintain operational integrity across extreme environmental conditions, adhering to rigorous technical standards that guarantee reliability under demanding circumstances.
Environmental Operating Conditions
Operational temperature range: -40°C to +85°C
Maximum relative humidity: ≤85% at +30°C
Atmospheric pressure tolerance: 70 kPa to 106 kPa
Optical Performance Metrics
Maximum insertion loss: ≤0.15 dB
Minimum UPC return loss: ≥50 dB
Minimum APC return loss: ≥60 dB
Electrical Protection Specifications
Insulation resistance: ≥2×10⁴ MΩ/500V DC
Dielectric strength: ≥3000V DC/minute
Performance standard: No puncture, no flashover
Installation Types
The IP65 Fiber Optic Distribution Box GL-A8-24R supports both wall-mounted and pole-mounted installation methods, making it suitable for FTTH pre-installation and field deployment scenarios. The design prioritizes user convenience with clear cable management pathways and accessible components that minimize setup time. This adaptability ensures reliable performance whether deployed in controlled indoor environments or challenging outdoor locations.
Wall-mounted Installation
Secure and space-efficient mounting on vertical surfaces, ideal for building basements, corridors, and equipment rooms.
Pole-mounted Installation
Designed for outdoor applications with sturdy mounting brackets that attach securely to telephone poles and utility posts.
Wire Messenger Installation
Suspension installation between poles or structures using messenger wire, providing flexibility in aerial deployments.
Industry application scenarios and solutions
This fiber distribution box is ideal for various FTTx network implementations. Its robust construction and superior sealing capabilities make it suitable for telecommunications infrastructure, data centers, and enterprise networks requiring reliable fiber termination solutions.
Quality Assurance and Logistics Management
The commitment to product excellence extends throughout the supply chain, with each GL-A8-24R unit undergoing meticulous packaging procedures incorporating moisture-proof and shock-absorption measures. Components are initially sealed in protective plastic enclosures before systematic placement within primary packaging, which receives additional sealing treatment. Standardized pictorial markings on external cartons provide clear handling instructions to prevent inversion and rolling during transportation operations. The logistics framework maintains controlled ambient conditions between -35°C and +55°C, protecting product integrity throughout the distribution process. Storage recommendations specify avoidance of excessive stacking and emphasize climate-controlled environments (below 45°C and above -5°C) isolated from corrosive agents, with extended storage maintaining relative humidity below 70% to preserve material properties and component functionality.
Service and Support
Thank you for your attention to our products. If you have any questions, we will provide technical support in a timely manner and serve you wholeheartedly.
