GYTC8S Outdoor Cable
Model:GYTC8S Outdoor Cable
GYTC8S is a typical outdoor use fiber optic cable for aerial applications .

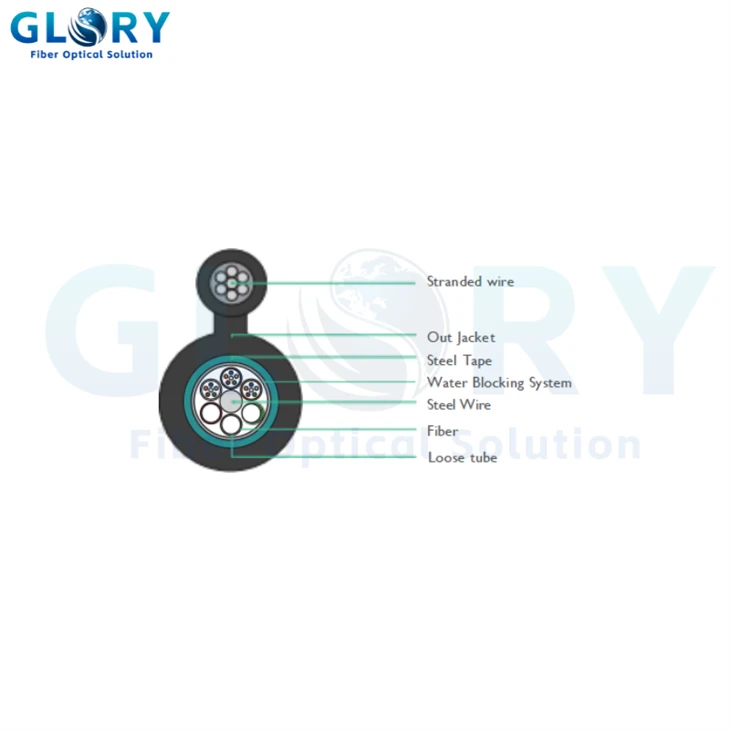

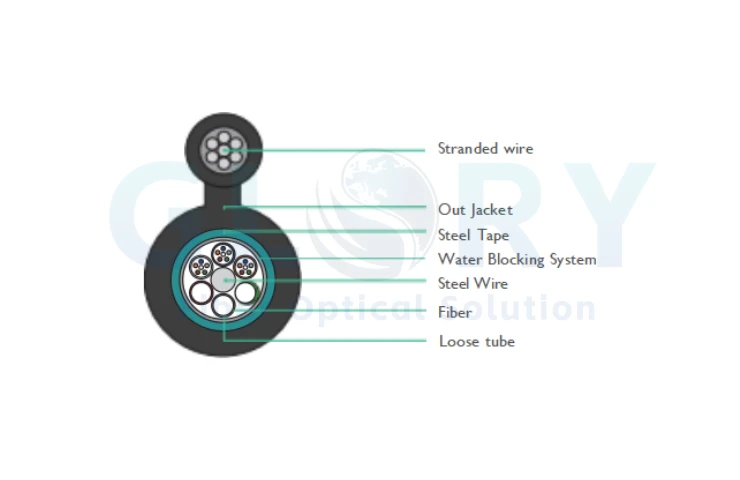

GYTC8S is also called the figure 8 cable because of its structure looks like the figure 8 . We supply GYTC8S fiber Cables from 2-fiber type to 144-fiber type.
- Product Introduction
GYTC8S Outdoor Fiber Optic Cable
Ideal for long-haul communications and LANs requiring superior crush and tensile resistance.
Description
GYTC8S Outdoor Cable is an outdoor optical cable specifically designed for air applications. This type of cable configuration ranges from 2 to 144 optical fibers, featuring a robust structure and wire strength components, ensuring excellent tensile strength and durability in outdoor environments.
Key Features
The GYTC8S cable adopts an advanced water-blocking system, significantly enhancing its waterproof capacity and protecting the optical fiber core from moisture damage.
Its corrugated steel band reinforcement combined with a polyethylene (PE) outer sheath provides excellent compressive resistance and mechanical protection. The design of this cable ensures reliable performance for aerial installation and has excellent resistance to environmental pressure.
Applications
GYTC8S Outdoor Cable is ideally suited for long-haul communication systems and aerial network deployments. It finds extensive application in Local Area Network (LAN) communications, CATV systems, and computer network infrastructures. The GYTC8S is particularly valuable in junction communication systems where reliable aerial installation is required. Its durable construction makes it suitable for various outdoor settings, providing stable connectivity for telecommunications providers, internet service providers, and network infrastructure developers.
Industry application scenarios and solutions
Technical Specifications
|
Cable type |
OD(mm) |
Nominal Weight(kg/km) |
Max.tensile Strenght(N) |
Crush Resistance (N/100MM) |
Min.Bending Radius(mm) |
|||
|
Short-term |
Long-term |
Short-term |
Long-term |
Dynamic |
Static |
|||
|
GYTC8S-12-60XX |
(11.0±0.3)×(20.8±0.5) |
212.0 |
4950 |
2500 |
2000 |
1000 |
20D |
15D |
|
GYTC8S-62-72XX |
(11.0±0.3)×(20.8±0.5) |
248.0 |
4950 |
2500 |
2000 |
1000 |
20D |
15D |
|
GYTC8S-74-96XX |
(11.0±0.3)×(20.8±0.5) |
285.0 |
4950 |
2500 |
2000 |
1000 |
20D |
15D |
|
GYTC8S-98-120XX |
(11.0±0.3)×(20.8±0.5) |
332.0 |
4950 |
2500 |
2000 |
1000 |
20D |
15D |
|
GYTC8S-122-14XX |
(11.0±0.3)×(20.8±0.5) |
397.0 |
4950 |
2500 |
2000 |
1000 |
20D |
15D |
|
Storage/Working temperature(℃) |
-40~+70 |
|||||||
Note: XX is fiber optic model and D is the diameter of optical cable.
