Fiber Optic Outdoor Cable
Model:GYXTS Fiber Optic Outdoor Cable

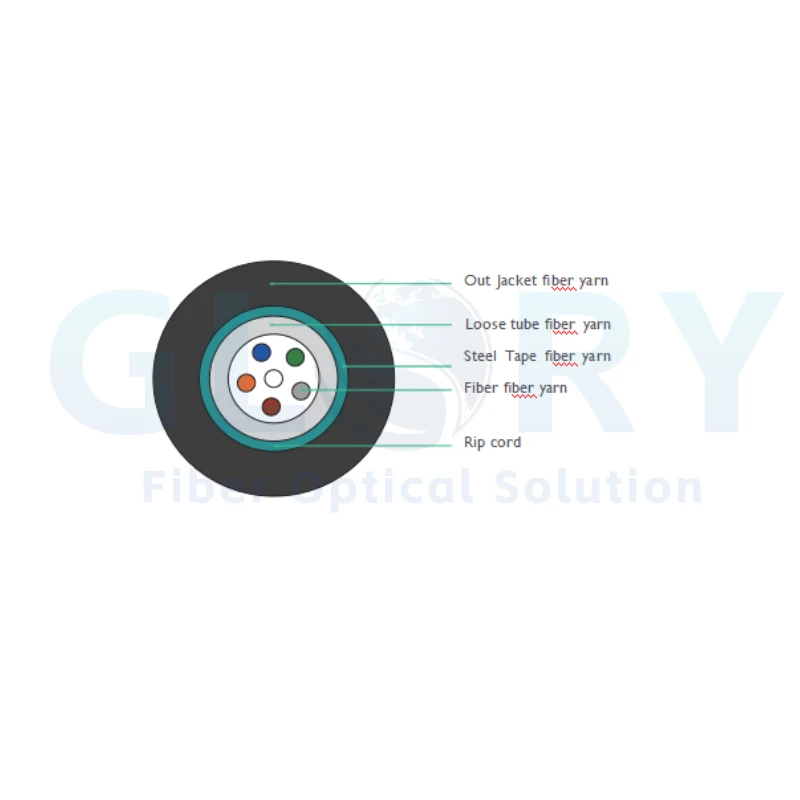

GYXTS cable structure is to insert a fiber loose tube, made of high modulus
plastic it external wire winding layers of double-sided plastic corrugated steel belt longitudinal packaging.as well as the extrusion of PE fiber optic cable outer sheath formation.
- Product Introduction
GYXTS Outdoor Cable
GYXTS Fiber Optic Outdoor Cable is a rugged outdoor optical cable specially designed for harsh environments. This cable adopts a central loose tube structure made of high modulus PBT plastic, with waterproof compounds filled inside to ensure that the optical fibers are effectively protected.
The tube is surrounded by phosphated steel wire reinforcement and corrugated steel tape armor, providing exceptional tensile strength and resistance to crushing.Finally, the entire cable structure is wrapped in an UV-resistant polyethylene (PE) outer sheath, a design that ensures long-term durability and reliability under harsh outdoor conditions.
Features
The GYXTS Fiber Optic Outdoor Cable is designed to ensure high reliability and streamlined installation processes. Its exceptional mechanical strength and temperature stability are achieved through precise management of fiber excess length within the central loose tube.
A corrugated steel armoring layer offers robust resistance to crushing forces, various mechanical impacts. The compact structural design, facilitates efficient handling and deployment during installation. An externally applied polyethylene (PE) sheath provides substantial protection against ultraviolet radiation, extreme thermal conditions, and environmental corrosion. These combined features contribute to an extended operational service life, typically surpassing 25 years under various outdoor application scenarios.
Comprehensive Application Scenarios
This cable type is part of a comprehensive family of optical fiber solutions that includes central tube cables, stranded type cables, nonmetallic cables, and specialized FTTH drop cables.
Ideal for indoor distribution systems in various environments
01
Suitable for communication equipment services
02
Appropriate for local area network systems and subscriber network systems
03
Can be used in vertical wiring within buildings, particularly in high-rise structures and buildings with high-density subscribers
04
Technical parameters
|
Cable type |
OD(mm) |
Nominal Weight(kg/km) |
Max.tensile Strenght(N) |
Crush Resistance (N/100MM) |
Min.Bending Radius(mm) |
|||
|
Short-term |
Long-term |
Short-term |
Long-term |
Dynamic |
Static |
|||
|
GYXTS-2-24XX |
8.0±0.2 |
60.0 |
1000 |
500 |
1000 |
500 |
20D |
15D |
|
Storage/Working temperature(℃) |
-20~+60 |
|||||||
Note: XX is fiber optic model and D is the diameter of optical cable.
