Ftth Optical Fiber Cable
Model: 1 Core Indoor LSZH FTTH Optical Fiber Cable
Fiber: Single Mode types G652D / G657A1 / G657A2
- Product Introduction
1 Core Indoor FTTH Optical Fiber Cable
FTTH optical fiber cable is commonly used in Fiber to the Home (FTTH) projects. It comes in two types: for indoor use and for outdoor use. The fiber optic core(s) are positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) rods or steel wires are placed on either side. The cable is sheathed in a black or white LSZH (Low Smoke Zero Halogen) or PVC (Polyvinyl Chloride) jacket. The typical self-supporting bow-type drop fiber optic cable incorporates GJXFH/GJXH cable construction plus an additional strength member (steel wire or stranded steel wire).
Characteristics of FTTH Fiber Optic Cable:
• Fiber-to-the-home broadband connections promise the next.
• Good ultra violet radiation resistant property.
• Generation in connectivity to consumers.
Application for Ftth Fiber Cable:
• FTTX (FTTH, FTTA, FTTB, FTTC, FTTO…
• Adopted to Outdoor distribution.
• Long distance and local area network communication
• Suitable for aerial, pipeline laying method.
Specificationss:
|
Cable Count |
Out sheath |
Weight |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage |
|||
|
(MM) |
(KG) |
short term |
long term |
short term |
long term |
short term |
long term |
(℃) |
|
|
1 |
3.1*2.0 |
8 |
600 |
200 |
1000 |
300 |
20D |
10D |
40 |
|
Optical Characteristics: |
||||
|
Fiber Type |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
|
A1b:62.5/125 |
||||
|
Singlemode |
G.652(A,B,C) |
B1.1: Conventional fiber |
||
|
G.652D |
B2: Zero dispersion shifted |
|||
|
G.655 |
B1.2: Cut-off wavelength shifted |
|||
|
G.657(A1,A2 ,B3) |
B4: Main technical data for positive dispersion shifted single-mode fiber |
|||

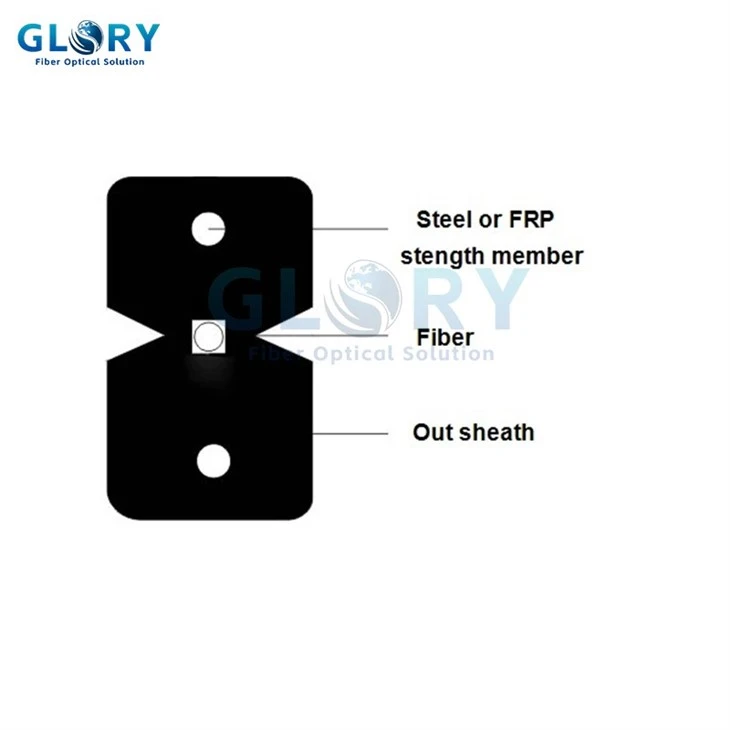

Structure of 1 Core Ftth Optical Fiber Cable:

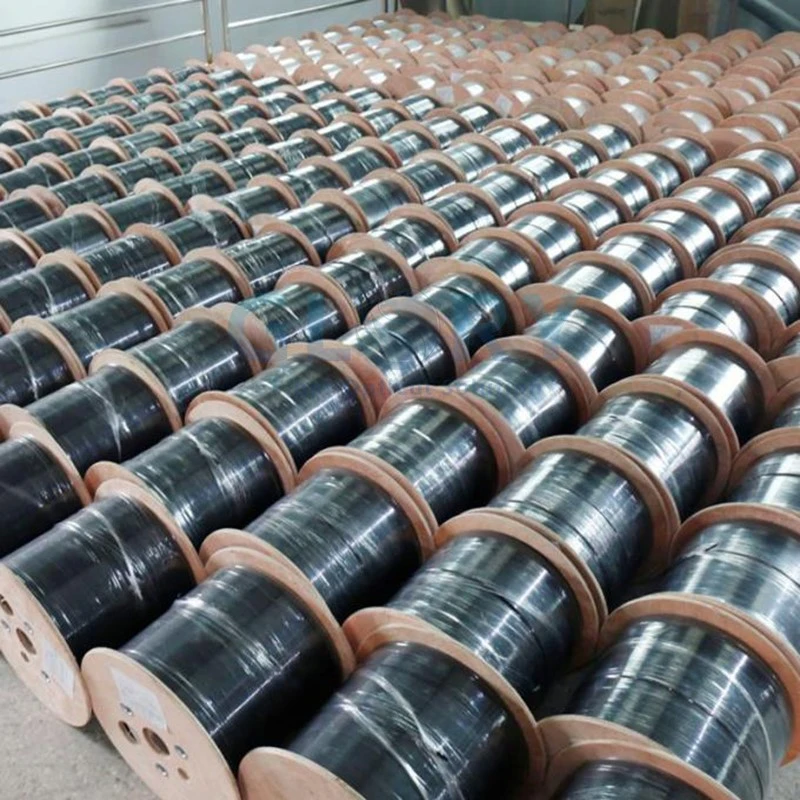

Packing:
