Ftth Fiber Cable
Item: FTTH Fiber Cable FTTH ROC Dielectric Flat Drop Cables 3.0x5.4mm
Toneable FTTH Fiber Cable is ideal for drop applications, offering ease of access as well as easy installation. Compact and robust design provides ease of handling and also reduces transportation and storage costs.
- Product Introduction
ROC Toneable FTTH Fiber Cable with Fast Access Technology provides a more efficient, craft-friendly cable preparation unparalleled by traditional flat drop cables. The innovative Fast Access Technology design simplifies removal of the cable jacket resulting in up to 55 percent faster fiber access time than traditional drop cables. This technology improves ease of use because no special tools are needed. The FTTH Fiber Cable design is backward compatible for easy connection or splicing. Optimized for both field-and-factory termination processes, the compact design allows for easier handling in the field, reduces slack storage requirements and improves transportation and storage costs. The toneable version allows for easy detection of buried cables with a toning conductor.
Features for FTTH Fiber Cable:
- Saves time and reduces cost
- Ease to operate
- Fast connection and splicing
- Retains industry standard hardware compatibility such as wedge clamps
- Eliminates bonding and grounding requirements
- Improves ease of handling and installation; reduces transportation and storage costs

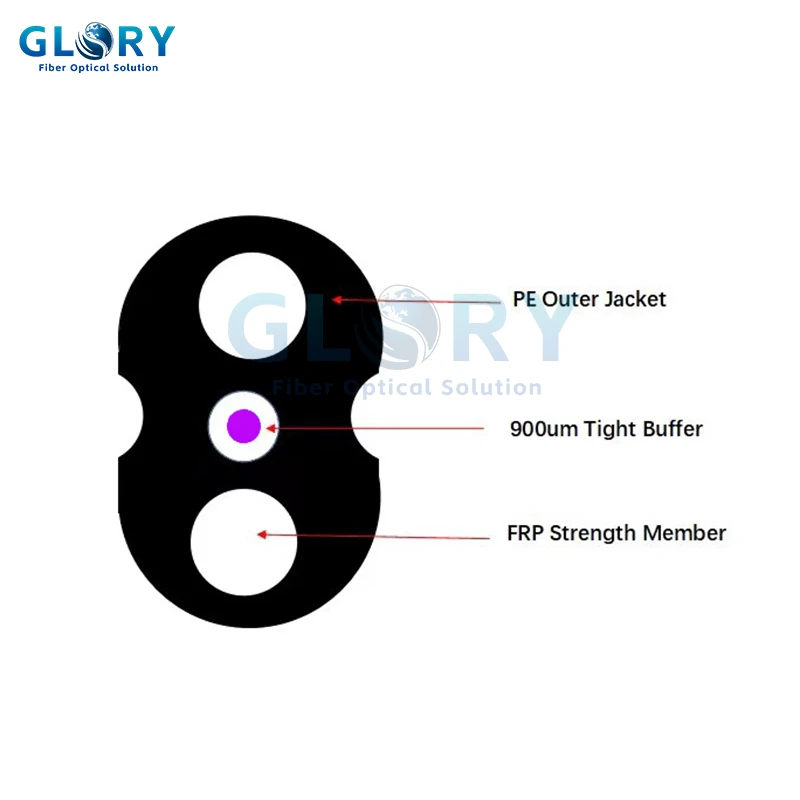

FTTH Fiber Cable Structures:
|
Tight Buffer Fiber Type |
|
|
Single Mode Fiber |
G657A1 G657A2 |
|
Material |
PVC |
|
Color |
Blue |
|
Diameter |
0.9±0.05mm |
|
Number |
1 Root |
|
Strength Member |
|
|
Materials |
FRP-Glass fiber reinforced plastic rods |
|
Color |
White |
|
Diameter |
1.2±0.05mm |
|
Number |
2 Root |
|
Outer Sheath |
|
|
Material |
PE-Polyethylene |
|
Color |
Black |
|
Diameter |
3.0*5.4±0.2mm |
|
Thickness |
0.85*0.50±0.2mm |
|
Sheath Marking |
|
|
Print Color |
White |
|
Print Method |
INK-Jet |
Specifications of FTTH Fiber Cable:
|
Tensile Properties |
Index |
|
Tensile Strength Long Term |
300N |
|
Tensile Strength Short Term |
1000N |
|
Environmental Conditions |
Index |
|
Storage temperature Range |
-40-70℃ |
|
Install temperature Range |
-0-70℃ |
|
Operating temperature Range |
-40-70℃ |
|
Referred Standard ITU/T G.657A |
EN-60974-1-2-E1, EN-60974-1-2-E3 |
|
Packaging |
Index |
|
Length and Packaging |
2000m/Plywood Reel |
|
Wooden Drum |
500x200x410mm |
|
Carton Size |
510*510*430mm |
|
Net Weight |
38.0kg/2km |
|
Gross Weight |
About 50.0kg/box |
