Optical Fiber Patch Panel
Model:Optical Fiber Patch Panel
• Dimensions: 482 * 260 * 1U/2U/3U/4U/6U/8U
• Material: Cold-rolled steel plate
• Sheet Thickness: 1.2mm
• Surface Treatment: Overall electrostatic spraying
- Product Introduction

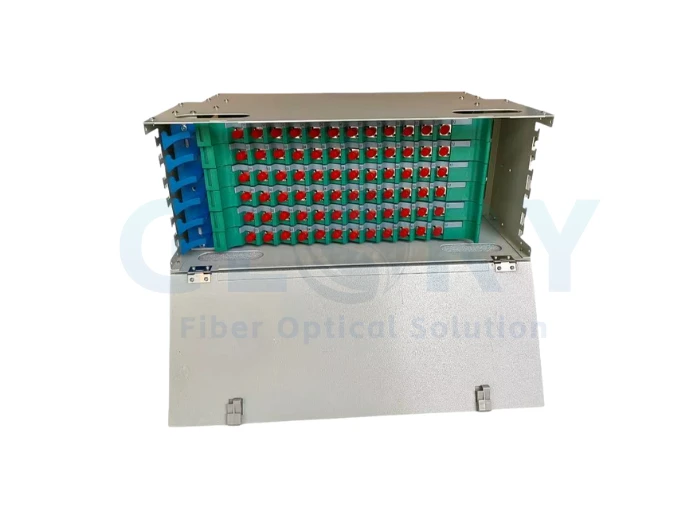

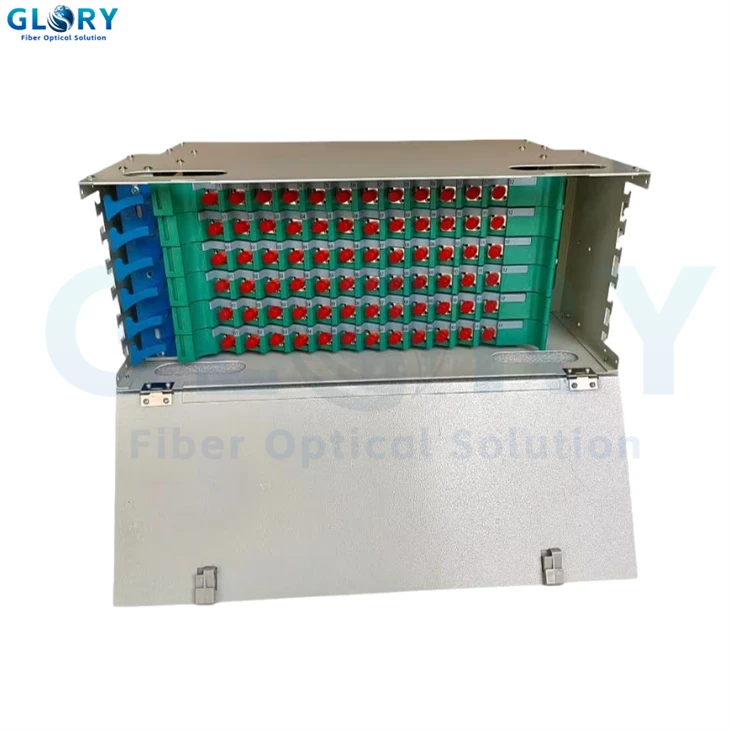

The GL-ODF Fiber Optic Patch Panel is a high-performance solution designed for the termination and distribution of backbone optical cables at central offices in fiber optic communication systems.
This professional-grade ODF (Optical Distribution Frame) enables convenient connection, allocation, and adjustment of optical fiber lines, serving as a critical patching and connection device between optical cables and optical communication equipment.
Technical Specifications
| Dimensions | 482 * 260 * 1U/2U/3U/4U/6U/8U |
|---|---|
| Material | Cold-rolled steel plate |
| Sheet Thickness | 1.2mm |
| Surface Treatment | Overall electrostatic spraying |
| Installation Standard | 19-inch rack compatible |
| Fiber Capacity | 12 to 288 fibers (depending on model) |
Key Features & Benefits
Side Cable Entry with Front Operation
Designed for efficient cable management with side entry and fully front-side operation, simplifying installation and maintenance procedures.

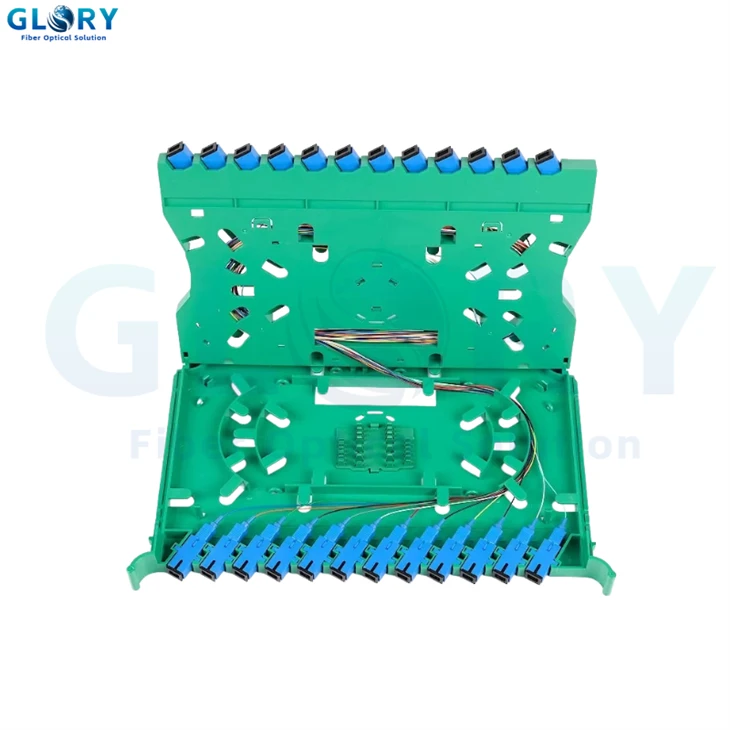

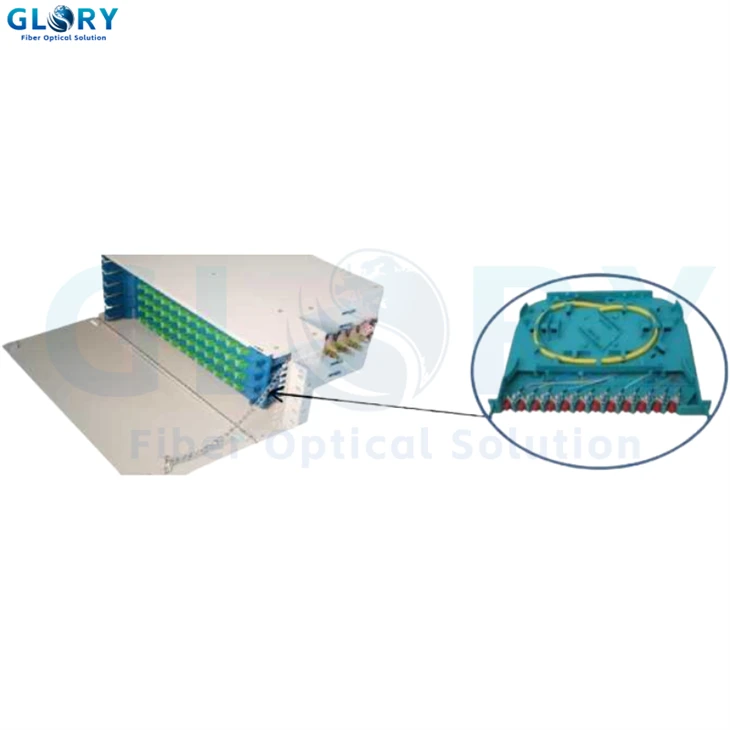

Modular Structure
Adjustable fusion splicing and distribution unit combinations provide flexibility to accommodate various project requirements and future expansions.
Snap-in Adapter Installation
Quick and secure installation for FC, SC, and ST adapters without specialized tools, reducing installation time and complexity.
30-Degree Angled Adapters
Front panel adapters angled at 30 degrees ensure proper bending radius for patch cords and prevent potential laser radiation hazards.
Fiber Protection
Reliable fiber stripping, protection, and fixation devices maintain fiber integrity and minimize signal loss throughout the system lifespan.
Optimized Bend Radius
Guarantees a bending radius greater than 40mm for fibers and cables at any position, preserving optical performance and longevity.
Ordering Guide
| Type | Size(mm) | Capacity(core) (SC Simplex or LC duplex) | Weight(kg) | Packing No.(PC) |
|---|---|---|---|---|
| GL-ODF-12 | 482 * 260 * 1U | 12 | 3.5 | 6 |
| GL-ODF-24 | 482 * 260 * 2U | 24 | 4.6 | 4 |
| GL-ODF-48 | 482 * 260 * 3U | 48 | 6.3 | 4 |
| GL-ODF-72 | 482 * 260 * 4U | 72 | 8 | 2 |
| GL-ODF-96 | 482 * 260 * 6U | 96 | 12.6 | 2 |
| GL-ODF-144 | 482 * 260 * 8U | 144 | 15.4 | 1 |
Standard Configuration
- Mounting Ears: 2 pcs
- Integrated Module Fiber Splitter: 1~12 pcs (configurable as required)
- Integrated Module Handle: 1~12 pcs (configurable as required)
- Screws (M3 * 8): 8 pcs (for mounting ears)
- Fusion Splicing Sleeves (12 fibers per sleeve): 1~12 packs (configurable as required)
- Ribbon Protective Tube: 1~12 meters (configurable as required)
Application Areas
The GL-ODF Fiber Optic Patch Panel is engineered to meet the rigorous demands of modern optical communication networks. Its versatile design makes it suitable for various applications including FTTH (Fiber to the Home) networks, campus backbones, and metropolitan area networks where reliable fiber management is essential.
With its modular approach and scalable capacity options, the GL-ODF series supports network growth and reconfiguration without requiring complete system overhauls, providing excellent long-term value for network operators and installers.
